(888) 312-8812 Login SignupRAYBESTOS 76561 Raybestos Specialty - Truck Brake Rotor
$7599
Limited availability at this price!
1 Day Lead Time
Get it by Thursday, Jul 30
RAYBESTOS 76561 Part Description
Manufacturer
Product Description

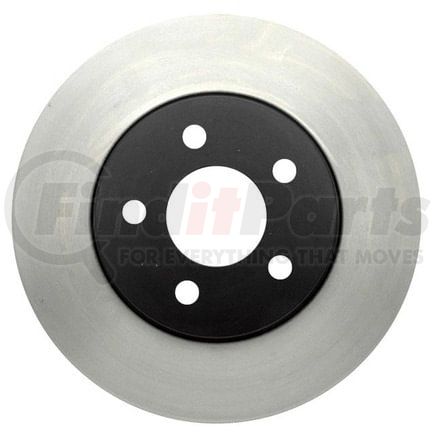

Raybestos Specialty - Truck Brake Rotor
Application Summary
2000-1996 Dodge Grand Caravan Front, 2000-1996 Dodge Caravan Front, 2000-1996 Chrysler Town & Country Front, 2000-1996 Plymouth Grand Voyager Front, 2000-1996 Plymouth Voyager Front, 2000 Chrysler Grand Voyager Front
Features & Benefits
- OE Fit, Form, and Function
- Our vehicle-specific design matches OE fit, form and function, providing ultimate strength and performance
- Cooling Vanes
- We dedicate time to match the cooling vanes on our Specialty rotors to OE designs, ensuring: Optimal cooling Reduced fade Less noise Increased pad life
- Coating
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0® rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0(R) rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- SAE Standard for Tensile Strength
- Our rotors follow SAE standards for tensile strength, hardness, and iron grade, providing structural integrity and maximum service life
- Turned Finish
- A turned finish provides an excellent surface for the pads to engage with to ensure a smooth and effective stop right out of the box
RAYBESTOS 76561 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.4 IN |
| Center Hole Diameter | 60.95 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.88 IN |
| Discard Thickness | 22.35 MM |
| Harmonize Code | 8708.30.5030 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 3.93 IN |
| Mounting Bolt Hole Circle Diameter | 99.8 MM |
| Mounting Bolt Hole Diameter | 0.548 IN |
| Mounting Bolt Hole Diameter | 13.9 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.945 IN |
| Nominal Thickness | 24 MM |
| Outside Diameter | 10.09 IN |
| Outside Diameter | 256.3 MM |
| Overall Height | 1.5 IN |
| Overall Height | 38.1 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00030999966490 |
RAYBESTOS 76561 Cross References
| Brand | Part Number |
|---|---|
| 29546163, 30999966490 | |
| ADVANCE AUTO PARTS | 145063, YH145063, YH145063C, YH145063P |
| AMERICAN REMANUFACTURED | 789-40034, 89-40034 |
| AUTOPART INTERNATIONAL | 25362 |
| AUTOSPECIALTY | AR8734, AR8734E |
| AUTOXTRA | 125483, 8076561, AX5371 |
| AUTOZONE | 5371, 5371B, 5371DG, 5371DL, DL5371 |
| BENDIX | 145063 |
| BOSCH | RBR5371 |
| BRAKE HEADQUARTERS | BR53302 |
| BRAKEBEST | 16010149, 76561, 76561FZN, 76561R, 76561RGS, 81-125483, BD125483 |
| BREMBO | 09.7777.10, 27014, 09777711, 09777710 |
| Bridgestone | 7002427 |
| CALIFORNIA DRUM & ROTOR | 125483 |
| CENTRIC | 120.67034, 121.67034, 125.67034, 126.67034SL, 126.67034SR, 127.67034L, 127.67034R, 320.67034, 320.67034F |
| CHRYSLER | 04683259, 4683259 |
| CONTINENTAL-CONTITECH | CW24704 |
| Casting Numbers | 210271-C, 211147-C, 325178, 53711 |
| Centric Parts | 120.67034, 121.67034, 125.67034, 126.67034SL, 126.67034SR, 127.67034L, 127.67034R, 320.67034, 320.67034F |
| DELPHI | RB223 |
| DURA CORP | BR5371 |
| DuraGo | BR5371 |
| EIS BRAKES | D17815 |
| EUROROTOR | 53100 |
| GREN | 602602 |
| GUARDIAN | 52-125483 |
| MAGMA PRODUCTS | PSR145139 |
| MIDAS | BR1991 |
| MIGHTY DISTRIBUTING SYSTEM | 5371 |
| MONROE BRAKES | BD125483 |
| MOPAR | V5013259 |
| NEOTEK | 107040GF |
| NEWTEK AUTOMOTIVE | 5371 |
| Newtek Automotive USA | 5371 |
| PARTS MASTER | P125483 |
| PROMAX | 14-5371 |
| PRONTO | BR5371 |
| QUALIS | 5371 |
| QUALITEE INTERNATIONAL | 64-91-990 |
| QUALITY BRAND | 5371 |
| QUINTON HAZELL | BDC5326 |
| Qualis | 6491990 |
| STANDARD ROTORS AND DRUMS | 5371 |
| THE UNIVERSAL GROUP | 102151 |
| TRUSTAR | 491990, R91990 |
| TRW | 4882 |
| UAP | 5371 |
| Universal | 102151 |
| VAICO | V3380005 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X50873 |
| WABCO | PS125483 |
| WABCO - Archived | PS125483 |
| WAGNER | BD125483, BD125483E |
| WAGNER BRAKE | BD125483, BD125483E |
| WINHERE | 442172, YH2172 |
| WORLDPAC | 1407-25362 |
RAYBESTOS 76561 Fits Vehicles
- Plymouth Voyager (1996-2000)
- Plymouth Grand Voyager (1996-2000)
- Dodge Grand Caravan (1996-2000)
- Dodge Caravan (1996-2000)
- Chrysler Voyager (1995-1997, 1999-2000)
- Chrysler Town & Country (1996-2000)
- Chrysler Grand Voyager (1995-2002)
