RAYBESTOS 76466 Part Description
Manufacturer
Product Description

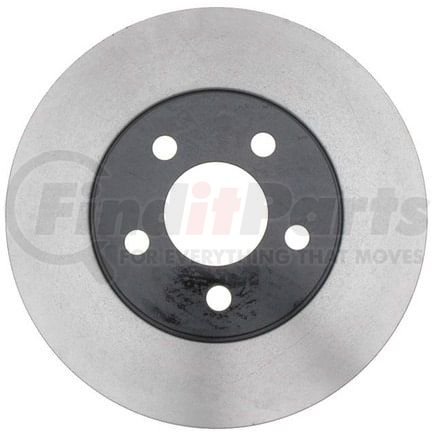

Raybestos Specialty - Street Performance Brake Rotor
Application Summary
1999-1995 Dodge Neon Front, 1999-1995 Plymouth Neon Front
Features & Benefits
- Application Specific Enhanced Iron
- Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Cooling Vanes
- The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
- Application Specific Coating
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
- Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
- Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
- Turned Finish
- Turned finish minimizes noise and improves responsiveness for smoother stops.
- S-Groove Slot
- Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
- Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.
RAYBESTOS 76466 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.41 IN |
| Center Hole Diameter | 61.2 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.724 IN |
| Discard Thickness | 18.4 MM |
| Harmonize Code | 8708.30.5030 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 3.93 IN |
| Mounting Bolt Hole Circle Diameter | 99.8 MM |
| Mounting Bolt Hole Diameter | 0.55 IN |
| Mounting Bolt Hole Diameter | 13.95 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.79 IN |
| Nominal Thickness | 20.05 MM |
| Outside Diameter | 10.12 IN |
| Outside Diameter | 257.05 MM |
| Overall Height | 1.5 IN |
| Overall Height | 38.1 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00030999946492 |
RAYBESTOS 76466 Cross References
| Brand | Part Number |
|---|---|
| 29502097, 30999946492 | |
| ADVANCE AUTO PARTS | 145023, YH145023 |
| AMERICAN REMANUFACTURED | 789-32039, 89-32039 |
| AUTOPART INTERNATIONAL | 1407-25363, 25363 |
| AUTOSPECIALTY | AR8339, AR8339E |
| AUTOXTRA | 8076466 |
| AUTOZONE | 5359, 5359B, DL5359 |
| BENDIX | 145023 |
| BOSCH | 16010167, RBR5359 |
| BRAKE HEADQUARTERS | BR53293 |
| BRAKE PRO | 4615359 |
| BRAKEBEST | 16010167, 76466, 76466R, 76466RGS, 81-125414, BD125414 |
| BREMBO | 09.8261.85, 27088 |
| Bridgestone | 7000939 |
| CALIFORNIA DRUM & ROTOR | 125414 |
| CENTRIC | 120.63039, 120.63039CRY, 121.63039, 125.63039, 126.63039CSL, 126.63039CSR, 126.63039SL, 126.63039SR, 127.63039CL, 127.63039L, 127.63039R, 128.63039L, 128.63039R, 227.63039L, 227.63039R, 320.63039, 320.63039F |
| CHRYSLER | 04509552, 04509718, 4509552, 4509718 |
| CONTINENTAL-CONTITECH | CW20700 |
| Casting Numbers | 210849-C, 325171, 53591 |
| Centric Parts | 120.63039, 120.63039CRY, 121.63039, 125.63039, 126.63039CSL, 126.63039CSR, 126.63039SL, 126.63039SR, 127.63039CL, 127.63039L, 127.63039R, 128.63039L, 128.63039R, 227.63039L, 227.63039R, 320.63039, 320.63039F |
| DELPHI | RB222 |
| DURA CORP | BR5359 |
| DuraGo | BR5359 |
| EIS BRAKES | D17719 |
| EUROROTOR | 53210 |
| GREN | 614202 |
| GUARDIAN | 52-125414 |
| MIDAS | BR1920 |
| MIGHTY DISTRIBUTING SYSTEM | 5359 |
| MONROE BRAKES | BD125414 |
| NEWTEK AUTOMOTIVE | 5359 |
| Newtek Automotive USA | 5359 |
| Omnicraft | QBRR540 |
| PARTS MASTER | P125414 |
| PROMAX | 14-5359 |
| PRONTO | BR5359 |
| QUALIS | 5359 |
| QUALITEE INTERNATIONAL | 64-91-650 |
| QUALITY BRAND | 5359 |
| QUINTON HAZELL | BDC4789 |
| STANDARD ROTORS AND DRUMS | 5359 |
| THE UNIVERSAL GROUP | 103011 |
| TRUSTAR | 491650, R91650 |
| TRW | 4503 |
| UAP | 5359 |
| Ultra Brake | 53210 |
| Universal | 103011 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X50863 |
| WABCO | PS5359 |
| WABCO - Archived | PS5359 |
| WAGNER | BD125414E, BD125414 |
| WAGNER BRAKE | BD125414 |
| WINHERE | 442168, YH2168 |
| Wagner Brake | BD125414E |
RAYBESTOS 76466 Fits Vehicles
- Chrysler Neon (1995-1997)
- Plymouth Neon (1995-1999)
- Dodge Neon (1995-1999)
