RAYBESTOS 96693R - Brake Parts Inc Raybestos R-Line Disc Brake Rotor

Part Number
96693R
Manufacturer
RAYBESTOS
Description

Brake Parts Inc Raybestos R-Line Disc Brake Rotor

details

NO STOCK AVAILABLE

We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.

Sometimes we may have similar parts for sale, click the button below to see if anything matches.

Search Alternatives

RAYBESTOS part description

California Proposition 65 Warning California Proposition 65 Warning

WARNING: This product can expose you to chemical which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov. (Read more)

Product Description

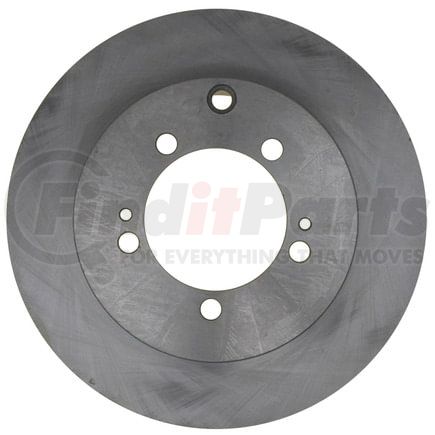

Raybestos R-Line Brake Rotor

Application Summary

1994-1993 Mitsubishi Diamante Rear

Product Attributes

ABS Tone Ring Included No
Center Hole Diameter 3.543 IN
Center Hole Diameter 90 MM
9565 Drum-In-Hat
Discard Thickness 0.724 IN
Discard Thickness 18.4 MM
Harmonize Code 8708.30.5030
Mounting Bolt Hole Circle Diameter 4.5 IN
Mounting Bolt Hole Circle Diameter 114.3 MM
Mounting Bolt Hole Diameter 0.487 IN
Mounting Bolt Hole Diameter 12.35 MM
Mounting Bolt Hole Quantity 5
Nominal Thickness 0.787 IN
Nominal Thickness 20 MM
Outside Diameter 11.18 IN
Outside Diameter 283.95 MM
Overall Height 2.587 IN
Overall Height 65.7 MM
Salability Restrictions No
Solid Or Vented Type Rotor Vented
Stud/Lug Hole Quantity 5
UNSPSC Code 25171715

Additional Information

Country of Origin (Primary) CN
UPC 00829352372012

Part Interchanges

RAYBESTOS 96693R Cross Reference

We have 32 alternatives for the 96693R by RAYBESTOS:

Fits Vehicles

  • Mitsubishi Diamante (1993-1994)
