(888) 312-8812 Login SignupRAYBESTOS 980477R Raybestos R-Line Brake Rotor
MSRP: $78.89
$5849
Save $20.40
Limited availability at this price!
In Stock
Get it by Wednesday, Aug 5
RAYBESTOS 980477R Part Description
Manufacturer
Product Description

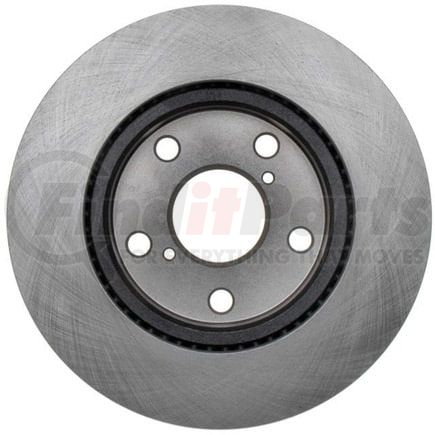

Raybestos R-Line Brake Rotor
Application Summary
2018-2006 Toyota RAV4 Front, 2015-2008 Scion xB Front, 2017-2012 Toyota Prius V Front, 2012-2010 Lexus HS250h Front
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 980477R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.44 IN |
| Center Hole Diameter | 62 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.866 IN |
| Discard Thickness | 22 MM |
| Harmonize Code | 8708.30.5030 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 4.5 IN |
| Mounting Bolt Hole Circle Diameter | 114.3 MM |
| Mounting Bolt Hole Diameter | 0.573 IN |
| Mounting Bolt Hole Diameter | 14.55 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.984 IN |
| Nominal Thickness | 25 MM |
| Outside Diameter | 10.827 IN |
| Outside Diameter | 275 MM |
| Overall Height | 1.819 IN |
| Overall Height | 46.2 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352621264 |
RAYBESTOS 980477R Cross References
| Brand | Part Number |
|---|---|
| BRCK5096, 829352621264 | |
| ADVANCE AUTO PARTS | YH200505, YH200505C, YH200505P |
| AUTOPARTSOURCE | 579645 |
| AUTOXTRA | AX900344 |
| AUTOZONE | 44650, 44650DG, 44650DL, DL44650 |
| Autoxtra | AX900344P |
| BENDIX | PRT5886 |
| BOSCH | 50011309 |
| BRAKEBEST | 50011309, 921039RGS, 980477, 980477FZN, 980477R, 980477RGS |
| BREMBO | 09.B520.10, 09.B520.11 |
| Brembo | 09.B520.21 |
| CENTRIC | 120.44147, 120.44147CRY, 121.44147, 126.44147CSL, 126.44147CSR, 126.44147SL, 126.44147SR, 127.44147CL, 127.44147CR, 127.44147L, 127.44147R, 128.44147CL, 128.44147CR, 128.44147L, 128.44147R, 320.44147, 321.44147 |
| Casting Numbers | 326348 |
| Centric Parts | 120.44147, 120.44147CRY, 121.44147, 126.44147CSL, 126.44147CSR, 126.44147SL, 126.44147SR, 127.44147CL, 127.44147CR, 127.44147L, 127.44147R, 128.44147CL, 128.44147CR, 128.44147L, 128.44147R, 320.44147, 321.44147 |
| DURA CORP | BR31440, BR900344, BR900344-02 |
| DuraGo | 60408, 900344, BR60408, BR900344, BR90034402, BR900344-02 |
| Dynamic Friction Company | 604-76135 |
| MAGMA PRODUCTS | PMR565175 |
| MONROE BRAKES | BD126404 |
| NEWTEK AUTOMOTIVE | 31440 |
| Newtek Automotive USA | 31440 |
| Omnicraft | QBRR96 |
| POWERSTOP | JBR1303EVC |
| PROMAX | 14-31440, 20-31440 |
| PRONTO | BR900344 |
| Parts Master | 126404 |
| QUALIS | 44650 |
| TOYOTA | 435120R010, 4351242040 |
| TRUSTAR | 479645 |
| TopNotch | TN980477GEO |
| UAP | 2031440, 31440 |
| Ultra Brake | TO-6132 |
| WABCO | PS126404 |
| WABCO - Archived | PS126404 |
| WAGNER | BD60232, BD126404E, BD126404 |
| WAGNER BRAKE | BD126404, BD126404E |
| WINHERE | 6620666 |
| WORLDPAC | 1407-80369, 1427-731738 |
| Winhere | 6621039 |
RAYBESTOS 980477R Fits Vehicles
- Toyota Prius V (2012-2018)
- Lexus HS250h (2010-2012)
- Scion xB (2008-2015)
- Toyota RAV4 (2006-2018)
