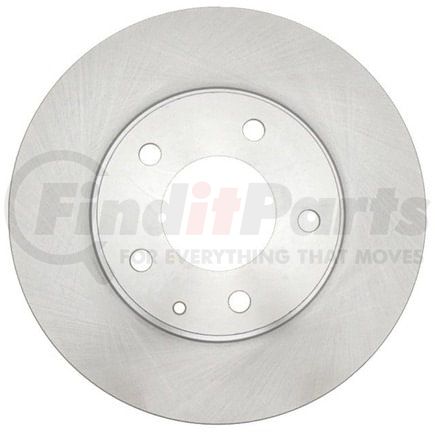

RAYBESTOS 96477R Raybestos R-Line Brake Rotor

★★★★★ (0)

MSRP: $69.06

$59.99

Save $9.07

Limited availability at this price!

In Stock

Get as soon as Tuesday, Nov 24
30-day Return Policy On eligible items Details
Free Ground shipping on orders over $499 details

RAYBESTOS 96477R Part Description

Manufacturer

RAYBESTOS

Product Description

Raybestos R-Line Brake Rotor

Application Summary

2006-2000 Mazda MPV Front, 2000-1995 Mazda Millenia Front

Features & Benefits

  • OE Fit, Form, and Function
  • Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
  • SAE Standard
  • R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
  • Low Initial Lateral Runout and Thickness Variation
  • R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
  • Mill Balanced Edges
  • R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.

RAYBESTOS 96477R Specifications

Product Attributes

ABS Tone Ring IncludedNo
Center Hole Diameter2.84 IN
Center Hole Diameter72.15 MM
Conventional Or Drum-In-Hat Type RotorConventional
Directional or Non-Directional Brake SurfaceNon-Directional
Discard Thickness1.024 IN
Discard Thickness26 MM
Harmonize Code8708.30.5030
MaterialCast Iron
Mounting Bolt Hole Circle Diameter4.5 IN
Mounting Bolt Hole Circle Diameter114.3 MM
Mounting Bolt Hole Diameter0.51 IN
Mounting Bolt Hole Diameter12.95 MM
Mounting Bolt Hole Quantity5
Nominal Thickness1.105 IN
Nominal Thickness28.05 MM
Outside Diameter10.78 IN
Outside Diameter273.8 MM
Overall Height2.01 IN
Overall Height51.05 MM
Salability RestrictionsNo
Solid Or Vented Type RotorVented
Stud/Lug Hole Quantity5
UNSPSC Code25171715

Additional Information

Country of Origin (Primary)CN
Canadian Harmonizing Tariff Code8708309990
Harmonized Tariff Code (HTS)8708305030
UPC00829352371442

RAYBESTOS 96477R Cross References

BrandPart Number
90046087, 829352371442
ADVANCE AUTO PARTS145010, YH145010, YH145010C
AMERICAN REMANUFACTURED789-14054, 89-14054, 89-14066
AUTOPART INTERNATIONAL78645
AUTOSPECIALTYJBR762, JBR762E
AUTOXTRA125430, 8096477, AX31151
AUTOZONE31151, 31151DG
BECK/ARNLEY083-2671
BENDIX145010
BOSCH34010872
BRAKE HEADQUARTERSBR08319
BRAKEBEST34010872, 81-125430, 96477, 96477FZN, 96477R, 96477RGS, BD125430
BREMBO09.6863.10, 09.6863.11, 25454
CALIFORNIA DRUM & ROTOR125430
CENTRIC120.45053, 121.45053, 126.45053SL, 126.45053SR, 127.45053L, 127.45053R, 320.45053, 320.45053F
CONTINENTAL-CONTITECHCW28712
Casting Numbers211044-C, 311511, 325418
Centric Parts120.45053, 121.45053, 126.45053SL, 126.45053SR, 127.45053L, 127.45053R, 320.45053, 320.45053F
DELPHIRB391
DURA CORPBR31151
DuraGoBR31151
EIS BRAKESD17752
EUROROTORMA863
GREN54302
GUARDIAN52-125430
MAGMA PRODUCTSPMR365060
MAZDATY013325X, TY013325XA, T0023325XA
MIDASBR1939
MIGHTY DISTRIBUTING SYSTEM31151
MONROE BRAKESBD125430
N/A120.45060, 121.45060, 126.45060SL, 126.45060SR, 127.45060L, 127.45060R
NAPA BRAKESTSR7895
NEWTEK AUTOMOTIVE31151
Newtek Automotive USA31151
PEP BOYS31151G
PROMAX14-31151
QUALIS31151
QUALITEE INTERNATIONAL64-74-550
QUALITY BRAND31151, Q072
STANDARD ROTORS AND DRUMS31151
THE UNIVERSAL GROUP112401
TRUSTAR474550, R74550
TRWDF7170S
UAP31151
Universal112401
VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURINGX50947
WABCOPS125430
WABCO - ArchivedPS125430
WAGNERBD125430E, BD125430
WAGNER BRAKEBD125430
WINHERE662238, YH2238
WORLDPAC1407-78645
Wagner BrakeBD125430E

RAYBESTOS 96477R Fits Vehicles

  • Mazda MPV (2000-2006)
  • Mazda Millenia (1995-2000)
