(888) 312-8812 Login SignupRAYBESTOS 6045R Raybestos R-Line Brake Rotor
$39.19
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >

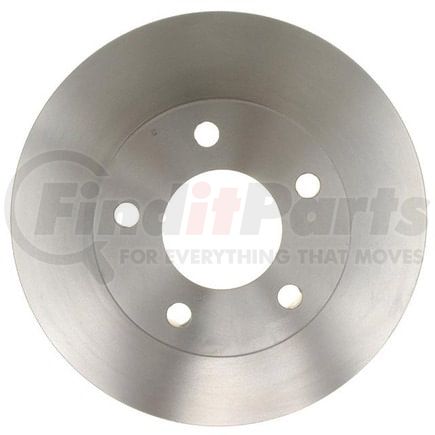

RAYBESTOS 6045R Part Description
Manufacturer
Product Description
Raybestos R-Line Brake Rotor
Application Summary
1979-1975 Ford Granada Rear Right, 1979-1975 Mercury Monarch Rear Right, 1980-1977 Lincoln Versailles Rear Right
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 6045R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.782 IN |
| Center Hole Diameter | 70.65 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 0.895 IN |
| Discard Thickness | 22.75 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 4.5 IN |
| Mounting Bolt Hole Circle Diameter | 114.3 MM |
| Mounting Bolt Hole Diameter | 0.567 IN |
| Mounting Bolt Hole Diameter | 14.4 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.945 IN |
| Nominal Thickness | 24 MM |
| Outside Diameter | 10.675 IN |
| Outside Diameter | 271.15 MM |
| Overall Height | 2.73 IN |
| Overall Height | 69.35 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352365021 |
RAYBESTOS 6045R Cross References
| Brand | Part Number |
|---|---|
| 86639749, 829352365021 | |
| ACDELCO | 177-597 |
| ADVANCE AUTO PARTS | 141121, YH141120, YH141121 |
| AMERICAN REMANUFACTURED | 89-34013 |
| AUTOSPECIALTY | AR8113, AR8113E |
| AUTOZONE | 5434 |
| AXXIS | 085-6340 |
| BENDIX | 141121 |
| BRAKE PRO | 4616045 |
| BRAKEBEST | 6045, 6045R, 6045RGS, BD60440 |
| CALIFORNIA DRUM & ROTOR | 60440 |
| CENTRIC | 120.61013, 121.61013, 126.61013CSR, 126.61013SR |
| CENTURY | 6045 |
| CERTIFIED DIVISION | HR91R |
| Casting Numbers | 210285-C, 326014, 54341, 636045 |
| Centric Parts | 120.61013, 121.61013, 126.61013CSR, 126.61013SR |
| DAYTON WALTHER | D4648, D7221 |
| DURA CORP | BR5434 |
| DuraGo | BR5434 |
| EIS BRAKES | D6045 |
| EUROROTOR | 5434 |
| FORD | D5DZ2C026A |
| KELSEY HAYES | 14648 |
| MCI | 5045 |
| MIDAS | BR1051 |
| MIGHTY DISTRIBUTING SYSTEM | 5434 |
| MOPAR | 3-1439 |
| NEWTEK AUTOMOTIVE | 5434 |
| Newtek Automotive USA | 5434 |
| QUALIS | 5434 |
| QUALITY BRAND | 5434 |
| ROADMATES | 526068 |
| ROCKHILL | 5434 |
| THE UNIVERSAL GROUP | 102340 |
| UAP | 5434 |
| Universal | 102340 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X50168 |
| WAGNER | BD60440 |
| WAGNER BRAKE | BD60440 |
RAYBESTOS 6045R Fits Vehicles
- Mercury Monarch (1975-1979)
- Lincoln Versailles (1977-1980)
- Ford Granada (1975-1979)
