(888) 312-8812 Login SignupRAYBESTOS 9909R Raybestos R-Line Brake Rotor
$5999
Limited availability at this price!
In Stock
Get as soon as Friday, Oct 2
RAYBESTOS 9909R Part Description
Manufacturer
Product Description

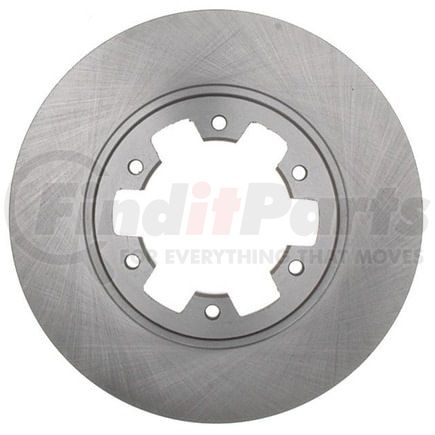

Raybestos R-Line Brake Rotor
Application Summary
2002-1998 Nissan Frontier Front, 1994-1986 Nissan D21 Front, 1997-1995 Nissan Pickup Front, 1995-1987 Nissan Pathfinder Front, 1985 Nissan 720 Front, 2015-2009 Nissan NP300 Front
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 9909R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 3.94 IN |
| Center Hole Diameter | 100.1 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.945 IN |
| Discard Thickness | 24 MM |
| Harmonize Code | 8708.30.5030 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 4.882 IN |
| Mounting Bolt Hole Circle Diameter | 124 MM |
| Mounting Bolt Hole Diameter | 1.25 IN |
| Mounting Bolt Hole Diameter | 31.75 MM |
| Mounting Bolt Hole Quantity | 6 |
| Nominal Thickness | 1.03 IN |
| Nominal Thickness | 26.15 MM |
| Outside Diameter | 10.895 IN |
| Outside Diameter | 276.75 MM |
| Overall Height | 1.545 IN |
| Overall Height | 39.25 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 6 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352373361 |
RAYBESTOS 9909R Cross References
| Brand | Part Number |
|---|---|
| 90126091, 829352373361 | |
| ADVANCE AUTO PARTS | 141447, YH141447, YH141447C |
| AMERICAN REMANUFACTURED | 789-04029, 89-04029 |
| AUTOPART INTERNATIONAL | 78347 |
| AUTOSPECIALTY | JBR360, JBR360E |
| AUTOXTRA | 60860, 809909, AX3214 |
| AUTOZONE | 3214, 3214B, 3214DG, DL3214 |
| BECK/ARNLEY | 080-2186, 083-2186, 083-2722 |
| BENDIX | 141447 |
| BOSCH | 40011041 |
| BRAKE HEADQUARTERS | BR04105 |
| BRAKEBEST | 40011041, 81-60860, 9909, 9909R, 9909RGS, BD60860 |
| BREMBO | 09.5055.10, 25288 |
| Bridgestone | 7095222 |
| CALIFORNIA DRUM & ROTOR | 60860 |
| CENTRIC | 120.42029, 121.42029, 125.42029, 126.42029CSL, 126.42029CSR, 126.42029SL, 126.42029SR, 127.42029CL, 127.42029CR, 127.42029L, 127.42029R, 128.42029CL, 128.42029CR, 128.42029L, 128.42029R, 320.42029, 320.42029F |
| CENTURY | 9307 |
| CONTINENTAL-CONTITECH | CW26742 |
| Casting Numbers | 210356-C, 211527-DP, 32141, 325083, 43179R |
| Centric Parts | 120.42029, 121.42029, 125.42029, 126.42029CSL, 126.42029CSR, 126.42029SL, 126.42029SR, 127.42029CL, 127.42029CR, 127.42029L, 127.42029R, 128.42029CL, 128.42029CR, 128.42029L, 128.42029R, 320.42029, 320.42029F |
| DATSUN/NISSAN | 402063S600, 4020631G00, 4020631G01, 402069Z001, 40206VJ200 |
| DAYTON WALTHER | D7943 |
| DELPHI | RB654 |
| DURA CORP | BR3214 |
| DuraGo | BR3214 |
| EIS BRAKES | D9053 |
| EUROROTOR | NI447 |
| GIRLING | GR815, GR852 |
| GREN | 32602 |
| GUARDIAN | 52-60860 |
| GUNITE | G16053 |
| INTERBRAKES | NS371V |
| ITM ENGINE COMPONENTS | 1600541 |
| MAGMA PRODUCTS | PMR425080 |
| MCI | 3911 |
| MIDAS | BR1559, BR1760 |
| MIGHTY DISTRIBUTING SYSTEM | 3214 |
| NAPA BRAKES | TSR471 |
| NEWTEK AUTOMOTIVE | 3214 |
| Newtek Automotive USA | 3214 |
| Nissan | 4020631G00, 4020631G01, 402063S600, 402069Z001, 40206VJ200 |
| Omnicraft | QBRR527 |
| PARTS MASTER | P60860 |
| PROMAX | 14-3214 |
| QUALIS | 3214 |
| QUALITEE INTERNATIONAL | 64-76-520 |
| QUALITY BRAND | 3214 |
| ROADMATES | 526601 |
| ROCKHILL | 3214 |
| STANDARD ROTORS AND DRUMS | 3214 |
| THE UNIVERSAL GROUP | 109141 |
| TRUSTAR | 476520, R76520 |
| TRW | DF1965S |
| UAP | 3214 |
| Universal | 109141 |
| VERA | 3404353 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X50470 |
| WABCO | PS60860 |
| WABCO - Archived | PS60860 |
| WAGNER | BD60860 |
| WAGNER BRAKE | BD60860, SB9909 |
| WINHERE | 442114, YH2114 |
| WORLDPAC | 1407-78347 |
RAYBESTOS 9909R Fits Vehicles
- Nissan NP300 (2009-2015)
- Nissan 720 (1985-1986)
- Nissan Pickup (1995-1997)
- Nissan Pathfinder (1987-1995)
- Nissan Frontier (1998-2002)
- Nissan D21 (1986-1994)
