(888) 312-8812 Login SignupRAYBESTOS 96779 Raybestos Specialty - Street Performance Brake Rotor
$3899
Limited availability at this price!
In Stock
Get it by Friday, Jul 10
RAYBESTOS 96779 Part Description
Manufacturer
Product Description

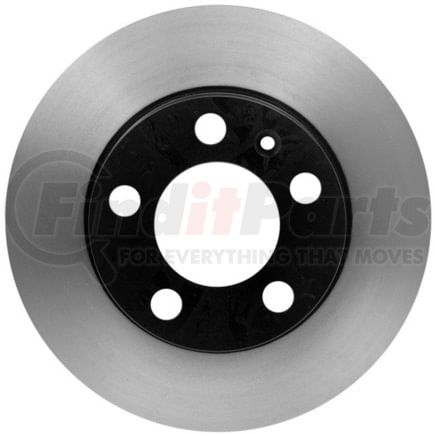

Raybestos Specialty - Street Performance Brake Rotor
Application Summary
2006-1999 Volkswagen Jetta Rear, 2010-1998 Volkswagen Beetle Rear, 2006-1999 Volkswagen Golf Rear, 2010-2007 Volkswagen Golf City Rear, 2006-2000 Audi TT Rear, 2009-2007 Volkswagen Jetta City Rear, 2018,2016-2011 Audi A1 Rear
Features & Benefits
- Application Specific Enhanced Iron
- Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Cooling Vanes
- The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
- Application Specific Coating
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
- Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
- Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
- Turned Finish
- Turned finish minimizes noise and improves responsiveness for smoother stops.
- S-Groove Slot
- Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
- Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.
RAYBESTOS 96779 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.56 IN |
| Center Hole Diameter | 65 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.276 IN |
| Discard Thickness | 7 MM |
| Harmonize Code | 8708.30.5030 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 3.93 IN |
| Mounting Bolt Hole Circle Diameter | 99.8 MM |
| Mounting Bolt Hole Diameter | 0.625 IN |
| Mounting Bolt Hole Diameter | 15.9 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.345 IN |
| Nominal Thickness | 8.75 MM |
| Outside Diameter | 9.13 IN |
| Outside Diameter | 231.9 MM |
| Overall Height | 1.56 IN |
| Overall Height | 39.6 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00747730524870 |
RAYBESTOS 96779 Cross References
| Brand | Part Number |
|---|---|
| 747730524870, 120.33057 | |
| ADVANCE AUTO PARTS | 145238, N1000385409ZIC, YH145238, YH145238C, YH145238P |
| ALTROM IMPORTS | 1J0615601C, A34144 |
| AMERICAN REMANUFACTURED | 89-96045 |
| ATE BRAKE PRODUCTS | SP09123, 409123 |
| AUTOPARTSOURCE | 516230 |
| AUTOSPECIALTY | EBR618, EBR618E |
| AUTOXTRA | 8096779 |
| AUTOZONE | 34144B, 34144DG, 34144, DL34144 |
| BECK/ARNLEY | 083-2751 |
| BENDIX | 145238 |
| BRAKEBEST | 53011381, 81-125642, 96779, 96779FZN, 96779R, 96779RGS, BD125642 |
| BREMBO | 08.7165.10, 08.7165.11, 08.9148.11, 25203 |
| Brembo | 08.7165.1X, 08.7165.75 |
| CALIFORNIA DRUM & ROTOR | 125642, 34144 |
| CENTRIC | 120.33057, 121.33057, 125.33057, 125.33057CRY, 126.33057CSL, 126.33057CSR, 126.33057SL, 126.33057SR, 127.33057CL, 127.33057CR, 127.33057L, 127.33057R, 128.33057CL, 128.33057CR, 128.33057L, 128.33057R, 227.33057L, 227.33057R, 320.33057, 321.33057 |
| CONTINENTAL-CONTITECH | CW09123 |
| Casting Numbers | 211214-C, 325483 |
| Centric Parts | 120.33057, 121.33057, 125.33057, 125.33057CRY, 126.33057CSL, 126.33057CSR, 126.33057SL, 126.33057SR, 127.33057CL, 127.33057CR, 127.33057L, 127.33057R, 128.33057CL, 128.33057CR, 128.33057L, 128.33057R, 227.33057L, 227.33057R, 320.33057, 321.33057 |
| DURA CORP | BR34144, BR3414402 |
| DuraGo | BR34144 |
| GREN | 422801 |
| GUARDIAN | 52-125642 |
| MAGMA PRODUCTS | PSR583035 |
| MIGHTY DISTRIBUTING SYSTEM | 34144 |
| MONROE BRAKES | BD125642 |
| NAPA BRAKES | SDK6064 |
| NEOTEK | 106020GF |
| NEWTEK AUTOMOTIVE | 34144 |
| Newtek Automotive USA | 34144 |
| Omnicraft | QBRR210 |
| PAGID | 355105412 |
| PAGID Racing | 355105412 |
| POWERSTOP | EBR618EVC |
| PROMAX | 14-34144, 20-34144 |
| PRONTO | BR34144 |
| QUALIS | 34144 |
| QUALITEE INTERNATIONAL | 64-16-230 |
| QUALITY BRAND | 34144, Q217 |
| QUINTON HAZELL | BDC4753 |
| STANDARD ROTORS AND DRUMS | 34144 |
| THE UNIVERSAL GROUP | 117235 |
| TRUSTAR | 416230, R16230 |
| TRW | DF2805, DF2805S |
| TopNotch | TN96779GEO |
| UAP | 2034144, 34144 |
| Ultra Brake | VW-250 |
| Universal | 117235 |
| VAICO | V1040048 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X51284 |
| VOLKSWAGEN | 1J0615601, 1J0615601C, 1J0615601N, 1J0615601P, L6QD615601 |
| WABCO | PS125642 |
| WABCO - Archived | PS125642 |
| WAGNER | BD125642, BD125642E |
| WAGNER BRAKE | BD125642, BD125642E |
| WINHERE | 661309, YH1309 |
| WORLDPAC | 1407-78818 |
RAYBESTOS 96779 Fits Vehicles
- Volkswagen Beetle Cabrio (2010-2011)
- Audi TT Quattro (2000-2006)
- Audi A3 Quattro (2004)
- Seat Tarraco (2019-2020)
- Seat Arona (2018-2019)
- Volkswagen Vento (2018-2019)
- Volkswagen Clasico (2011-2015)
- Audi A1 (2011-2016, 2018)
- Volkswagen Jetta City (2007-2009)
- Volkswagen Golf City (2007-2010)
- Volkswagen Polo (2003-2007, 2013, 2017-2018)
- Seat Toledo (2001-2006, 2015-2018)
- Seat Cordoba (2001-2009)
- Seat Ibiza (2002-2007, 2011-2012, 2018-2019)
- Seat Leon (2001-2007)
- Audi A3 (1998-2004)
- Audi TT (2000-2006)
- Volkswagen Jetta (1999-2010)
- Volkswagen Golf (1999-2006, 2010)
- Volkswagen Beetle (1998-2011)
