(888) 312-8812 Login SignupRAYBESTOS 9983R Raybestos R-Line Brake Rotor
MSRP: $55.54
$4999
Save $5.55
Limited availability at this price!
In Stock
Get as soon as Thursday, Sep 24
RAYBESTOS 9983R Part Description
Manufacturer
Product Description

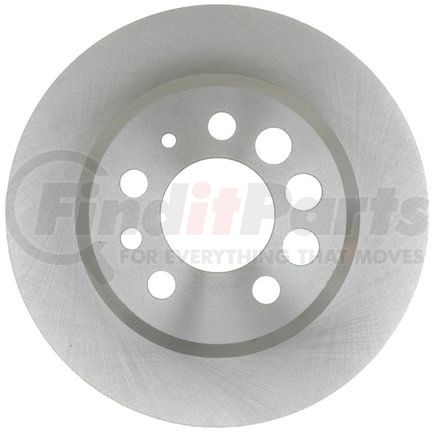

Raybestos R-Line Brake Rotor
Application Summary
1993-1990 Volvo 240 Rear, 1989-1975 Volvo 244 Rear, 1995-1991 Volvo 940 Rear, 1992-1985 Volvo 740 Rear, 1989-1975 Volvo 245 Rear, 1997-1992 Volvo 960 Rear, 1984-1975 Volvo 242 Rear, 1990-1983 Volvo 760 Rear, 1982-1976 Volvo 264 Rear
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 9983R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.677 IN |
| Center Hole Diameter | 68 MM |
| Conventional Or Drum-In-Hat Type Rotor | Drum-In-Hat |
| Discard Thickness | 0.331 IN |
| Discard Thickness | 8.4 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 4.25 IN |
| Mounting Bolt Hole Circle Diameter | 107.95 MM |
| Mounting Bolt Hole Diameter | 4.25 IN |
| Mounting Bolt Hole Diameter | 107.95 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.378 IN |
| Nominal Thickness | 9.6 MM |
| Outside Diameter | 11.04 IN |
| Outside Diameter | 280.4 MM |
| Overall Height | 2.89 IN |
| Overall Height | 73.4 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352373606 |
RAYBESTOS 9983R Cross References
| Brand | Part Number |
|---|---|
| 90126105, 829352373606 | |
| ADVANCE AUTO PARTS | 141199, YH141199, YH141199C |
| AMERICAN REMANUFACTURED | 789-92007, 89-92007 |
| ATE BRAKE PRODUCTS | 410189 |
| AUTOPART INTERNATIONAL | 78026 |
| AUTOSPECIALTY | EBR083, EBR083E |
| AUTOZONE | 3444, 3489, 3489B |
| AXXIS | 085-5860 |
| BECK/ARNLEY | 080-1206, 083-1206 |
| BENDIX | 141199 |
| BOSCH | 52011351, 52011360 |
| BRAKE HEADQUARTERS | BR31501 |
| BRAKE PRO | 4619805 |
| BRAKEBEST | 52011351, 52011360, 81-97305, 9983, 9983R, 9983RGS, BD97305 |
| BREMBO | 08.3441.20, 25072 |
| BrakeBest | 6984RGS |
| Brembo | 08.3441.24 |
| CALIFORNIA DRUM & ROTOR | 97305 |
| CENTRIC | 120.39007, 121.39007, 125.39007, 126.39007CSL, 126.39007CSR, 126.39007SL, 126.39007SR, 127.39007L, 127.39007R, 320.39007, 320.39007C, 320.39007H |
| CENTURY | 9080 |
| CERTIFIED DIVISION | R73 |
| CONTINENTAL-CONTITECH | CW10189 |
| Casting Numbers | 210675-C, 325132, 34441 |
| Centric Parts | 120.39007, 121.39007, 125.39007, 126.39007CSL, 126.39007CSR, 126.39007SL, 126.39007SR, 127.39007L, 127.39007R, 320.39007C, 320.39007, 320.39007H |
| DAYTON WALTHER | D7209 |
| DELPHI | RB292 |
| DURA CORP | BR3489 |
| DuraGo | BR3489 |
| EIS BRAKES | D9080 |
| EUROROTOR | VO906 |
| FRATELLI POLETTI | 81YC |
| GIRLING | GR506 |
| GREN | 482201 |
| GUARDIAN | 52-97305 |
| ITM ENGINE COMPONENTS | 1609303, 1609315 |
| KELSEY HAYES | 14895 |
| LAZORLITE | U73-2168 |
| MAGMA PRODUCTS | PMR603004 |
| MCI | 4051Q |
| MIDAS | BR1141 |
| MIGHTY DISTRIBUTING SYSTEM | 3489 |
| MONROE BRAKES | BD97305 |
| NAPA BRAKES | SDK6884 |
| NEWTEK AUTOMOTIVE | 3489 |
| Newtek Automotive USA | 3489 |
| PARTS MASTER | P97305 |
| PROMAX | 14-3489 |
| QUALIS | 3489 |
| QUALITEE INTERNATIONAL | 64-21-030, 64-21-130 |
| QUALITY BRAND | 3489 |
| QUINTON HAZELL | BDC3121 |
| ROADMATES | 526552, 526666 |
| ROCKHILL | 3444, 3489 |
| STANDARD ROTORS AND DRUMS | 3489 |
| TEKNOMAC | 12087 |
| THE UNIVERSAL GROUP | 144890 |
| TRUSTAR | 421030, 421130, R21030, R21130 |
| TRW | 1674 |
| UAP | 3489 |
| Universal | 144890 |
| VAICO | V9540001 |
| VERA | 3400272 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X50538 |
| VOLVO | 1205782, 12057824, 270736, 2707362 |
| WAGNER | BD97305 |
| WAGNER BRAKE | BD97305, SB9983 |
| WINHERE | 441049, YH1049 |
| WORLDPAC | 1407-78026, 1427-732079 |
| WORLDPARTS | W70-514 |
RAYBESTOS 9983R Fits Vehicles
- Volvo DL (1984)
- Volvo GLE (1984)
- Volvo 960 (1992-1997)
- Volvo 940 (1991-1995)
- Volvo 780 (1987)
- Volvo 745 (1985)
- Volvo 760 (1983-1990)
- Volvo 740 (1985-1992)
- Volvo 265 (1976-1981)
- Volvo 264 (1976-1982)
- Volvo 262 (1976, 1978-1981)
- Volvo 245 (1975-1989)
- Volvo 244 (1975-1989)
- Volvo 242 (1975-1984)
- Volvo 240 (1990-1993)
- Volvo 164 (1975)
