ICON 61721E Part Description
Manufacturer
Product Description

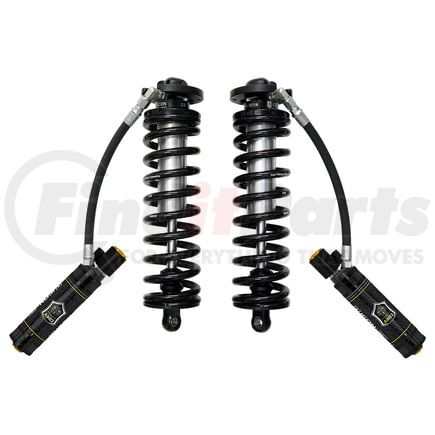

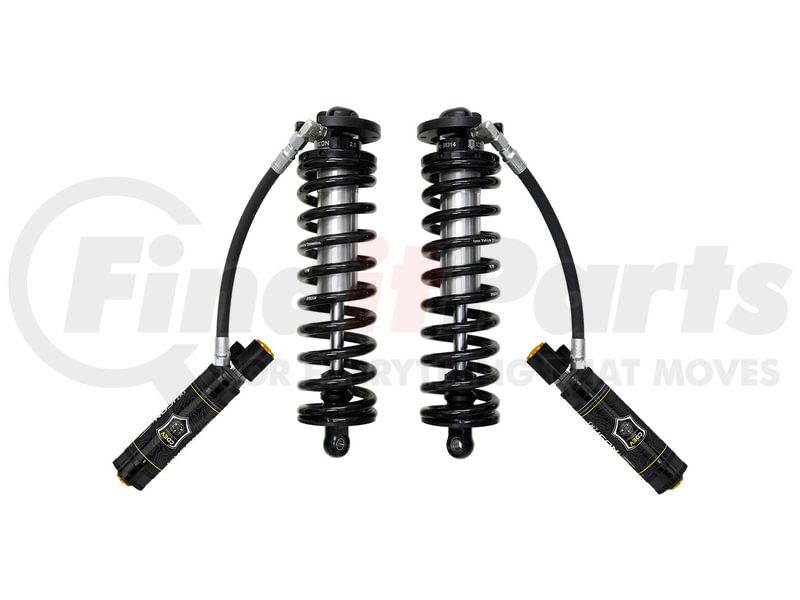

17-25 FSD 4WD 4-5.5" 2.5 VS RR CDEV BOLT IN CO CONVERSION KIT
Features & Benefits
- Bolt-in system fits in OE coil bucket location
- Ride height adjustable coilovers

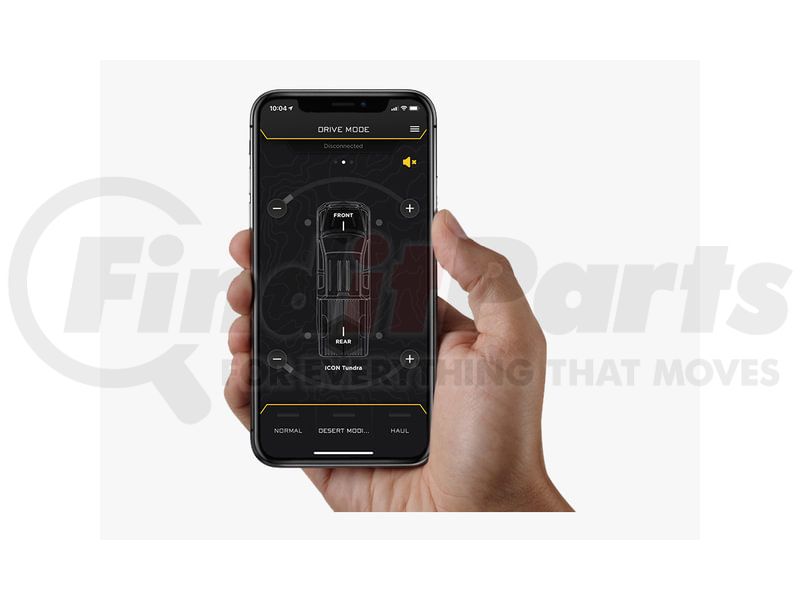

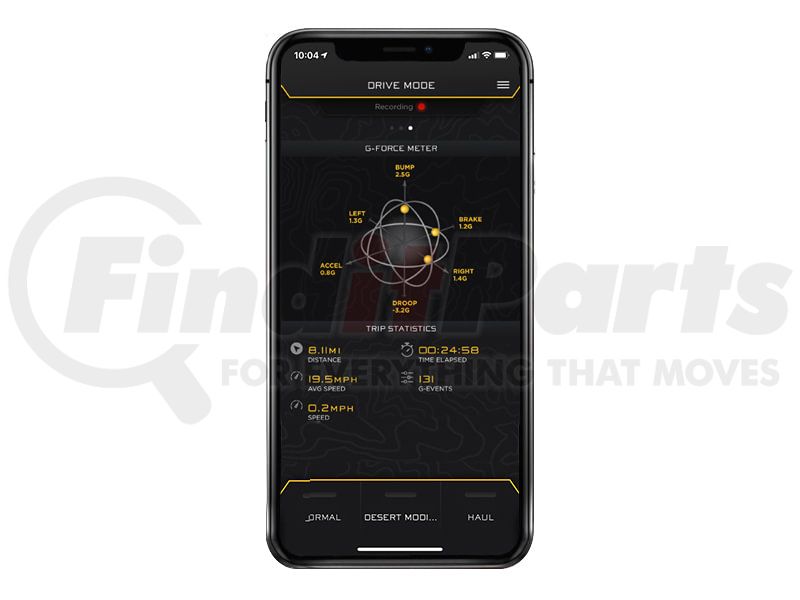

- ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
- Decreased body roll and improved on and off-road ride dynamics
- Vehicle-specific shock valving provides unparalleled ride quality and control
- Coilover conversion allows for addition of optional secondary shocks
- Corrosion resistant CAD plated coilover shock body with 7/8" shaft
- ICON engineered coil springs guaranteed for life against sagging or breakage
- FK Rod End bearings for extended longevity and minimal deflection
- Fully rebuildable and re-tunable
Factory Wheels & Tires Fitment: Yes
17-UP FSD 4WD 4-5.5' 2.5 VS RR CDEV
ICON 61721E Specifications
Product Attributes
| Aap_uda_12 | EA |
| Aap_uda_22 | 1 |
| Aap_uda_4 | 55 |
| Active or Passive Suspension | Active |
| Add-on Part | 611003 - 2.5 RESI DOUBLER MOUNT 7.5" KIT |
| Adjustable Compression | Yes |
| Adjustable Damping | Yes |
| Adjustable Rebound | No |
| Adjustable Ride Height | Yes |
| Assembled | Yes |
| Body Diameter | 2.5 in |
| California Prop 65 Warning | Yes |
| Coil Over Springs Included | Yes |
| Compressed Length | 14.6 IN |
| Cylinder Color | Silver |
| Cylinder Finish | Cadmium Plated |
| Cylinder Material | Steel |
| Damping Adjustment Type | Electronic |
| Damping Type | Oil |
| Dust Shield Included | No |
| Extended Length | 22.56 IN |
| 10107 | 400 PPI |
| Gas Charged | Yes |
| Grade Type | Performance |
| Includes Bump Stop | Yes |
| Internal Construction Type | Single Tube |
| Lower Mount Type | Eyelet |
| Material | Steel |
| Maximum Lift | 6.25 IN |
| Maximum Ride Height Raising Distance | 5.5 IN |
| Minimum Lift | 3.5 IN |
| OEM Wheels & Tires Fitment | Yes |
| Recommended Aftermarket Tires | 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required) |
| Recommended Aftermarket Wheels | ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset |
| Remote Reservoir | Yes |
| Reservoir Style | Remote |
| Self-Leveling | No |
| Service Parts | 191016 - 7.5" FINNED RESI UPGRADE KIT |
| Shaft Diameter | 0.875 IN |
| Shock Absorber Body End Measuring Point | Top of Upper Mount Plate |
| Shock Absorber Rod End Measuring Point | Center of Eylet |
| Spring Color | Black |
| Spring Material | Steel |
| Spring Rate Type | Linear |
| Title | ICON 2017-2025 Ford F-250/F-350 Super Duty 4WD, 4-5.5” Lift, Front, V.S. 2.5 Series Coilover Conversion Kit, Remote Reservoir w/ CDEV |
| Travel Length | 7.96 IN |
| Upper Mount Type | Mounting Plate |
| Valving Type | Digressive |
Additional Information
| Warranty Special | 1 Year-Shock Absorbers; Limited Lifetime-Coil Springs |
| Warranty Special UOM | TX |
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| NAFTA Preference Criterion Code | C |
| UPC | 00840103414447 |
ICON 61721E Fits Vehicles
- Ford F-350 Super Duty (2017-2025)
- Ford F-250 Super Duty (2017-2025)
