CENTRIC 134.76037 - Premium Wheel Cylinder
$8549
MSRP: $127.05
Save: $41.56
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
California Proposition 65 Warning
California Proposition 65 Warning
WARNING: This product can expose you to chemical which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov. (Read more)
Product Description

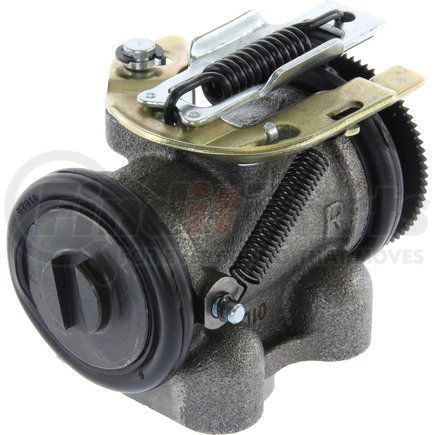

Centric Premium Wheel Cylinder
Application Summary
Chevrolet W4500 Tiltmaster 2002-1997, W5500 Tiltmaster 2002-1999, GMC W4500 Forward 2002-1997, W5500 Forward 2002-1999, Isuzu NPR-HD 2002-1999, NQR 2002-1998
Features & Benefits
- OE style replacement. Highest quality. Includes brass inserts and aluminum castings where applicable
Centric; CentricParts; Centric Parts; Centric Wheel Cylinder; Centric Parts Wheel Cylinder
Product Attributes
| Attachment Type | Bolted |
| Inlet Thread Diameter | 10.000 MM |
| Mounting Method | 4 Bolts |
| Mounting Hole Quantity | 4 |
| Bleeder Screw Included | No |
| Piston Quantity | 2 |
| Bore Diameter | 33.338 MM |
| 9190 | 1.000 MM |
| Flare Type | Inverted Flare |
| Notes 1 [cntrc] | 1 Piston with Star Wheel & Adjuster Assembly |
| Piston 1 Type [cntrc] | Slotted |
| Piston 2 Type [cntrc] | Slotted |
| Port 2 Dia [cntrc] Mm | 10.000 |
| Port 2 Flare Type [cntrc] | Inverted Flare |
| Port 2 Thrd Pitch [cntrc] Mm | 1.000 |
| Publication Bore [cntrc] | 1 5/16" |
| Weight [cntrc] Kgs | 0.910 |
| Weight [cntrc] Lbs | 2.000 |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8412210075 |
| NAFTA Preference Criterion Code | B |
| UPC | 00805890018780 |
Part Interchanges
CENTRIC 134.76037 Cross Reference
We have 5 alternatives for the 134.76037 by CENTRIC:
Fits Vehicles
- Isuzu NPR-HD (1999-2002)
- Isuzu NQR (1998-2002)
- GMC W5500 Forward (1999-2002)
- Chevrolet W5500 Tiltmaster (1999-2002)
- GMC W4500 Forward (1997-2002)
- Chevrolet W4500 Tiltmaster (1997-2002)
