CENTRIC 131.66026 - Brake Master Cylinder - Aluminum, 1/2-20 Inverted, Single Reservoir
$8199
5 day lead time
limited availability at this price!
CENTRIC part description
California Proposition 65 Warning
Standard Brake Master Cyl GLT
Make | Chevrolet, GMC |
Model | Astro, Safari |
Year | 1990 |
Product Description

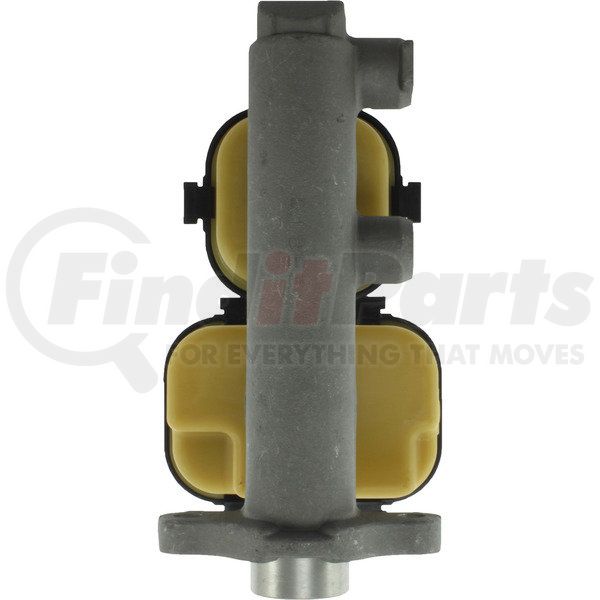

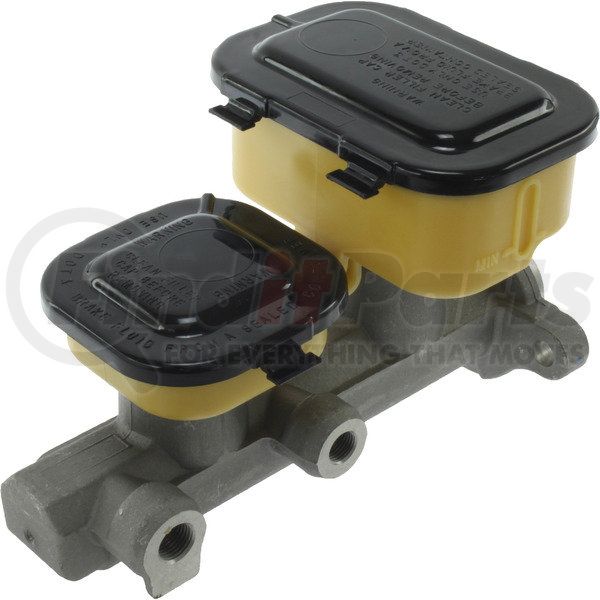

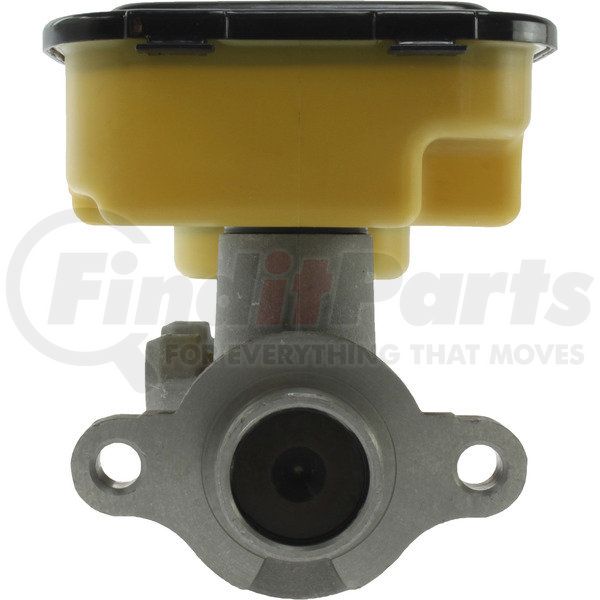

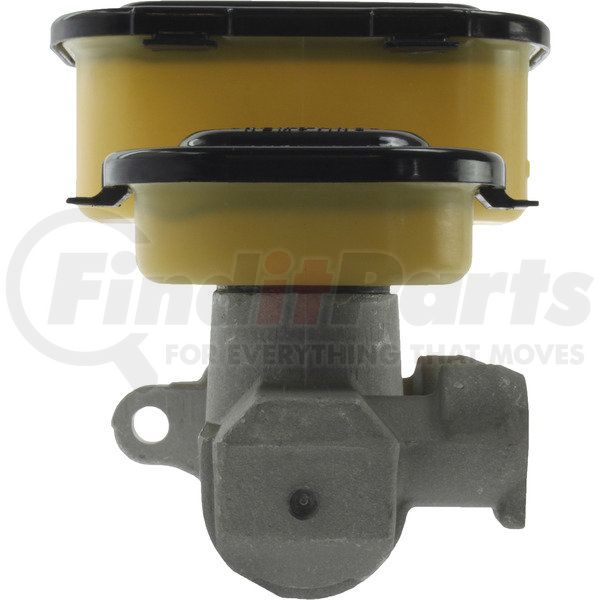

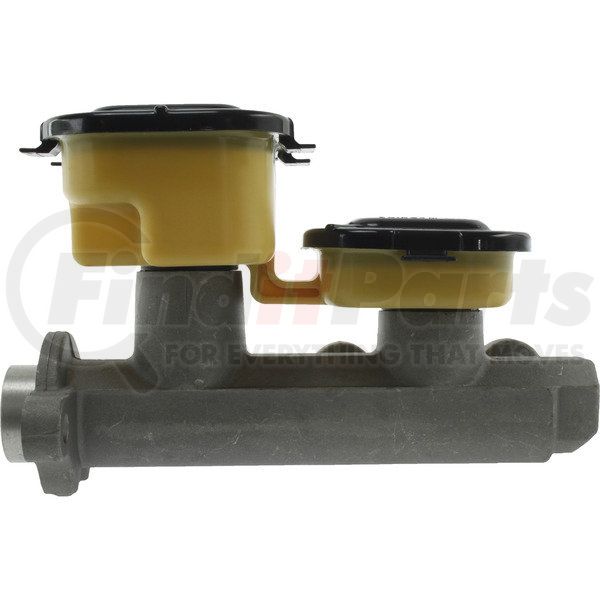

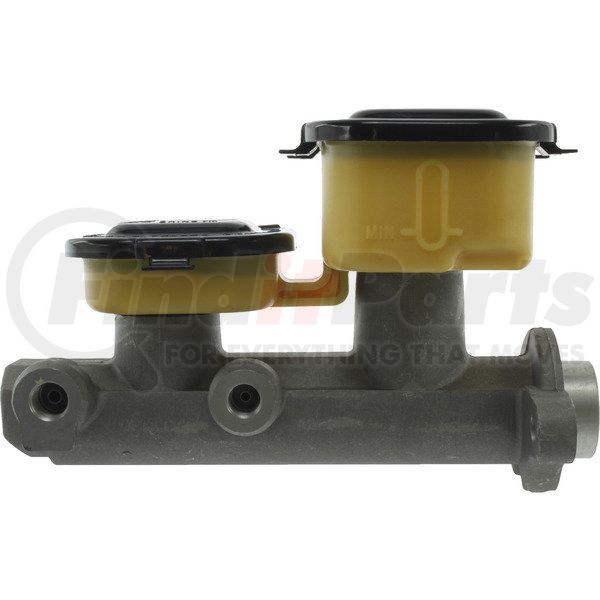

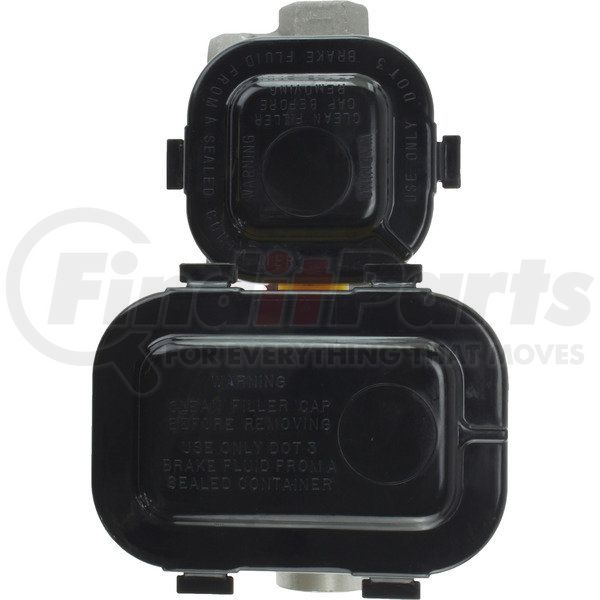

C-Tek Standard Brake Master Cylinder
Application Summary
Chevrolet Astro 1995-1990, GMC Safari 1995-1990
Features & Benefits
- Reservoirs and caps included. Pressure tested for worry free performance. Wide application coverage.
C-Tek Master Cylinder; Centric Parts Master Cylinder; Centric; Centricparts master Cylinder
Product Attributes
Reservoir Material | Plastic |
Mounting Hardware Included | No |
Mounting Hole Quantity | 2 |
Master Cylinder Bore Diameter | 1.250 IN |
Brake Booster Included | No |
Master Cylinder Cap Included | Yes |
Master Cylinder Material | Aluminum |
Pushrod Included | No |
Reservoir Included | Yes |
Reservoir Type | Single |
Primary Outlet Thread Diameter | 0.500 IN |
Secondary Outlet Thread Diameter | 0.5625 IN |
Bleeder Hoses Included | No |
Port Quantity | 2 |
Mounting Bracket Included | No |
9275 | 18 IN |
9276 | 20 IN |
Bore Type | Straight |
9425 | 31.750 MM |
9556 | 9/16"-18 |
9557 | 1/2"-20 |
9566 | Inverted |
9567 | Inverted |
9568 | 31.750 MM |
9570 | Removable |
Boss, Nipple Or Port: Front, Left: #a [cntrc] | 9/16"-18 inv |
Boss, Nipple Or Port: Rear: #a [cntrc] | 1/2"-20 inv |
Primary Outlet Flare Type [cntrc] | Inverted |
Publication Bore [cntrc] | 1 1/4" |
Push Rod: Length / Depth [cntrc] In | dmpl |
Secondary Outlet Flare Type [cntrc] | Inverted |
Weight [cntrc] Kgs | 1.45 |
Weight [cntrc] Lbs | 3.2 |
Additional Information
Country of Origin (Primary) | CN |
Harmonized Tariff Code (HTS) | 8413919050 |
NAFTA Preference Criterion Code | B |
UPC | 00805890176329 |
CENTRIC 131.66026 Cross Reference
We have 2 alternatives for the 131.66026 by CENTRIC:
Fits Vehicles
- GMC Safari (1990-1995)
- Chevrolet Astro (1990-1995)
