CENTRIC 131.62071 Part Description
Manufacturer
Product Description

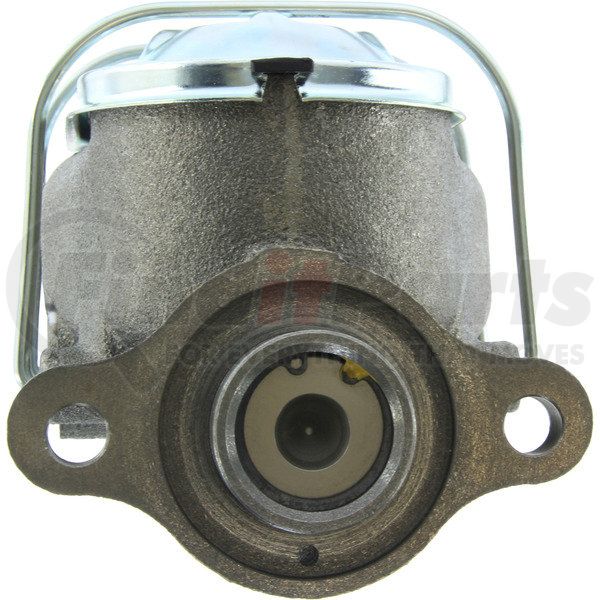

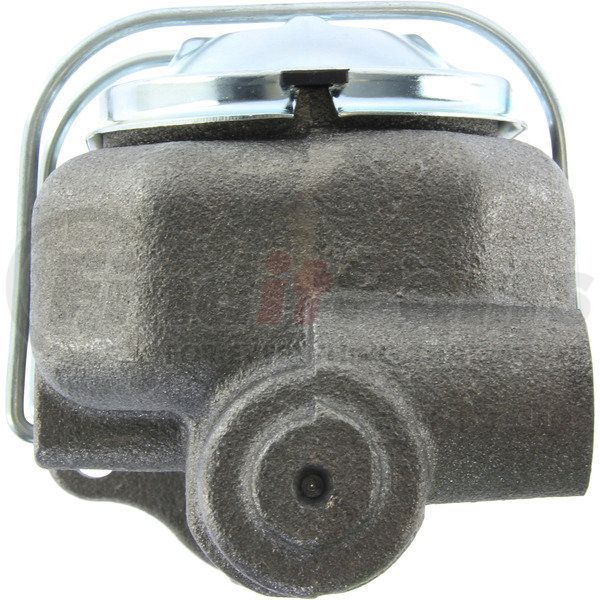

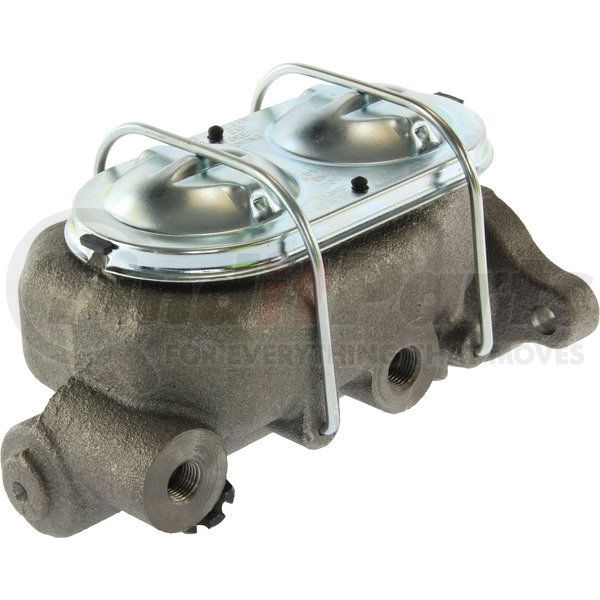

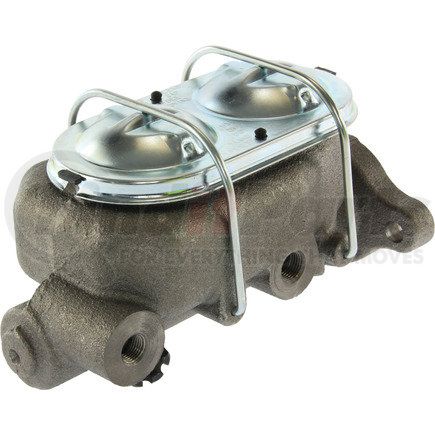

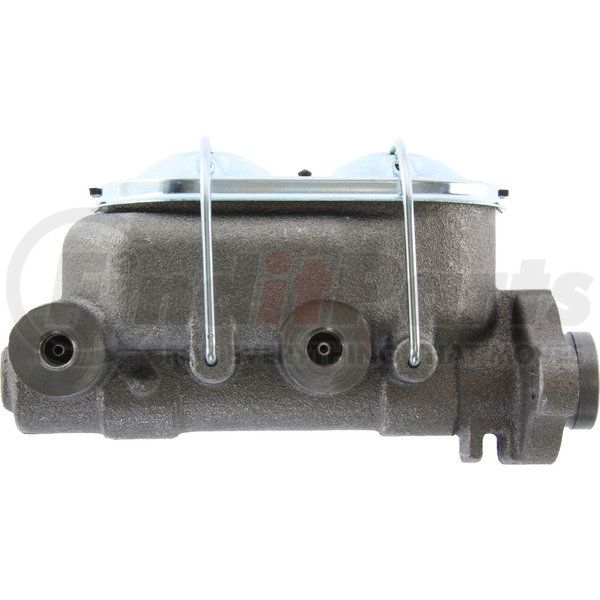

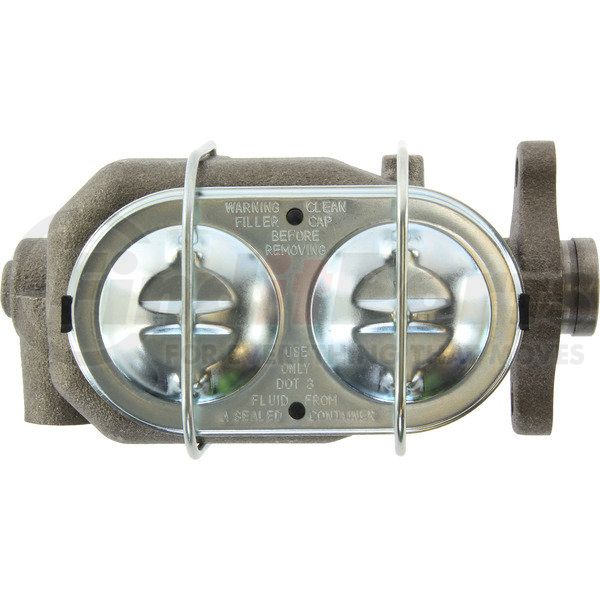

C-Tek Standard Brake Master Cylinder
Features & Benefits
- Reservoirs and caps included. Pressure tested for worry free performance. Wide application coverage.
CENTRIC 131.62071 Specifications
Product Attributes
| Push Rod: Length / Depth [cntrc] In | dmpl |
| Boss, Nipple Or Port: Rear: #a [cntrc] | 9/16"-18 inv |
| Weight [cntrc] Kgs | 4.27 |
| Secondary Outlet Flare Type [cntrc] | Inverted |
| Publication Bore [cntrc] | 1 1/8" |
| Boss, Nipple Or Port: Front, Left: #a [cntrc] | 1/2"-20 inv |
| Weight [cntrc] Lbs | 9.4 |
| Primary Outlet Flare Type [cntrc] | Inverted |
| Product Grade [cntrc] | Standard |
| Reservoir Material | Cast Iron |
| Mounting Hardware Included | No |
| Mounting Hole Quantity | 2 |
| Master Cylinder Bore Diameter | 1.125 IN |
| Master Cylinder Bore Diameter | 28.575 MM |
| Brake Booster Included | No |
| Master Cylinder Cap Included | Yes |
| Master Cylinder Material | Cast Iron |
| Push Rod Included | No |
| Reservoir Included | Yes |
| Reservoir Type | Single |
| Primary Outlet Thread Diameter | 0.5625 IN |
| Secondary Outlet Thread Diameter | 0.500 IN |
| Bleeder Hoses Included | No |
| Port Quantity | 2 |
| Mounting Bracket Included | No |
| 9275 | 20 IN |
| 9276 | 18 IN |
| Bore Type | Straight |
| Bore Size | 28.575 MM |
| Bore Size | 1.125 IN |
| Secondary Outlet Thread Size | 1/2"-20 |
| Primary Outlet Thread Size | 9/16"-18 |
| Primary Outlet Flare Type | Inverted |
| Secondary Outlet Flare Type | Inverted |
| Primary Bore Diameter | 28.575 MM |
| Primary Bore Diameter | 1.125 IN |
| Reservoir Style | Integral |
Additional Information
| Harmonized Tariff Code (HTS) | 8413919050 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 00805890160052 |
CENTRIC 131.62071 Cross References
CENTRIC 131.62071 Fits Vehicles
- Chevrolet Corvette (1977-1982)
