(888) 312-8812 Login SignupRAYBESTOS 6972R Raybestos R-Line Brake Rotor
SHIPS TODAY
$4449
Limited availability at this price!
In Stock
Get it by Monday, Jun 29
RAYBESTOS 6972R Part Description
Manufacturer
Product Description

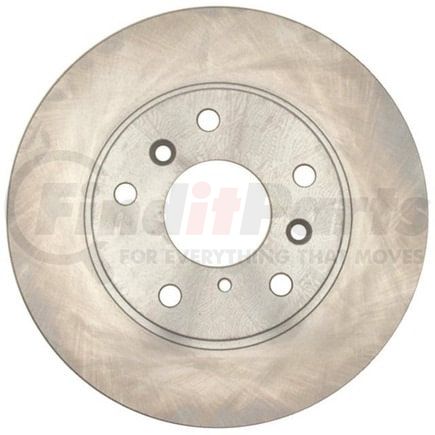

Raybestos R-Line Brake Rotor
Application Summary
1992-1989 Ford Probe Front, 1992-1988 Mazda 626 Front, 1992-1988 Mazda MX-6 Front
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 6972R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.521 IN |
| Center Hole Diameter | 64.05 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 0.866 IN |
| Discard Thickness | 22 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 4.5 IN |
| Mounting Bolt Hole Circle Diameter | 114.3 MM |
| Mounting Bolt Hole Diameter | 0.492 IN |
| Mounting Bolt Hole Diameter | 12.5 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.945 IN |
| Nominal Thickness | 24 MM |
| Outside Diameter | 10.385 IN |
| Outside Diameter | 263.8 MM |
| Overall Height | 1.825 IN |
| Overall Height | 46.35 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352366370 |
RAYBESTOS 6972R Cross References
| Brand | Part Number |
|---|---|
| 829352366370 | |
| ADVANCE AUTO PARTS | 141610, YH141610 |
| AMERICAN REMANUFACTURED | 789-14026, 89-14026 |
| AUTOPART INTERNATIONAL | 78428 |
| AUTOSPECIALTY | JBR385, JBR385E |
| AUTOXTRA | 61830, AX3198 |
| AUTOZONE | 3198, 3198B, DL3198 |
| BECK/ARNLEY | 080-2281, 083-2281 |
| BENDIX | 141610 |
| BRAKE HEADQUARTERS | BR08270 |
| BRAKE PRO | 4619360 |
| BRAKEBEST | 6972, 6972R, 6972RGS, 81-61830, BD61830 |
| BREMBO | 09.5252.10, 25313 |
| BrakeBest | 5974RGS, 5976RGS |
| Bridgestone | 7075434 |
| CALIFORNIA DRUM & ROTOR | 61830 |
| CENTRIC | 120.45026, 121.45026, 125.45026, 126.45026SL, 126.45026SR, 127.45026CR, 127.45026L, 127.45026R |
| CENTURY | 9360 |
| Casting Numbers | 210400-C, 211551-DP, 31981, 325075, 6801 |
| Centric Parts | 120.45026, 121.45026, 125.45026, 126.45026SL, 126.45026SR, 127.45026CR, 127.45026L, 127.45026R |
| DAYTON WALTHER | D7986 |
| DELPHI | RB361 |
| DURA CORP | BR3198 |
| DuraGo | BR3198 |
| EIS BRAKES | D17348 |
| EUROROTOR | MA833 |
| FORD | D92Z1125A, E92Z1125A |
| GREN | 630202 |
| GUARDIAN | 52-61830 |
| INTERBRAKES | MZ371V |
| ITM ENGINE COMPONENTS | 1601132 |
| MAGMA PRODUCTS | PMR203029 |
| MAZDA | GJ253325XD, GJ553325XC |
| MCI | 3970 |
| MIDAS | BR1608 |
| MIGHTY DISTRIBUTING SYSTEM | 3198 |
| MOTORCRAFT | BRR78 |
| NEWTEK AUTOMOTIVE | 3198 |
| Newtek Automotive USA | 3198 |
| PARTS MASTER | P61830 |
| PROMAX | 14-3198 |
| QUALIS | 3198 |
| QUALITEE INTERNATIONAL | 64-74-290 |
| QUALITY BRAND | 3198 |
| QUINTON HAZELL | BDC3657 |
| ROADMATES | 526637 |
| ROCKHILL | 3198 |
| SEARS | 17839 |
| STANDARD ROTORS AND DRUMS | 3198 |
| THE UNIVERSAL GROUP | 102980 |
| TRUSTAR | 474290, R74290 |
| TRW | DF2571S |
| UAP | 3198 |
| Universal | 102980 |
| VERA | 3405128 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X50443 |
| WAGNER | BD61830 |
| WAGNER BRAKE | BD61830, SB6972 |
| WINHERE | 442060, YH2060 |
RAYBESTOS 6972R Fits Vehicles
- Mazda 626 (1988-1992)
- Mazda MX-6 (1988-1992)
- Ford Probe (1989-1992)
