RAYBESTOS 9898R Part Description
Manufacturer
Product Description

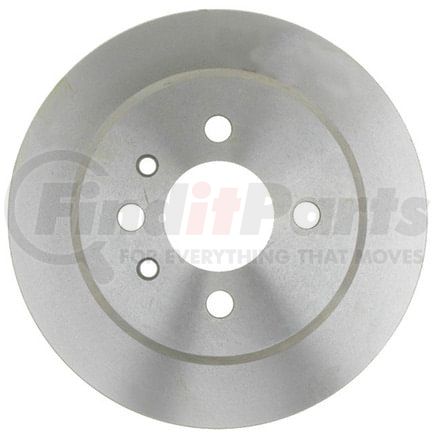

Raybestos R-Line Brake Rotor
Application Summary
1993-1987 BMW 325i Rear, 1987-1984 BMW 325e Rear, 1988-1986 BMW 325 Rear, 1991-1987 BMW 325is Rear, 1992-1991 BMW 318i Rear, 1991 BMW 318is Rear, 1987-1986 BMW 325es Rear
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 9898R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.442 IN |
| Center Hole Diameter | 62.05 MM |
| Conventional Or Drum-In-Hat Type Rotor | Drum-In-Hat |
| Discard Thickness | 0.331 IN |
| Discard Thickness | 8.4 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 3.937 IN |
| Mounting Bolt Hole Circle Diameter | 100 MM |
| Mounting Bolt Hole Diameter | 0.578 IN |
| Mounting Bolt Hole Diameter | 14.7 MM |
| Mounting Bolt Hole Quantity | 4 |
| Nominal Thickness | 0.39 IN |
| Nominal Thickness | 9.9 MM |
| Outside Diameter | 10.15 IN |
| Outside Diameter | 257.8 MM |
| Overall Height | 2.36 IN |
| Overall Height | 59.95 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Solid |
| Stud/Lug Hole Quantity | 4 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352373316 |
RAYBESTOS 9898R Cross References
| Brand | Part Number |
|---|---|
| 829352373316 | |
| ADVANCE AUTO PARTS | 141351, YH141351, YH141351C |
| AMERICAN REMANUFACTURED | 789-62019, 89-62019 |
| ATE BRAKE PRODUCTS | SP00039, 410150 |
| AUTOPART INTERNATIONAL | 50003 |
| AUTOSPECIALTY | EBR220, EBR220E |
| AUTOZONE | 3480, 3480DG |
| AXXIS | 085-6940 |
| BECK/ARNLEY | 080-2121, 083-2121 |
| BENDIX | 141351 |
| BMW | 34211119581 |
| BOSCH | 15010062 |
| BRAKE HEADQUARTERS | BR05142 |
| BRAKE PRO | 4619898 |
| BRAKEBEST | 15010062, 81-61863, 9898, 9898R, 9898RGS, BD61863 |
| BREMBO | 08.3947.20, 25080 |
| Brembo | 08.3947.24 |
| CALIFORNIA DRUM & ROTOR | 61863 |
| CENTRIC | 120.34019, 121.34019, 125.34019, 125.34019CRY, 126.34019CSL, 126.34019CSR, 126.34019SL, 126.34019SR, 127.34019L, 127.34019R, 128.34019CL, 128.34019CR, 128.34019L, 128.34019R, 227.34019L, 227.34019R, 320.34019H |
| CENTURY | 9376 |
| CONTINENTAL-CONTITECH | CW10150 |
| Casting Numbers | 210918-C, 325129 |
| Centric Parts | 120.34019, 121.34019, 125.34019, 125.34019CRY, 126.34019CSL, 126.34019CSR, 126.34019SL, 126.34019SR, 127.34019L, 127.34019R, 128.34019CL, 128.34019CR, 128.34019L, 128.34019R, 227.34019L, 227.34019R, 320.34019H |
| DAYTON WALTHER | D7271 |
| DELPHI | RB105 |
| DURA CORP | BR3480 |
| DuraGo | BR3480 |
| EIS BRAKES | D17427 |
| EUROROTOR | BM705 |
| GIRLING | GR251 |
| GREN | 401601 |
| GUARDIAN | 52-61863 |
| INTERBRAKES | BW131P |
| ITM ENGINE COMPONENTS | 1602315 |
| MAGMA PRODUCTS | PMR123016 |
| MCI | 4040 |
| MIDAS | BR1493 |
| MIGHTY DISTRIBUTING SYSTEM | 3480 |
| NEWTEK AUTOMOTIVE | 3480 |
| Newtek Automotive USA | 3480 |
| PARTS MASTER | P61863 |
| QUALIS | 3480 |
| QUALITEE INTERNATIONAL | 64-12-160 |
| QUALITY BRAND | 3480 |
| QUINTON HAZELL | BDC3288 |
| ROCKHILL | 3480 |
| STANDARD ROTORS AND DRUMS | 3480 |
| THE UNIVERSAL GROUP | 111800 |
| TRUSTAR | 412160, R12160 |
| TRW | DF1561S |
| UAP | 3480 |
| Universal | 111800 |
| VAICO | V2040019 |
| VERA | 3405524 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X50535 |
| WAGNER | BD61863 |
| WAGNER BRAKE | BD61863 |
| WINHERE | YH1108 |
| WORLDPAC | 1427-719541 |
RAYBESTOS 9898R Fits Vehicles
- BMW 325iX (1991)
- BMW 325es (1986-1987)
- BMW 325is (1987-1991)
- BMW 325i (1987-1993)
- BMW 325e (1984-1987)
- BMW 325 (1986-1988)
- BMW 318is (1991)
- BMW 318i (1991-1992)
