(888) 312-8812 Login SignupRAYBESTOS 9250R Raybestos R-Line Brake Rotor
$23.23
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
RAYBESTOS 9250R Part Description
Manufacturer
Product Description

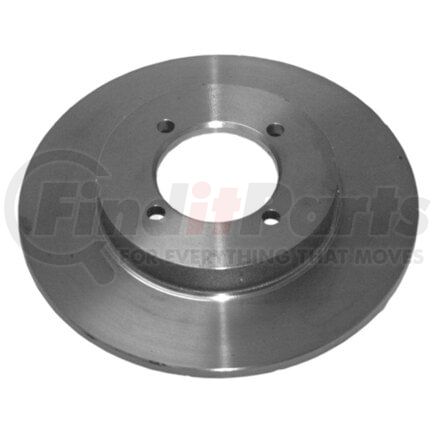

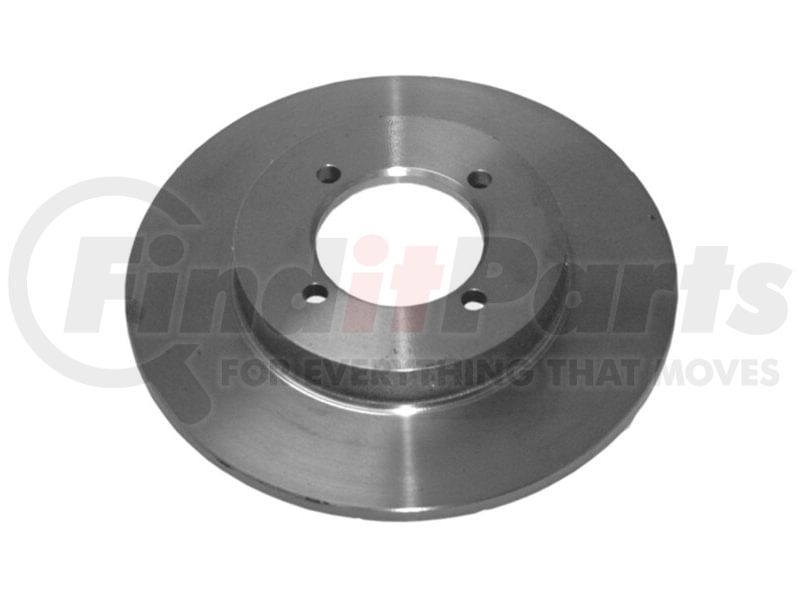

Raybestos R-Line Brake Rotor
Application Summary
1982-1979 Nissan 210 Front, 1978-1976 Nissan B210 Front, 1981-1978 Nissan 510 Front, 1977-1976 Nissan 710 Front, 1979-1977 Nissan 200SX Front, 1976-1975 Nissan 610 Front
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 9250R Specifications
Product Attributes
| Center Hole Diameter | 2.875 IN |
| Center Hole Diameter | 73 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 0.331 IN |
| Discard Thickness | 8.4 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 3.74 IN |
| Mounting Bolt Hole Circle Diameter | 95 MM |
| Mounting Bolt Hole Diameter | 3.74 IN |
| Mounting Bolt Hole Diameter | 95 MM |
| Mounting Bolt Hole Quantity | 4 |
| Nominal Thickness | 0.394 IN |
| Nominal Thickness | 10 MM |
| Outside Diameter | 9.64 IN |
| Outside Diameter | 244.85 MM |
| Overall Height | 1.4 IN |
| Overall Height | 35.55 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Solid |
| Stud/Lug Hole Quantity | 4 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352361399 |
RAYBESTOS 9250R Cross References
| Brand | Part Number |
|---|---|
| 829352361399 | |
| ADVANCE AUTO PARTS | 141144, 801107, YH141144, YH141144C |
| AMERICAN REMANUFACTURED | 789-04002, 89-04002 |
| AUTOSPECIALTY | JBR104, JBR104E |
| AUTOZONE | 3125DG, 3125, DL3125 |
| AXXIS | 085-5260 |
| BAP GEON | 1600506 |
| BECK/ARNLEY | 080-0364, 083-0364 |
| BENDIX | 141144 |
| BRAKE HEADQUARTERS | BR04078 |
| BRAKE PRO | 4619250 |
| BRAKEBEST | 81-97306, 9250, 9250R, 9250RGS |
| BREMBO | 08.3955.10, 25081 |
| CALIFORNIA DRUM & ROTOR | 97306 |
| CENTRIC | 120.42002, 121.42002 |
| CENTURY | 9250 |
| CERTIFIED DIVISION | R38A |
| CEW | 1163007 |
| Casting Numbers | 210153-C, 31251 |
| Centric Parts | 120.42002, 121.42002 |
| DATSUN/NISSAN | 40206U6700 |
| DAYTON WALTHER | D4880, D7235 |
| DURA CORP | BR3125 |
| DuraGo | BR3125 |
| EIS BRAKES | D9250 |
| EUROROTOR | NI413 |
| FADE FREE | 97306 |
| FIRESTONE | 85577, 5207-761-3 |
| FRATELLI POLETTI | 99YE |
| GIRLING | GR602 |
| GREN | 30701 |
| HOLLANDER | 51504 |
| INTERBRAKES | NS021P |
| INTERNATIONAL PARTS SERVICE | 8-8013 |
| ITM ENGINE COMPONENTS | 1600506 |
| KELSEY HAYES | 14880 |
| MAGMA PRODUCTS | PMR423005 |
| MAREMONT | 7939250 |
| MCI | 4005 |
| MIDAS | BR1119 |
| MIGHTY DISTRIBUTING SYSTEM | 3125 |
| MOPAR | 3-1353 |
| MOUNTAIN OFF-ROAD ENTERPRISES | NR13 |
| NEWTEK AUTOMOTIVE | 3125 |
| NORRBIT | 900-78 |
| Newtek Automotive USA | 3125 |
| Nissan | 40206U6700 |
| PRAEFKE | 141144 |
| QUALIS | 3125 |
| QUALITEE INTERNATIONAL | 64-76-130 |
| QUALITY BRAND | 3125 |
| ROADMATES | 526504 |
| ROCKHILL | 3125 |
| SANYO | NR13 |
| SEARS | 1792 |
| STANDARD ROTORS AND DRUMS | 3125 |
| TEKNOMAC | 28980 |
| THE UNIVERSAL GROUP | 109250 |
| TRANSPARTS | BR0103 |
| TRUSTAR | 476130, R76130 |
| UAP | 3125 |
| Universal | 109250 |
| VERA | 3401311 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X50188 |
| WAGNER BRAKE | BD97306 |
| WINHERE | YH1077 |
| WORLDPARTS | W70-157 |
RAYBESTOS 9250R Fits Vehicles
- Nissan B210 (1976-1978)
- Nissan 710 (1976-1977)
- Nissan 610 (1975-1976)
- Nissan 510 (1978-1981)
- Nissan 210 (1979-1982)
- Nissan 200SX (1977-1979)
