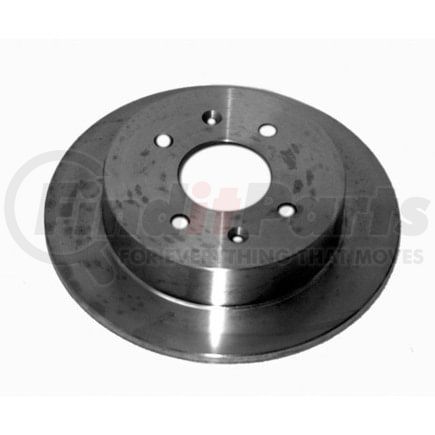

(888) 312-8812 Login SignupRAYBESTOS 96544R Raybestos R-Line Brake Rotor
MSRP: $41.49
$3049
Save $11.00
Limited availability at this price!
In Stock
Get it by Tuesday, Sep 8
RAYBESTOS 96544R Part Description
Manufacturer
Product Description
Raybestos R-Line Brake Rotor
Application Summary
2000-1999,1995-1992 Honda Civic Rear, 2001-1995 Acura Integra Rear, 1997-1993 Honda Civic del Sol Rear
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 96544R Specifications
Product Attributes
| Center Hole Diameter | 2.4 IN |
| Center Hole Diameter | 60.95 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.315 IN |
| Discard Thickness | 8 MM |
| Harmonize Code | 8708.30.5030 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 3.93 IN |
| Mounting Bolt Hole Circle Diameter | 99.8 MM |
| Mounting Bolt Hole Diameter | 0.5 IN |
| Mounting Bolt Hole Diameter | 12.7 MM |
| Mounting Bolt Hole Quantity | 4 |
| Nominal Thickness | 0.355 IN |
| Nominal Thickness | 9 MM |
| Outside Diameter | 9.4 IN |
| Outside Diameter | 238.75 MM |
| Overall Height | 1.875 IN |
| Overall Height | 47.65 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 4 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352371657 |
RAYBESTOS 96544R Cross References
| Brand | Part Number |
|---|---|
| 829352371657 | |
| ADVANCE AUTO PARTS | 145060, YH145060, YH145060C, YH145060P |
| ALTROM IMPORTS | A31037 |
| AMERICAN REMANUFACTURED | 789-08017, 89-08017 |
| AUTOSPECIALTY | JBR308, JBR308E |
| AUTOXTRA | 125467, AX31149 |
| AUTOZONE | 31037, 31149, 31149B, 31149DG |
| BECK/ARNLEY | 080-2683, 083-2683 |
| BENDIX | 145060 |
| BOSCH | 26010743 |
| BRAKE HEADQUARTERS | BR02044 |
| BRAKEBEST | 26010743, 81-125467, 96544, 96544FZN, 96544R, 96544RGS, BD125467 |
| BREMBO | 08.5719.10 |
| CALIFORNIA DRUM & ROTOR | 125467 |
| CENTRIC | 121.40017 |
| CONTINENTAL-CONTITECH | CW10706 |
| Casting Numbers | 211060-C, 325427, 5202 |
| DELPHI | RB96 |
| DURA CORP | BR31149 |
| EIS BRAKES | D17801, D17814 |
| GREN | 45401 |
| GUARDIAN | 52-125467 |
| HONDA | 42510SR3A10, 42510SR3A11, 42510SR3J00, 42510SR3J01 |
| MAGMA PRODUCTS | PMR263028 |
| MIDAS | BR1978 |
| MIGHTY DISTRIBUTING SYSTEM | 31149 |
| MONROE BRAKES | BD125467 |
| NAPA BRAKES | SDK6053 |
| NEWTEK AUTOMOTIVE | 31149 |
| Newtek Automotive USA | 31149 |
| PARTS MASTER | P125467 |
| PROMAX | 14-31149 |
| QUALIS | 31149 |
| QUALITY BRAND | 31149 |
| STANDARD ROTORS AND DRUMS | 31149 |
| THE UNIVERSAL GROUP | 115260 |
| TRW | 4191, DF4191 |
| TopNotch | TN96544GEO |
| UAP | 31149 |
| Ultra Brake | HO-530 |
| Universal | 115260 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X50945 |
| WABCO | PS125467 |
| WABCO - Archived | PS125467 |
| WAGNER | BD125467E, BD125467 |
| WAGNER BRAKE | BD125467, BD126052, SB96544 |
| WINHERE | YH1146 |
| Wagner Brake | BD125467E |
RAYBESTOS 96544R Fits Vehicles
- Honda Civic del Sol (1993-1997)
- Honda Civic (1992-1995, 1999-2000)
- Acura Integra (1995-2001)
