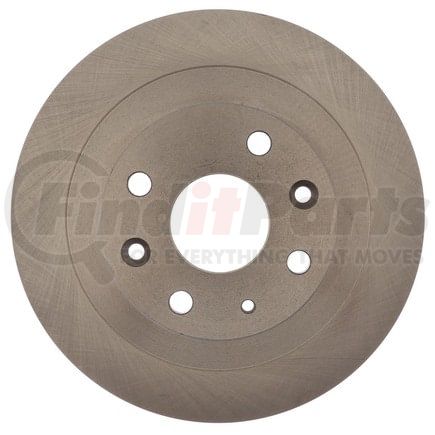

(888) 312-8812 Login SignupRAYBESTOS 6129R Raybestos R-Line Brake Rotor
$36.89
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
RAYBESTOS 6129R Part Description
Manufacturer
Product Description
Raybestos R-Line Brake Rotor
Application Summary
2005-1999,1997-1994 Mazda Miata Rear, 2003-1991 Ford Escort Rear, 1998-1990 Mazda Protege Rear, 1999-1991 Mercury Tracer Rear, 1996-1992 Mazda MX-3 Rear
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 6129R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.167 IN |
| Center Hole Diameter | 55.05 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 0.315 IN |
| Discard Thickness | 8 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 3.937 IN |
| Mounting Bolt Hole Circle Diameter | 100 MM |
| Mounting Bolt Hole Diameter | 3.937 IN |
| Mounting Bolt Hole Diameter | 100 MM |
| Mounting Bolt Hole Quantity | 4 |
| Nominal Thickness | 0.355 IN |
| Nominal Thickness | 9 MM |
| Outside Diameter | 9.87 IN |
| Outside Diameter | 250.7 MM |
| Overall Height | 1.35 IN |
| Overall Height | 34.3 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 4 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352365175 |
RAYBESTOS 6129R Cross References
| Brand | Part Number |
|---|---|
| 829352365175 | |
| ADVANCE AUTO PARTS | 141504, YH141504 |
| ALTROM IMPORTS | A05485 |
| AMERICAN REMANUFACTURED | 789-14041, 89-14041 |
| AUTOPART INTERNATIONAL | 78421 |
| AUTOSPECIALTY | JBR570, JBR570E |
| AUTOXTRA | 125108, AX5485 |
| AUTOZONE | 5485, 5485B, DL5485 |
| BECK/ARNLEY | 080-2382, 083-2382, 083-2411, 083-2781 |
| BENDIX | 141504 |
| BRAKE HEADQUARTERS | BR54402 |
| BRAKE PRO | 4616129 |
| BRAKEBEST | 20010382, 6129, 6129FZN, 6129R, 6129RGS, 81-125108, BD125108 |
| BREMBO | 08.6857.10, 25187 |
| Bridgestone | 7004662 |
| CALIFORNIA DRUM & ROTOR | 125108 |
| CENTRIC | 120.45041, 120.45041CRY, 121.45041, 125.45041, 126.45041CSL, 126.45041CSR, 126.45041SL, 126.45041SR, 127.45041L, 127.45041R, 128.45041CL, 128.45041CR, 128.45041L, 128.45041R, 320.45041 |
| CENTURY | 9631 |
| CONTINENTAL-CONTITECH | CW09705 |
| Casting Numbers | 210477-C, 211520-DP, 325257, 54851 |
| Centric Parts | 120.45041, 120.45041CRY, 121.45041, 125.45041, 126.45041CSL, 126.45041CSR, 126.45041SL, 126.45041SR, 127.45041L, 127.45041R, 128.45041CL, 128.45041CR, 128.45041L, 128.45041R, 320.45041 |
| DELPHI | RB26 |
| DURA CORP | BR5485 |
| DuraGo | BR5485 |
| EIS BRAKES | D17500 |
| EUROROTOR | MA846 |
| FORD | E1C72C026A, F1CZ2C026A, F1CZ2C026B, F7CZ2C026AB, F7CZ2C026BA |
| GIRLING | GR6136 |
| GREN | 636801 |
| GUARDIAN | 52-125108 |
| MAGMA PRODUCTS | PMR203038 |
| MAZDA | BB4C26251, BB4C26251B, BB4C26251C, BB8V26251, BR7426251A, BR7426251B, BR7426251E |
| MIDAS | BR1679, BR1938 |
| MIGHTY DISTRIBUTING SYSTEM | 5485 |
| MONROE BRAKES | BD125108 |
| MOTORCRAFT | BRR45 |
| NAPA BRAKES | SDK6215, TSR534 |
| NEWTEK AUTOMOTIVE | 5485 |
| Newtek Automotive USA | 5485 |
| PARTS MASTER | P125108 |
| POWERSTOP | JBR570EVC |
| PROMAX | 14-5485 |
| QUALIS | 5485 |
| QUALITEE INTERNATIONAL | 64-74-390 |
| QUALITY BRAND | 5485 |
| QUINTON HAZELL | BDC4747 |
| ROADMATES | 526170 |
| ROCKHILL | 5485 |
| STANDARD ROTORS AND DRUMS | 5485 |
| THE UNIVERSAL GROUP | 102850 |
| TRUSTAR | 474390, R74390 |
| TRW | DF2703S |
| UAP | 5485 |
| Ultra Brake | MA-846 |
| Universal | 102850 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X50647 |
| WAGNER | BD125108 |
| WAGNER BRAKE | BD125108, SB6129 |
| WINHERE | 661065, YH1065 |
| WORLDPAC | 1407-78421, 1427-719850 |
RAYBESTOS 6129R Fits Vehicles
- Mazda 323 (1995)
- Mazda Protege (1990-1998)
- Mazda Miata (1994-1997, 1999-2005)
- Mazda MX-3 (1992-1996)
- Mercury Tracer (1990-1999)
- Ford Escort (1991-2003)
