(888) 312-8812 Login SignupCENTRIC 130.45411 Centric Premium Brake Master Cylinder
Tap to view 6 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
CENTRIC 130.45411 Part Description
Manufacturer
Product Description

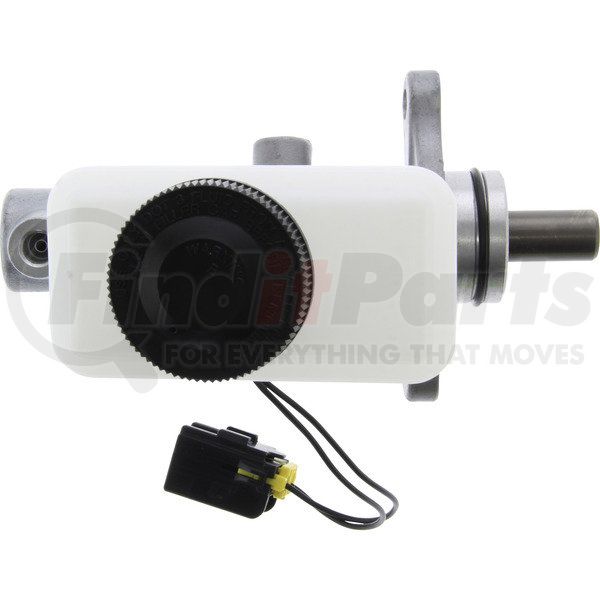

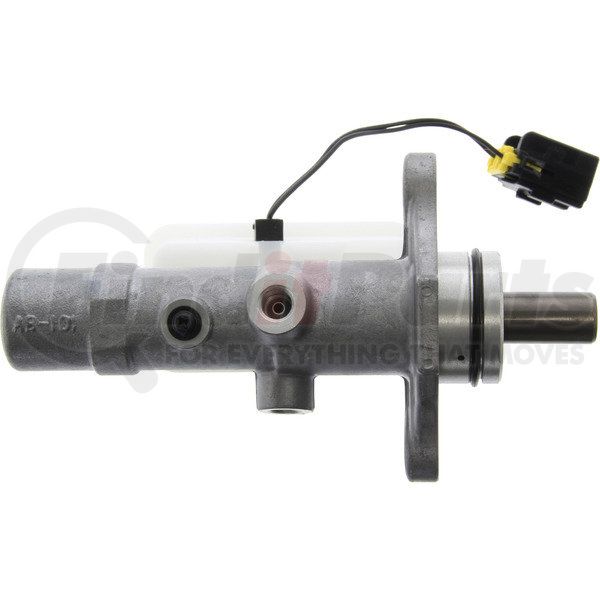

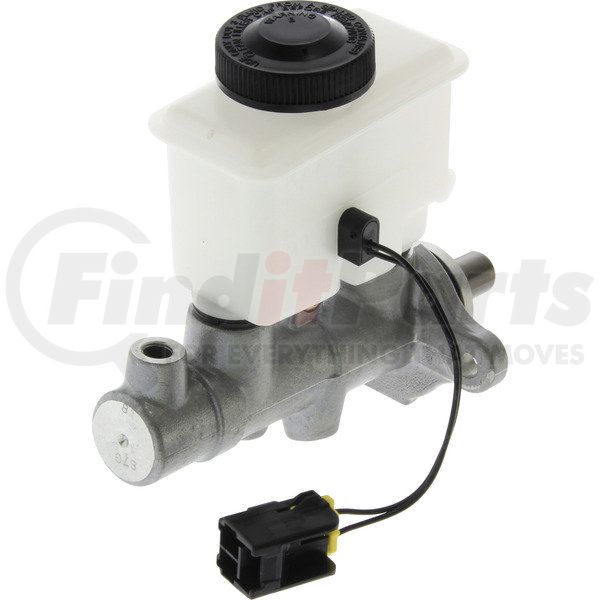

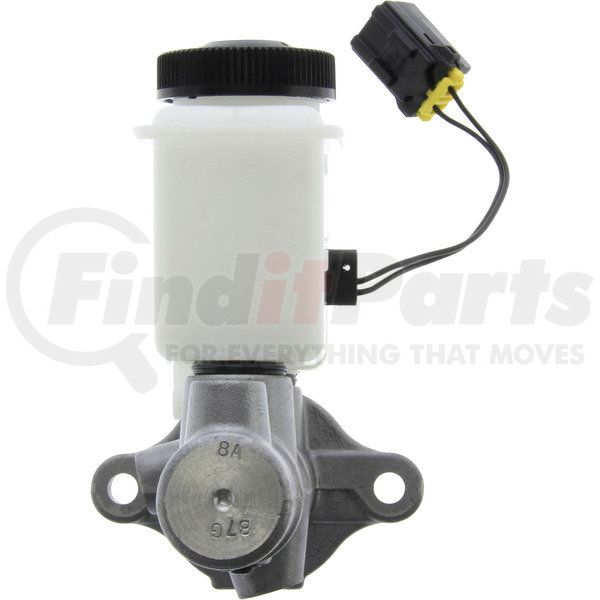

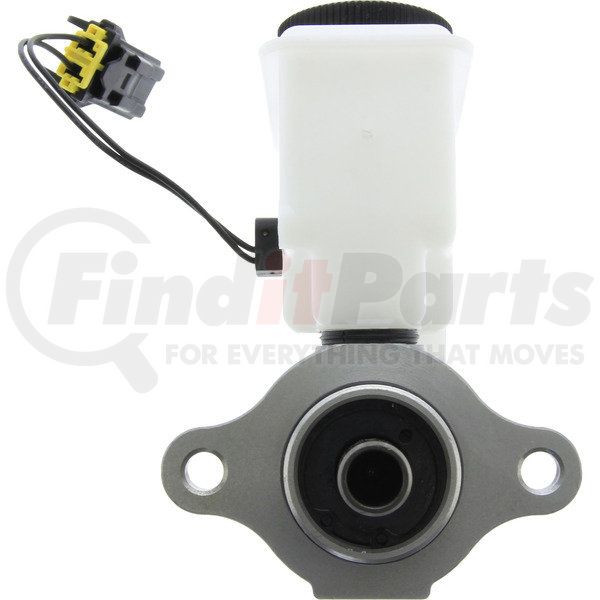

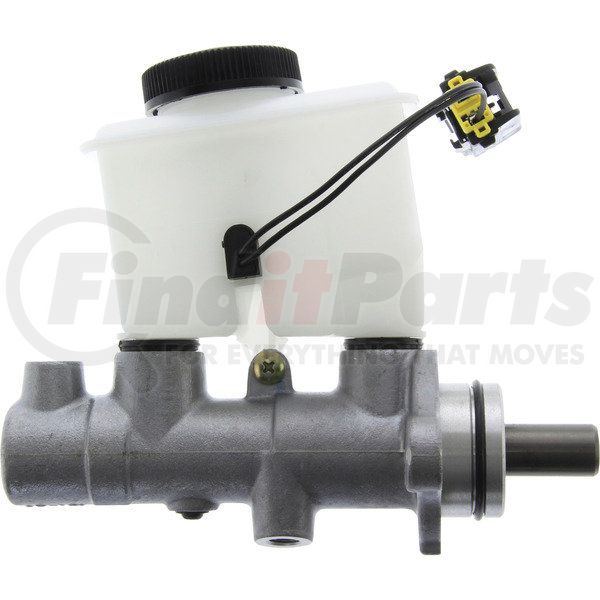

Centric Premium Brake Master Cylinder
Features & Benefits
- Match O.E. parts in quality; configuration and fitment. Complete with reservoirs; switches and floats. Original aluminum casting body design where applicable. Manufactured under the highest quality standards by OEM and OES manufacturers
CENTRIC 130.45411 Specifications
Product Attributes
| Push Rod: Length / Depth [cntrc] In | 1.5 |
| Weight [cntrc] Lbs | 1.4 |
| Product Grade [cntrc] | Premium |
| Boss, Nipple Or Port: Center, Bottom [cntrc] | screw |
| Secondary Outlet Flare Type [cntrc] | Inverted |
| Publication Bore [cntrc] | 15/16" |
| Boss, Nipple Or Port: Rear, Right: #a [cntrc] | M10-1.00 inv |
| Primary Outlet Flare Type [cntrc] | Inverted |
| Boss, Nipple Or Port: Front, Top [cntrc] | M10-1.00 inv |
| Weight [cntrc] Kgs | 0.64 |
| Reservoir Material | Plastic |
| Mounting Hardware Included | No |
| Gasket Or Seal Included | Yes |
| Mounting Hole Quantity | 2 |
| Master Cylinder Bore Diameter | 23.813 MM |
| Master Cylinder Bore Diameter | 0.938 IN |
| Brake Booster Included | No |
| Master Cylinder Cap Included | Yes |
| Master Cylinder Material | Aluminum |
| Push Rod Included | No |
| Reservoir Included | Yes |
| Reservoir Type | Single |
| Primary Outlet Thread Diameter | 10.000 MM |
| Secondary Outlet Thread Diameter | 10.000 MM |
| Bleeder Hoses Included | No |
| Port Quantity | 3 |
| Mounting Bracket Included | No |
| Secondary Outlet Thread Pitch | 1.00 MM |
| Primary Outlet Thread Pitch | 1.00 MM |
| Bore Type | Straight |
| Bore Size | 23.813 MM |
| Bore Size | 0.938 IN |
| Secondary Outlet Thread Size | M10-1.00 |
| Primary Outlet Thread Size | M10-1.00 |
| Primary Outlet Flare Type | Inverted |
| Secondary Outlet Flare Type | Inverted |
| Primary Bore Diameter | 23.813 MM |
| Primary Bore Diameter | 0.938 IN |
| Reservoir Style | Removable |
Additional Information
| Harmonized Tariff Code (HTS) | 8413919050 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 805890004912 |
CENTRIC 130.45411 Part Interchanges
| Brand | Part Number |
|---|---|
| N/A | 0729217, 0729241, MC131377, MC131902, F131377, F131902, ZY13243, 6674700, 6674720, M900992, M901005, NM52743, BE5H4340Z, BC1C4340Z, 65-M390332, 13383, 13243, MC390315, MC390332, 390315, 390332, 230245411, 2302-45411, 112743, M53411, 18M1091, 18M1092, 35580064, E150768, M390332 |
CENTRIC 130.45411 Fits Vehicles
- Mazda Protege (1995-1996)
CENTRIC 130.45411 Cross References
