CSF 7046 Part Description
Manufacturer
Product Description

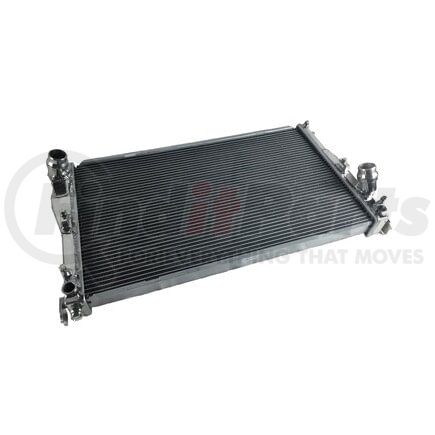

BMW E82 1M / 08-11 E8X 135i / 07-11 E9X 335i / E89 Z4 (AT) All-Aluminum Radiator
Features & Benefits
- 2-Row 42mm Core (Dual Core) Featuring CSF's Exclusive B-Tube Technology
- Core Features an Ultra-Efficient Fin with 6.5mm Fin Height and Multi-Louvered Design for Maximum Surface Area Contact
- CNC Machined "Quick-Connect" Inlet/Outlet Connections
- CNC Machined Brackets and Fittings for Superb Fit and Durability
- All-Aluminum Race Style Drain Plug
- Smooth Satin Finish
- "Drop-in Fit" Requiring No Modifications to Install - Accepts All Attaching OEM Components Including "Quick-Connect" Hoses, AC Condenser, Mounting Brackets and Fan Shroud
The CSF #7046 Cooling product is designed to be a "Drop-In Fit" application. The product will install in the OEM Location with no modifications necessary unless otherwise noted or instructions are included in the product package. Please see the manufacturer repair manual for standard installation instructions. If you do not feel confident installing this product CSF recommends taking it to a qualified installation facility.
BMW E82 1M / 08-11 E8X 135i / 07-11 E9X 335i / E89 Z4 (AT) All-Aluminum Radiator
CSF 7046 Specifications
Product Attributes
| Core Height | 23.625 in. |
| Mounting Hardware Included | No |
| Thermostat Included | No |
| Tank Material | Aluminum |
| Mounting Type | Mounts with OE Hardware |
| Frame Included | No |
| Coolant Hose Outlet Connection Type | OE Type Connection |
| Coolant Hose Inlet Connection Type | OE Type Connection |
| Installation Type | Drop-In Fit Installation |
| Finish/Color | Satin |
| Prop 65 Yes/no | No |
| Grade Type | Performance |
| Core Material | Aluminum |
| Core Width | 13.625 in. |
| Radiator Cap Included | No |
| Outlet Connector Type | Quick Connect |
| Inlet Connector Type | Quick Connect |
| Down Flow Or Cross Flow Type | Cross Flow |
| Internal Engine Oil Cooler | No |
| Internal Transmission Oil Cooler | Yes |
| Outlet Location | Bottom Left |
| Inlet Location | Top Right |
| Outlet Diameter | 1.5 in. |
| Inlet Diameter | 1.5 in. |
| Core Row Quantity | 2 |
| Core Thickness | 1.625 in. |
| Title | BMW E82 1M / 08-11 E8X 135i / 07-11 E9X 335i / E89 Z4 (AT) All-Aluminum Radiator |
Additional Information
| Core Return Days to Expiry | 0 |
| Warranty Time | 2 |
| Warranty Time UOM | YR |
| Country of Origin (Primary) | ID |
| Harmonized Tariff Code (Schedule B) | 8708915000 |
| NAFTA Preference Criterion Code | B |
| UPC | 00710353070468 |
CSF 7046 Cross References
| Brand | Part Number |
|---|---|
| BMW | 17117547059 |
CSF 7046 Fits Vehicles
- BMW X1 (2013-2015)
- BMW 335i (2007-2013)
- BMW Z4 (2011-2016)
CSF 7046 Customer Reviews
No reviews yet
Be the first to review this product!
CSF 7046 Manufacturer Information
When it comes to heavy-duty or performance vehicle cooling, trust only the experts—CSF. Called "The Cooling Experts," CSF has sold over 30 million products, including intercoolers, condensers, radiators, pressure caps, racing radiators, and other solutions to vehicle cooling problems. Whatever the application, CSF has the ideal solution. Its portfolio comprises over 3000 models manufactured in state-of-the-art, ISO-certified facilities. Every CSF product, especially its radiators, has been rigorously tested—Hydrostatic, vacuum decaying, life-cycle testing—and is meticulously crafted to provide a "drop-in fit." This world leader in automotive cooling now exclusively sells its products through its huge network of over 500 distributors across the country.
