WAGNER DSX180663E Part Description
Manufacturer
Product Description

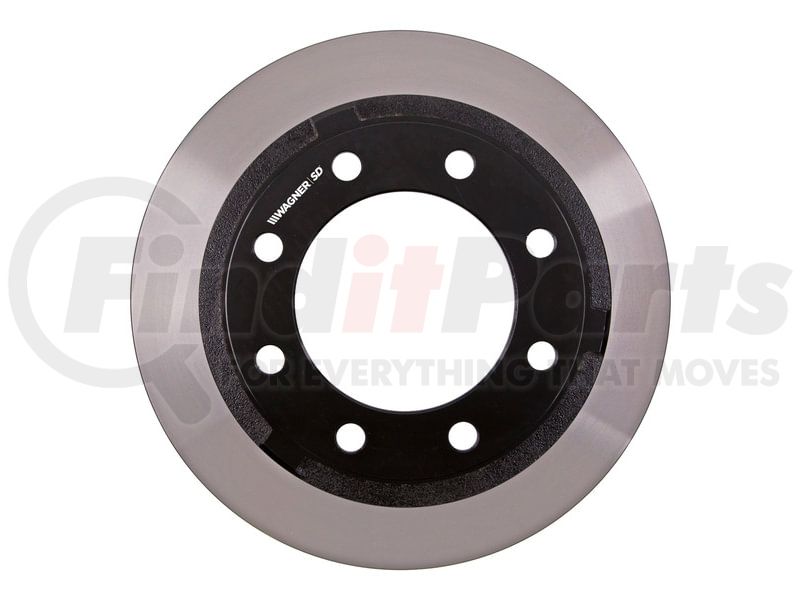

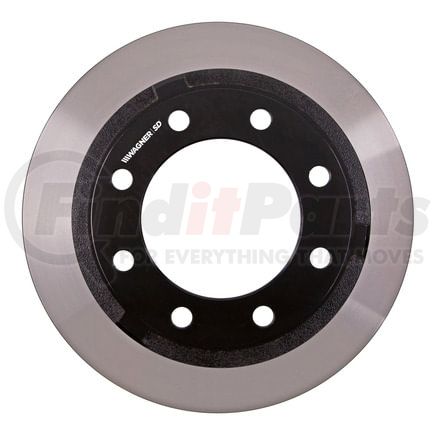

SevereDuty Disc Brake Rotor
Application Summary
2013-2021 Ford F-250 Super Duty (Rear) (Qualifier: Black E-Coat on non-braking surface to prevent rust and corrosion, with Single Rear Wheels (SRW)); 2013-2021 Ford F-350 Super Duty (Rear) (Qualifier: with Single Rear Wheels (SRW), Black E-Coat on non-braking surface to prevent rust and corrosion)
Features & Benefits
- BUILT STRONG -- Engineered to OE dimensions, rotors are designed for fleet, municipal, work and delivery vehicles that are driven in demanding conditions, making frequent stops, towing and carrying heavy loads
- EXTREME DURABILITY -- Designed with superior metallurgy featuring a combination of lightly alloyed and high-carbon metallurgy for high-strength, excellent durability and extreme heat management
- EXTREME DURABILITY -- Designed with superior high-carbon, lightly alloyed metallurgy that ensures high strength, excellent durability and effective heat management at high temperatures
- ENGINEERED FOR PERFORMANCE -- OE-specific vane design provides effective braking power and heat dissipation while controlling noise, vibration and harshness
- RESISTS CORROSION -- Painted edges & hats provide reliable corrosion resistance
- PREMIUM PROTECTION -- Durable E-Shield(R) protective coating is applied to non-braking surfaces to inhibit corrosion
- PRECISION FINISH -- Requires less pad break-in time and aids in proper bedding
- PROPER BALANCE -- Spin balanced and cut to limit vibration for improved stability and control
- CONSISTENT PERFORMANCE -- Precision ground surface finish delivers reliable performance, noise reduction and heat dissipation
- EASY INSTALLATION -- Rotors are packaged in a Vapor Corrosion Inhibitor bag, eliminating the need for an oil coating which reduces prep time
- SMOOTH BRAKING -- Application-specific OE vane design and thickness help control noise, vibration and harshness (NVH)
- PERFECT PAIRING -- Pair Wagner SD rotors with Wagner SD brake pads for optimal performance under extreme use
- PROPER BALANCE -- Precision-machined to limit vibrations for improved stability, control and reduced pad wear
- PERFECT PAIRING -- Pair Wagner SD rotors with Wagner PPV and SD brake pads for optimal performance under extreme use
Wagner Brake SevereDuty DSX180663E Disc Brake Rotor
WAGNER DSX180663E Specifications
Product Attributes
| Stud/Lug Hole Quantity | 8 |
| Outside Diameter | 14.290 IN |
| Outside Diameter | 363.0 MM |
| Overall Height | 118.0 MM |
| Overall Height | 4.645 IN |
| Nominal Thickness | 1.500 IN |
| Nominal Thickness | 38.0 MM |
| Solid Or Vented Type Rotor | Vented |
| Surface Type | Smooth |
| Construction | Full Cast |
| Material | Cast Iron |
| Rust Resistant Coating | Yes |
| Part Description | Disc Brake Rotor |
| Bearings Included | No |
| Directional or Non-Directional Brake Surface | Directional |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8708305030 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00008536974352 |
| VMRS Code | 013017001 |
| UNSPSC | 25171705 |
WAGNER DSX180663E Cross References
| Brand | Part Number |
|---|---|
| ACDelco | 18A81017, 18A81017SD, 18A81017A, 18A81017AC |
| Bosch | 20011621 |
| BrakeBest Select Drum/Rotor | 672353RGS, 672353PRM |
| Carquest Platinum Painted Rotors | YH482053P |
| Carquest Wearever | YH482053 |
| Centric Parts | 120.65143, 120.65143CRY, 121.65143, 320.65143F |
| DuraGo | BR901172, BR901172-01, BR901172-02 |
| Duralast | 75016DL |
| Dynamic Friction Company | 604-54227, 600-54227 |
| Ford | DC3Z2C026A |
| NAPA BRAKES | 881017CR, RA881017, FT881017, 48881017, 248881017 |
| Raybestos Brakes | 681017R, 681017FZN, 681017, 681017PER |
WAGNER DSX180663E Fits Vehicles
- Ford F-350 Super Duty (2013-2022)
- Ford F-250 Super Duty (2013-2022)
