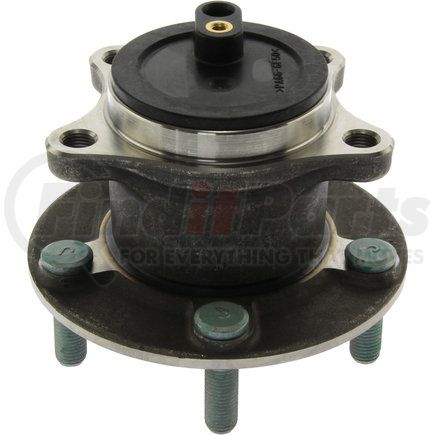

Centric 407.45002 - Centric Premium Hub and Bearing Assembly; With Integral ABS
$16199
5 day lead time
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
Product Description
Centric Premium Hub and Bearing Assembly; With Integral ABS
Features & Benefits
- 100% O.E. Quality Components. Premium seals protect internal components. Exacting Fit and Function. Complete cataloging; featuring the latest applications and covering from 1940 to 2017
Product Attributes
| Bolt Circle Diameter [cntrc] In | 4.500 |
| Mounting Hole Qty [cntrc] | 4 |
| Thread Pitch To Wheel Mounting [cntrc] Mm | 1.500 |
| Off-set [cntrc] Mm | 2.469 |
| Mounting Thread Pitch [cntrc] Mm | 1.250 |
| Inner Mount Pilot [cntrc] In | 3.058 |
| Product Grade [cntrc] | Premium |
| Notes [cntrc] | Retaining Holes 2xM8-1.25 |
| Bolt Circle Diameter [cntrc] Mm | 114.300 |
| Inner Mount Pilot [cntrc] Mm | 77.670 |
| Mouting Thread Size [cntrc] Mm | 12.000 |
| Off-set [cntrc] In | 62.710 |
| Wheel Stud Size | 12.000 MM |
| Wheel Pilot Diameter | 66.520 MM |
| Wheel Pilot Diameter | 2.619 IN |
| Brake Pilot Diameter | 71.370 MM |
| Brake Pilot Diameter | 2.810 IN |
| Wheel Stud Quantity | 5 |
| Wheel Studs Included | Yes |
| Flange Diameter | 139.400 MM |
| Flange Diameter | 5.488 IN |
Additional Information
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (HTS) | 8482105016 |
| UPC | 805890567745 |
Part Interchanges
Fits Vehicles
- Mazda 6 (2009-2013)
- Mazda CX-7 (2007-2012)
