(888) 312-8812 Login SignupDELPHI TC6860 Control Arm and Ball Joint Assembly
Tap to view 13 more
$12449
Limited availability at this price!
In Stock
Get it by Wednesday, Jun 24
DELPHI TC6860 Part Description
Manufacturer
Product Description

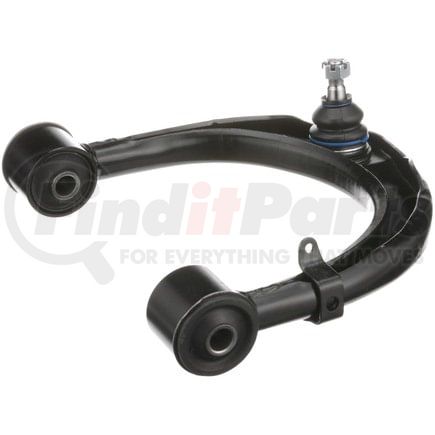

Control Arm and Ball Joint Assembly
Features & Benefits
- Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specifications
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Control arms utilize robot welding for consistent performance and quality
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Control Arm and Ball Joint Assembly
DELPHI TC6860 Specifications
Product Attributes
| Position(s) | Front Right Upper |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Mounting Type | Press In |
| Ball Joint Stud Type | Threaded |
| Control Arm Construction | Stamped |
| Control Arm Material | Steel |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 2 |
| Adjustable | No |
| Greaseable | No |
| Control Arm Maximum Width | 305.00 MM |
| Control Arm Maximum Width | 12.008 IN |
| Control Arm Color | Black |
| Ball Joint Thread Diameter | 14.00 MM |
| Ball Joint Stud Length | 86.50 MM |
| Ball Joint Stud Length | 3.406 IN |
| Control Arm Maximum Length | 323.00 MM |
| Control Arm Maximum Length | 12.717 IN |
| Bushing Material | Rubber |
| Mounting Hole Diameter | 17.20 MM |
| Mounting Hole Diameter | 0.677 IN |
| Distance Between Bushings | 199.00 MM |
| Distance Between Bushings | 7.835 IN |
| Bushing Inside Diameter | 0.677 IN |
| Bushing Inside Diameter | 17.20 MM |
| Bushing Length | 2.441 IN |
| Bushing Length | 62.00 MM |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Finish | Painted |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Locking Nut Included | Yes |
| Thread Diameter | 14.00 MM |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Dust Boot Material | Chloroprene Rubber (CR) |
| Ball Joint Thread Diameter | 0.551 IN |
| Thread Diameter | 0.551 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| UPC | 00689604383452 |
| VMRS Code | 016001002 |
| UNSPSC | 25172013 |
DELPHI TC6860 Cross References
DELPHI TC6860 Fits Vehicles
- Toyota Land Cruiser (2008-2011, 2013-2021)
- Lexus LX570 (2008-2011, 2013-2021)
