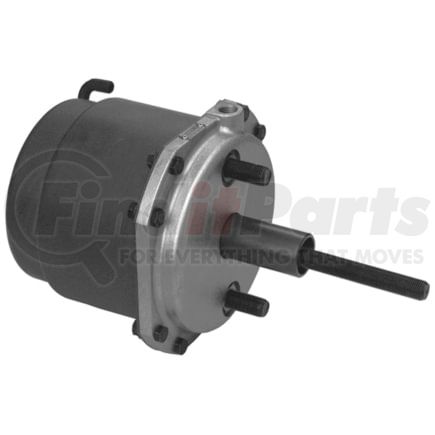

WABCO 9254070030 - Air Brake Spring Brake Valve - Cam, 45.0 psi, without Boot and Yoke
$2,13749
14 day lead time
Pay over 3-12 months with
. Learn more
. Learn more
WABCO part description
Spring Brake Cylinder 24
Product Attributes
| Output Force | 10000 N |
| Size | 356 x 187 x 193 |
| Total Length | 100.0 mm |
| Temperature Range | -40°C to +80°C |
| Nominal Diameter | 8.5 mm |
| Distance between bolts | 120.6 mm |
| Bolt Lengths | 32.0 mm |
| Cooling | Air |
| Max. operating pressure | 145.0 psi |
| Release Pressure | 4.9 bar |
| Max. operating pressure | 145.0 psi |
| Port thread 11 | M16 x 1.5 |
| Stroke | 65.0 mm |
| Calculated Volume (dm³) | 12.8484 |
| Bolt Threads | M16 x 1.5 |
| Port thread 12 | M16 x 1.5 |
| Type Of Operation | Cam |
| Push-rod thread | M16 x 1.5 |
| Type | Without boot |
| Weight | 15.298 |
| Yoke | No |
Whether it’s for cars, buses, trucks, or trailers, WABCO® is at the frontline at developing and providing products and systems to make vehicles safer and easier to control. Founded in 1869, WABCO is a major supplier of braking, stability, suspension and transmissions in the Americas and beyond. The company is recognized as introducing the modern air brake system in 1869, and continues to lead the industry in air brake design and production for the heavy duty and commercial vehicle sectors. Today, WABCO operates as a division of the German auto parts maker ZF and employs 16,000 employees in facilities in 36 countries worldwide.
