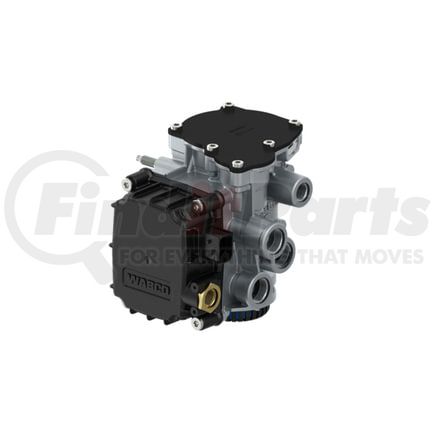

WABCO 4802040310 - Trailer Brake Control Valve
$84349
14 day lead time
Pay over 3-12 months with
. Learn more
. Learn more
WABCO part description
Trailer Control Valve - EBS
Product Attributes
| Max. operating pressure | 8.5 bar |
| Size | 170 x 170 x 200 |
| Voltage | 24 V |
| Mounting | 3x M8 |
| Weight | 5.161 |
| Rated current | 5 A |
| Calculated Volume (dm³) | 5.78 |
| Delivered Pressure | 8.5 bar |
| Distance between bolts | 80x80 mm |
| Port thread 3 | Integrated Silencer |
| Port thread 21 | M22 x 1.5 JED - 388-4 |
| Port thread 11 | M22 x 1.5 JED - 388-4 |
| Port Thread 42 | M16 x 1.5 JED-388-4 |
| Port Thread 43 | M16 x 1.5 JED-388-4 |
| Port thread 22 | M22 x 1.5 JED - 388-4 |
| Temperature Range | -40°C to +80°C |
| Protection class | IP 6K6K / IP 6K9K |
| Electrical connection | HDSCS connector Code |
Whether it’s for cars, buses, trucks, or trailers, WABCO® is at the frontline at developing and providing products and systems to make vehicles safer and easier to control. Founded in 1869, WABCO is a major supplier of braking, stability, suspension and transmissions in the Americas and beyond. The company is recognized as introducing the modern air brake system in 1869, and continues to lead the industry in air brake design and production for the heavy duty and commercial vehicle sectors. Today, WABCO operates as a division of the German auto parts maker ZF and employs 16,000 employees in facilities in 36 countries worldwide.
