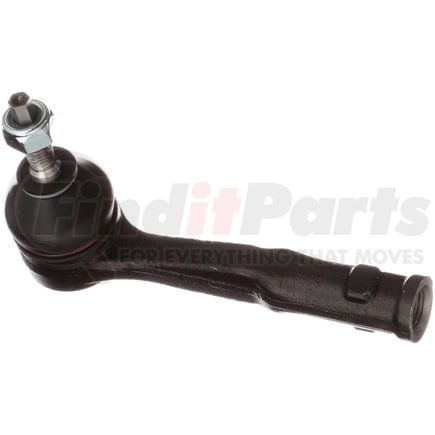

Need help? We're here!
(888) 312-8812 Login SignupDELPHI TA3382 Tie Rod End
Tap to view 20 more
$2399
Limited availability at this price!
In Stock
Get it by Wednesday, Dec 17
DELPHI TA3382 Part Description
Tie Rod End
DELPHI TA3382 Specifications
Product Attributes
| Position(s) | Front Right Outer |
| Length | 135.00 MM |
| Color | Black |
| End 1 Gender | Female |
| End 2 Gender | Male |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Dust Boot Included | Yes |
| Width | 40 MM |
| Type | Straight |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 10.00 MM |
| Height | 84.90 MM |
| Housing Material | Steel |
| Adjustable | Yes |
| Greaseable | No |
| Weight | 0.94 lb |
| Cone Outside Diameter | 0.450 IN |
| Bearing Material | Plastic |
| End 1 Thread Direction | Clockwise (Right) |
| End 2 Thread Direction | Clockwise (Right) |
| Stud Type | Threaded |
| End 2 Thread Pitch | 1.5 MM |
| End 1 Thread Pitch | 1.5 MM |
| Length - Stud Center to End | 5.315 IN |
| Length - Stud Center to End | 135.00 MM |
| Dust Boot Material | Rubber |
| Tie Rod Material | Steel |
| End 1 Thread Diameter | 14.00 MM |
| Shank Length | 0.450 IN |
| Stud Length | 11.43 MM |
| Grade Type | Standard |
| Boot Color | Black |
| Cone Outside Diameter | 11.43 MM |
| Grade | Premium |
| Shank Length | 11.43 MM |
| Stud Length | 0.450 IN |
| End 2 Thread Diameter | 0.394 IN |
| End 1 Thread Diameter | 0.551 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| UPC | 00689604377505 |
| VMRS Code | 015004019 |
| UNSPSC | 25174205 |
DELPHI TA3382 Part Interchanges
| Brand | Part Number |
|---|---|
| Fiat | 68273357AE, 68351 148AA |
| N/A | ES801214, TXMS25642, TO96082, MS25642, TO696082XL |
DELPHI TA3382 Fits Vehicles
- Jeep Compass (2017-2020)
- Fiat 500X (2016-2020)
- Jeep Renegade (2015-2018)
- Fiat 500L (2014-2020)
DELPHI TA3382 Manufacturer Information
Delphi® is committed to making a difference. With a global network of more than 2,400 service centers and a presence in over 150 countries, Delphi Technologies delivers OE-specific aftermarket parts and software solutions for a wide range of passenger vehicles, light and medium commercial vehicles, heavy-duty truck and commercial vehicles, as well as agricultural, marine, and industrial equipment. The company’s comprehensive product portfolio includes components for diesel fuel systems, engine management, gasoline fuel systems, vehicle electronics, and maintenance solutions. Delphi Technologies takes pride in its state-of-the-art manufacturing facility as well as OE-level diagnostic and test equipment that produces OE-quality aftermarket components to make vehicles and trucks run cleaner, drive better, and last further.
