BILSTEIN 41-322673 Part Description
Manufacturer
Product Description
B8 8112 (ZoneControl CR) - Front Left Corner Module
Application Summary
Toyota Tacoma 2022-2005
Features & Benefits
- ZoneControl® CR: Position sensitive damping with 3 compression zones and 2 rebound zones, controlled by 3 independent pistons
- Triple piston design delivers comfort during every day driving conditions and maximum control under large suspension inputs
- 60mm remote reservoir for increased oil capacity and cooling

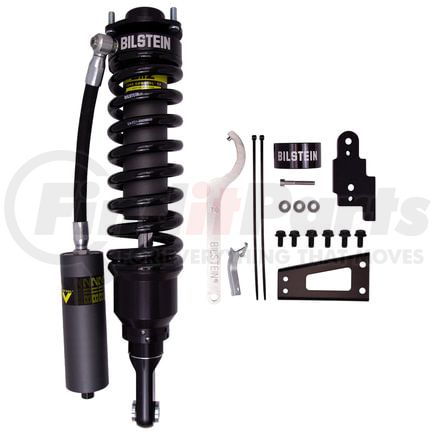

60mm Front Left Corner Module
BILSTEIN 41-322673 Specifications
Product Attributes
| Adjustable Damping | Non-Adjustable |
| Body Design | Smooth Body (Coilover) |
| Body Diameter (id) | 60mm |
| Body Material | Steel |
| Boot Included | No |
| Collapsed Length (in) | 17.43 |
| Collapsed Length (mm) | 442.6 |
| Extended Length (in) | 22.39 |
| Extended Length (mm) | 568.8 |
| Finish | Dampers: EVO Grey/Springs: Black |
| Internal Design | Monotube |
| Lower Mount Type | Eye 14.1mm |
| Optional Heavy Load Springs | 53-291387, 53-332837 |
| RESERVOIR | Yes |
| Series | B8 8112 (ZoneControl CR) |
| Spring Seat Included | Yes |
| Title | Bilstein Shock Absorbers |
| Upper Mount Type | Special |
| Segment | Light Truck |
| Prop 65 (Y/N) | Y |
| Parttype | Shocks / Struts |
| Piston Diameter | 60mm |
| Front Main Spring Rate (lbs/in) | 600 lbs |
| Shaft Diameter (MM) | 22.0 |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8708800050 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| MSDS Sheet Number | USA SDS_Shock_Air Spring_V2_EN.pdf |
| Refurbished Part | N |
| Remanufactured Part | N |
| Warranty Time | 24 |
| Warranty Time UOM | MO |
| UPC | 00651860882666 |
BILSTEIN 41-322673 Cross References
BILSTEIN 41-322673 Fits Vehicles
- Toyota Tacoma (2005-2023)
BILSTEIN 41-322673 Customer Reviews
No reviews yet
Be the first to review this product!
BILSTEIN 41-322673 Manufacturer Information
About BILSTEIN Of America
Founded in 1873, BILSTEIN is a world leading manufacturer of monotube gas pressure shock absorbers. With their main headquarters located in Germany, BILSTEIN is an original equipment supplier to BMW, Jaguar, Mercedes-Benz, Porsche, GM, Chrysler, Ford, Toyota and many others. Today, BILSTEIN Aftermarket and Motorsports has grown to nearly 630 employees located in three locations around the United States and distributes more than 3,500 part numbers into the U.S. aftermarket. BILSTEIN operates within ThyssenKrupp Component Technologies Group.
