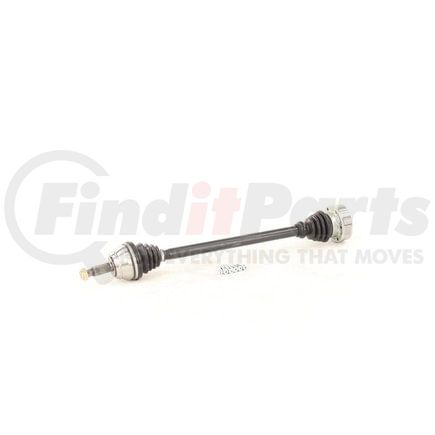

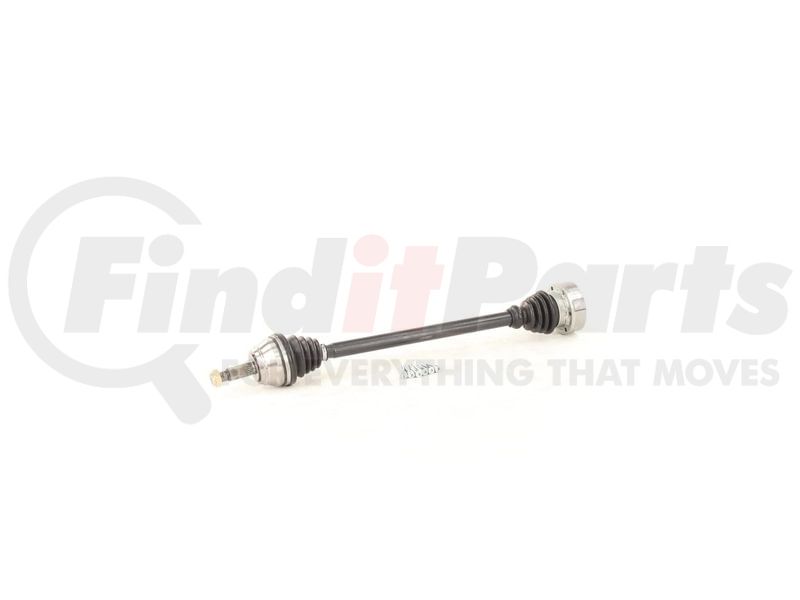

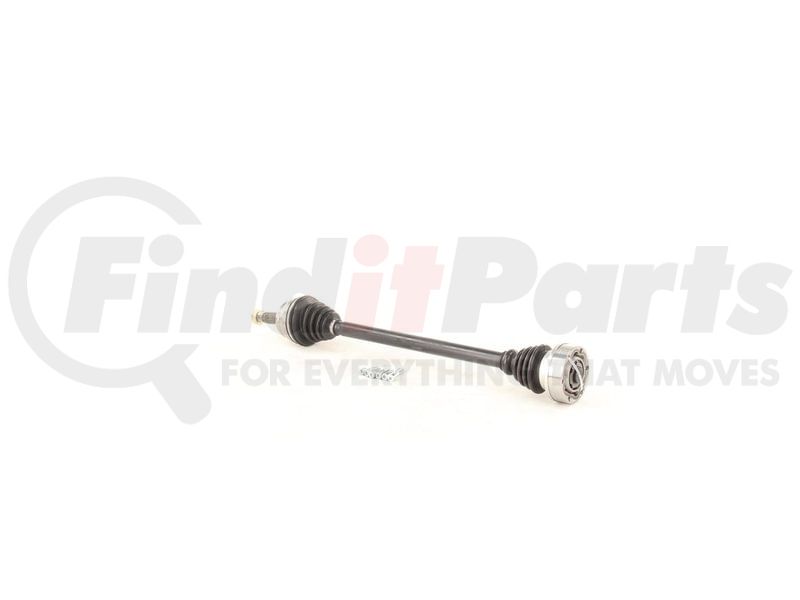

TrakMotive VW-8007 - CV Axle Shaft
- Part Number
- VW-8007
- Manufacturer
- TRAKMOTIVE
- Description
-
CV Axle Shaft
details
$10549
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
TRAKMOTIVE part description
Product Description
CV Axle Shaft
Product Attributes
ABS Ring Tooth Count | 0 |
ABS Ring Type | N/A |
Abs Tone Ring Included | No |
Axle Bolt Hex Size (mm) | N/A |
Axle Bolt Length (mm) | N/A |
Axle Bolt Thread Size | N/A |
Axle Nut Head Type | Hex |
Axle Nut Height (in) | .56 |
Axle Nut Height (mm) | 14 |
Axle Nut Hex Size (in) | 1.67 |
Axle Nut Hex Size (mm) | 30 |
Axle Nut Included | Yes |
Axle Nut Length (in) | 1.33 |
Axle Nut Length (mm) | 35 |
Axle Nut Locking Type | Self-Lock |
Axle Nut Thread Size | M20x1.5 |
Boot Material | Neoprene |
Inboard Bolt Head Size (in) | .25 |
Inboard Bolt Head Size (mm) | 6 |
Inboard Bolt Head Type | Allen |
Inboard Bolt Length (in) | 2.22 |
Inboard Bolt Length (mm) | 57 |
Inboard Bolt Thread Size | M8x1.25 |
Inboard Joint Type | Bolt-On |
Inboard Shaft Connection Style | Bolt-On |
New Or Remanufactured | New |
Number of Bolt Holes | 0 |
Number Of Inboard Joint Bolt Holes | 6 |
Number Of Inboard Shaft Bolts | 6 |
Number Of Inboard Splines | 0 |
Number Of Outboard Joint Bolt Holes | 0 |
Number Of Outboard Shaft Bolts | 0 |
Number Of Outboard Splines | 22 |
Outboard Bolt Head Size (in) | N/A |
Outboard Bolt Head Size (mm) | N/A |
Outboard Bolt Head Type | N/A |
Outboard Bolt Length (in) | N/A |
Outboard Bolt Length (mm) | N/A |
Outboard Joint Bolt Thread Size | N/A |
Outboard Joint Type | Conventional |
Outboard Shaft Connection Style | Conventional |
Overall Compressed Length (in) | 29.37 |
Overall Compressed Length (mm) | 746 |
Axle Nut Socket Size | 30 |
Grade Type | Premium |
Inboard Joint Boot Material | Neoprene |
Outboard Joint Boot Material | Neoprene |
Additional Information
Country of Origin (Primary) | CN |
Harmonized Tariff Code (HTS) | 8708508500 |
UPC | 00844084097071 |
Part Interchanges
- ARC 80-3112
- EMPI 80-6803
- Car Components Technologies (CCT) 7522
- Mevotech CV7020
- Carquest 410438
- USA Industries AX-6510
- American Remanufactured 40-18828
- Drive Tech America VW-8828
- Fenwick CV6510
- CARDONE Reman 66-7014
- IMC 40754008
- OEM Part Number 191407272AQ
- OEM Part Number 191407272AS
- OEM Part Number 191407272BB
- OEM Part Number 191407274FX
- Altrom Group 652732
- ODM VW-8-8508
- TrakMotive VW-8007
- 410438
- NCV72016
- 75984
- MX-18828
- 349007
Fits Vehicles
- Volkswagen Scirocco (1985-1989)
- Volkswagen Cabriolet (1985-1993)
