(888) 312-8812 Login SignupCENTRIC 125.35024 Centric Premium High Carbon Alloy Brake Rotor
Tap to view 1 more
$97.30
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
CENTRIC 125.35024 Part Description
Manufacturer
Product Description

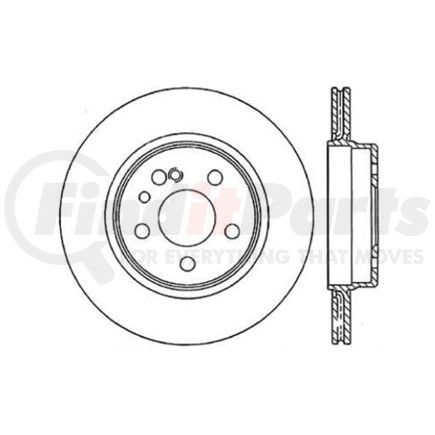

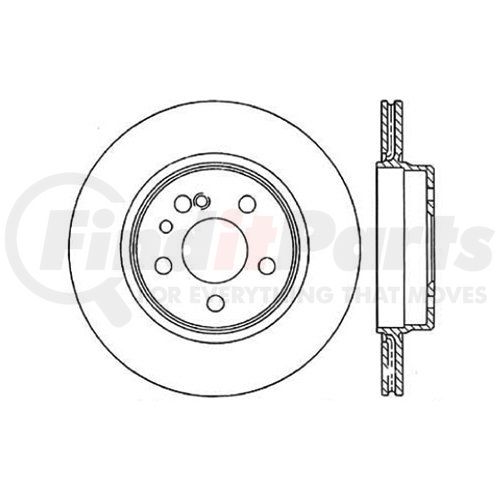

Centric Premium High Carbon Alloy Brake Rotor
Features & Benefits
- Centric Premium Rotor with advanced metallurgy that greatly reduces pad squeal. Especially effective with higher friction; European style brake pad compounds. Added Molybdenum and Chromium to resist rotor cracking
- Painted hat and outer edge for corrosion resistance
- Painted Hat and Outer Edge
- Optimal Surface Finish
- Optimal surface finish for consistent stopping feel from the first stop
- Advanced Metallurgy
- Advanced metallurgy for optimal heat transfer and structural strength
- OE Vane Design and Plate Thickness
- OE vane design and plate thickness for heat capacity and strength
- Low Initial Lateral Run-Out
- Low initial lateral run-out and disc thickness variation for smooth, vibration free stopping
- Precision Balance
- Precision balance for vibration free performance

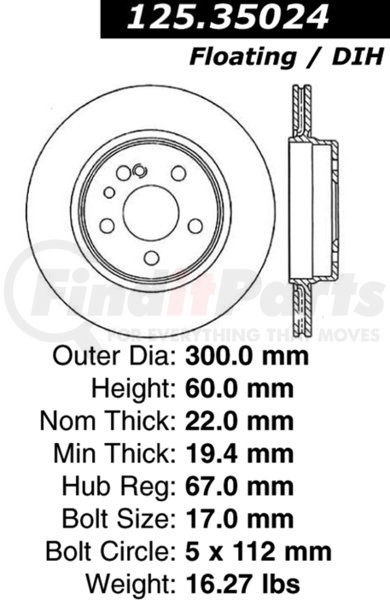

CENTRIC 125.35024 Specifications
Product Attributes
| Vane Style [cntrc] | Straight |
| Weight [cntrc] Kgs | 7.400 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Disc Mounting [cntrc] | Floating / DIH |
| Misc Holes [cntrc] | 2 |
| Weight [cntrc] Lbs | 16.270 |
| Product Grade [cntrc] | Premium |
| Discard Thickness | 19.400 MM |
| Discard Thickness | 0.764 IN |
| Nominal Thickness | 22.000 MM |
| Nominal Thickness | 0.866 IN |
| Hat Finish | Painted |
| Overall Height | 60.000 MM |
| Overall Height | 2.362 IN |
| Outside Diameter | 300.000 MM |
| Outside Diameter | 11.811 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Nominal Drum Diameter | 164.000 MM |
| Nominal Drum Diameter | 6.457 IN |
| Bearings Included | No |
| Center Hole Diameter | 67.000 MM |
| Center Hole Diameter | 2.638 IN |
| Mounting Bolt Hole Circle Diameter | 112.000 MM |
| Mounting Bolt Hole Circle Diameter | 4.409 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 0.669 IN |
| Stud/Lug Hole Diameter | 17.000 MM |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 00805890130482 |
CENTRIC 125.35024 Cross References
| Brand | Part Number |
|---|---|
| N/A | 0832457, BD125416, 422133, E130-40-029, 34045, 106561, 34045G, 1404230412, 110285, 141813, 86390, 4886390, 1152, EBR435, E12540029, 1.2826.6.4, MR431V, YH141813, X50982, 25383, 96390P, DF2596, 8974023, 142438, 90063024, 400.1424.00 |
| RAYBESTOS | 96390, 96390R |
| Raybestos Brakes | 96390R, 96390 |
CENTRIC 125.35024 Fits Vehicles
- Mercedes-Benz S600 (1994-1999)
- Mercedes-Benz S500 (1994-1999, 2005)
- Mercedes-Benz S420 (1994-1999)
- Mercedes-Benz CL600 (1998-1999)
- Mercedes-Benz CL500 (1998-1999)
- Mercedes-Benz 600SEL (1992-1993)
- Mercedes-Benz 600SEC (1993)
- Mercedes-Benz 500SEL (1992-1993)
- Mercedes-Benz 500SEC (1993)
- Mercedes-Benz 400SEL (1993)
- Mercedes-Benz 400SE (1992)
