(888) 312-8812 Login SignupCENTRIC 122.50003 Premium Brake Drum
Tap to view 1 more
$41.18
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
CENTRIC 122.50003 Part Description
Manufacturer
Features & Benefits
- For best operation and ultimate strength
- OE-Matched Fit, Form, and Function
- 100% Mill Balanced
- For vibration free performance
- Black Painted Exterior
- For corrosion resistance

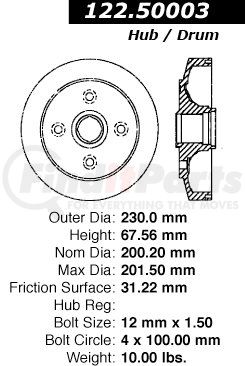

CENTRIC 122.50003 Specifications
Product Attributes
| Weight [cntrc] Kgs | 4.545 |
| Weight [cntrc] Lbs | 10.000 |
| Mounting Type [cntrc] | Hub & Drum |
| Bolt Circle Diameter [cntrc] Mm | 100.000 |
| Bolt Circle Diameter [cntrc] In | 3.937 |
| Stud Thread Pitch [cntrc] Mm | 1.50 |
| Hub Hole / Register [cntrc] Mm | 54.000 |
| Hub Hole / Register [cntrc] In | 2.126 |
| Height [cntrc] Mm | 67.560 |
| Height [cntrc] In | 2.660 |
| Friction Surface Width [cntrc] Mm | 31.220 |
| Friction Surface Width [cntrc] In | 1.229 |
| Product Grade [cntrc] | Premium |
| Stud Thread Size | 12 MM |
| Maximum Brake Diameter (Discard) | 201.000 MM |
| Maximum Brake Diameter (Discard) | 7.913 IN |
| Bolt Hole Quantity | 4 |
| Outside Diameter | 230.000 MM |
| Outside Diameter | 9.055 IN |
| Outer Cooling Fins | No |
| Nominal Drum Diameter | 200.200 MM |
| Nominal Drum Diameter | 7.880 IN |
