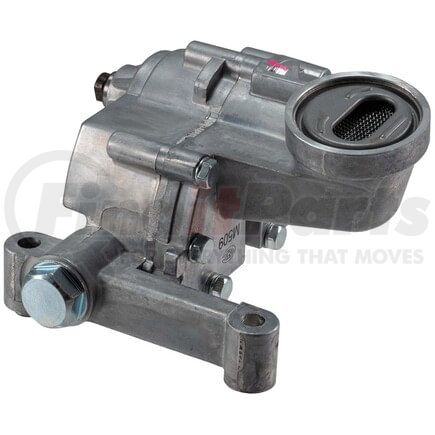

(888) 312-8812 Login SignupMELLING ENGINE PRODUCTS M509 M509 Stock Replacement : Standard Volume, Standard Pressure, Aluminum Oil Pump
Tap to view 4 more
$18349
Limited availability at this price!
In Stock
Get as soon as Monday, Sep 21
MELLING ENGINE PRODUCTS M509 Part Description
MELLING ENGINE PRODUCTS M509 Specifications
Product Attributes
| Title | Engine Oil Pump |
| Gear Material | Powdered Metal |
| Width | 6.5 IN |
| Width | 165.0 MM |
| Height | 6.5 IN |
| Height | 165.0 MM |
| Grade Type | Standard Replacement |
| Gasket Or Seal Included | No |
| Mounting Hole Quantity | 3 |
| Housing Material | Aluminum |
| Drive Type | Drive Shaft |
| Oil Pump Type | Gear |
| Pickup Screen Diameter | 1.75 IN |
| Pickup Screen Diameter | 44.0 MM |
| Pickup Tube Diameter | 1.25 IN |
| Pickup Tube Diameter | 32.0 MM |
| Solenoid Included | No |
| Drive Shaft Included | No |
| Mounting Hole Diameter | 0.375 IN |
| Mounting Hole Diameter | 10.0 MM |
| Adjustable Bypass Pressure | No |
| Additional Cover Shaft Support | No |
| Alternate Pressure Springs Included | No |
| Anti-Cavitation | No |
| Adjustable Pickup Screen | No |
| Drive Sprocket Included | No |
| Oil Pump Pressure Type | Standard Pressure |
| Oil Pump Volume Type | Standard Volume |
| Finish | Rust Preventative |
| Governor Spinner Included | No |
| Guide Included | No |
| Nylon Bushing Included | No |
| O-Ring Included | Yes |
| Pump Cover Included | Yes |
| Shaft Material | Not Applicable |
| Timing Cover Included | No |
| Washers Included | No |
| Pickup Screen Included | Yes |
| Intermediate Shaft Included | Not Applicable |
| Inlet Size (in) | 1.250 |
| Spacer Included | No |
| Gears Included | Yes |
| Inlet Size (mm) | 32.00 |
| Cover Material | Aluminum |
| Bolts Included | No |
| Bushing Included | No |
| Cotter Pin Included | No |
Additional Information
| Harmonized Tariff Code (HTS) | 8413309060 |
| Harmonized Tariff Code (Schedule B) | 8413309000 |
| Warranty Time UOM | MO |
| Warranty Time | 12 |
| Country of Origin (Primary) | TW |
| UPC | 00729295105862 |
MELLING ENGINE PRODUCTS M509 Cross References
| Brand | Part Number |
|---|---|
| Enginetech | N/A |
| ITM Engine Components | N/A |
| MELLING ENGINE PRODUCTS | M509 |
| Mitsubishi | 1211A006, 1211A039 |
| N/A | M509, OP176 |
| Safety Auto Parts Corp | N/A |
| Topline | OPMI37 |
MELLING ENGINE PRODUCTS M509 Fits Vehicles
- Mitsubishi Outlander Sport (2011-2020)
- Mitsubishi Lancer (2007-2017)
