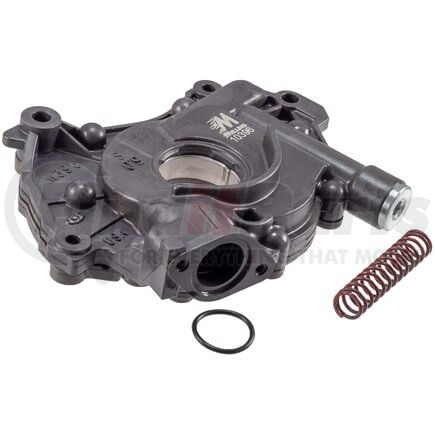

(888) 312-8812 Login SignupMELLING ENGINE PRODUCTS 10396 10396 High Performance, Standard Volume, High Pressure, Anodized Hardcoat Oil Pump With Gasket
Tap to view 4 more
$23399
Limited availability at this price!
In Stock
Get as soon as Tuesday, Sep 22
MELLING ENGINE PRODUCTS 10396 Part Description
Manufacturer
Product Description
High Performance Oil Pump
Features & Benefits
- Standard volume high pressure performance upgrade of the M396.
- Hard coat anodized body with a cast iron phoshate coated cover.
- The relief valve features a threaded plug instead of a cup plug.
- Assembled using a +5 psi spring and supplied with lower pressure standard spring.
- Uses 1" diameter bolt on screen.
MELLING ENGINE PRODUCTS 10396 Specifications
Product Attributes
| Title | High Performance Oil Pump |
| Width | 7.750 IN |
| Width | 197.00 MM |
| Height | 6.750 IN |
| Height | 171.00 MM |
| Grade Type | Performance |
| Gasket Or Seal Included | Yes |
| Mounting Hole Quantity | 4 |
| Housing Material | Cast Aluminum |
| Drive Type | Crankshaft |
| Rotor Material | Steel |
| Oil Pump Type | Rotary |
| Pickup Tube Diameter | 1.000 IN |
| Pickup Tube Diameter | 25.00 MM |
| Mounting Hole Diameter | 0.375 IN |
| Mounting Hole Diameter | 10.00 MM |
| Adjustable Bypass Pressure | Yes |
| Alternate Pressure Springs Included | Yes |
| Oil Pump Pressure Type | High Pressure |
| Oil Pump Volume Type | Standard Volume |
| Additional Pressure Over Stock Percentage | 5 PSI |
| Upgrade for Pump Number | M395, M396 |
| Optional Spring Pressure 1 | (Red) 95 PSI |
| Manufactured For | Ford Modular |
| Manufactured Pressure | (Blue) 110 PSI |
| Optional Spring Pressure 2 | N/A |
| Screen Information | 1.00" Bolt On |
| Bolts Included | No |
| Bushing Included | No |
| Cotter Pin Included | No |
| Cover Material | Cast Iron |
| Gears Included | Not Applicable |
| Governor Spinner Included | No |
| Guide Included | Not Applicable |
| Inlet Size (mm) | 25.00 |
| Nylon Bushing Included | No |
| Hardware Included | No |
| Inlet Size (in) | 1.000 |
| Intermediate Shaft Included | Not Applicable |
| Pickup Screen Included | No |
| Shaft Material | Not Applicable |
| Timing Cover Included | No |
| O-Ring Included | Yes |
| Pump Cover Included | Yes |
| Spacer Included | No |
| Washers Included | No |
| Housing Finish | Anodized |
Additional Information
| Harmonized Tariff Code (HTS) | 8413309060 |
| Harmonized Tariff Code (Schedule B) | 8413309000 |
| Country of Origin (Primary) | US |
| UPC | 00729295105350 |
MELLING ENGINE PRODUCTS 10396 Fits Vehicles
- Ford F-150 (2011-2017)
- Ford Mustang (2011-2017)
