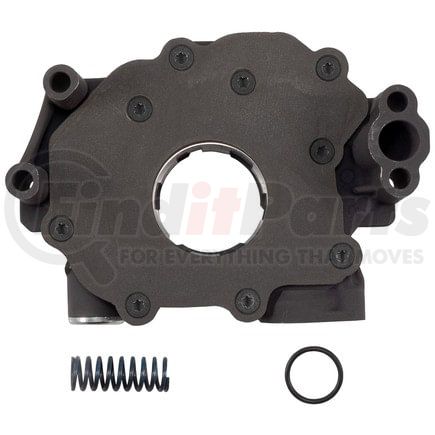

MELLING ENGINE PRODUCTS 10452 Part Description
Manufacturer
Product Description
High Performance Oil Pump
Features & Benefits
- Standard volume high pressure performance upgrade of the M452 and M462
- Hard coat anodized body with a cast iron phoshate coated cover.
- Adjustable by-pass pressure using installed higher pressure relief spring (+20 psi M452 and +10 psi M462) or optional lower pressure relief spring.
- Uses 1" diameter bolt on screen.
- Cast Aluminum Housing
- Includes O-Ring For Oil Pickup Tube Assembly
MELLING ENGINE PRODUCTS 10452 Specifications
Product Attributes
| Title | High Performance Oil Pump |
| Width | 7.250 IN |
| Width | 184.00 MM |
| Height | 5.200 IN |
| Height | 132.00 MM |
| Grade Type | Performance |
| Gasket Or Seal Included | Yes |
| Mounting Hole Quantity | 4 |
| Housing Material | Cast Aluminum |
| Drive Type | Crankshaft |
| Oil Pump Type | Rotary |
| Pickup Tube Diameter | 1.000 IN |
| Pickup Tube Diameter | 25.00 MM |
| Mounting Hole Diameter | 0.350 IN |
| Mounting Hole Diameter | 9.00 MM |
| Alternate Pressure Springs Included | Yes |
| Oil Pump Pressure Type | High Pressure |
| Oil Pump Volume Type | Standard Volume |
| Additional Pressure Over Stock Percentage | 20 PSI |
| Manufactured For | Chrysler HEMI |
| Manufactured Pressure | (Green) 75 PSI |
| Upgrade for Pump Number | M452 |
| Optional Spring Pressure 1 | (Blue) 65 PSI |
| Optional Spring Pressure 2 | N/A |
| Screen Information | 7/8" Bolt On |
| Bolts Included | No |
| Bushing Included | No |
| Cotter Pin Included | No |
| Cover Material | Cast Iron |
| Gears Included | Not Applicable |
| Governor Spinner Included | No |
| Guide Included | Not Applicable |
| Hardware Included | No |
| Inlet Size (in) | 1.000 |
| Intermediate Shaft Included | Not Applicable |
| Inlet Size (mm) | 25.00 |
| Nylon Bushing Included | No |
| O-Ring Included | Yes |
| Pump Cover Included | Yes |
| Spacer Included | No |
| Pickup Screen Included | No |
| Shaft Material | Not Applicable |
| Timing Cover Included | No |
| Washers Included | No |
| Rotor Material | Steel |
| Housing Finish | Anodized |
Additional Information
| Harmonized Tariff Code (HTS) | 8413309060 |
| Harmonized Tariff Code (Schedule B) | 8413309000 |
| Country of Origin (Primary) | US |
| UPC | 00729295105343 |
MELLING ENGINE PRODUCTS 10452 Fits Vehicles
- Jeep Grand Wagoneer (2022-2023)
- Jeep Wagoneer (2022-2023)
- Jeep Grand Cherokee L (2021-2023)
- Jeep Wrangler (2021-2023)
- Ram 1500 Classic (2019-2023)
- Ram 5500 (2014-2023)
- Ram 4500 (2014-2023)
- Ram 3500 (2011-2023)
- Ram 2500 (2011-2023)
- Ram 1500 (2011-2023)
- Jeep Commander (2009-2010)
- Dodge Ram 2500 (2009-2010)
- Dodge Ram 3500 (2009)
- Jeep Grand Cherokee (2009-2023)
- Dodge Ram 1500 (2009-2010)
- Dodge Charger (2009-2023)
- Dodge Challenger (2009-2023)
- Chrysler 300 (2009-2023)
- Chrysler Aspen (2009)
- Dodge Durango (2009, 2011-2023)
