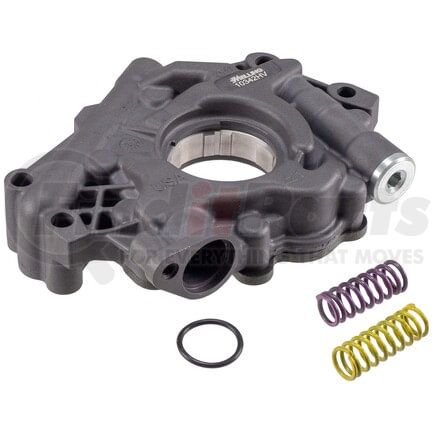

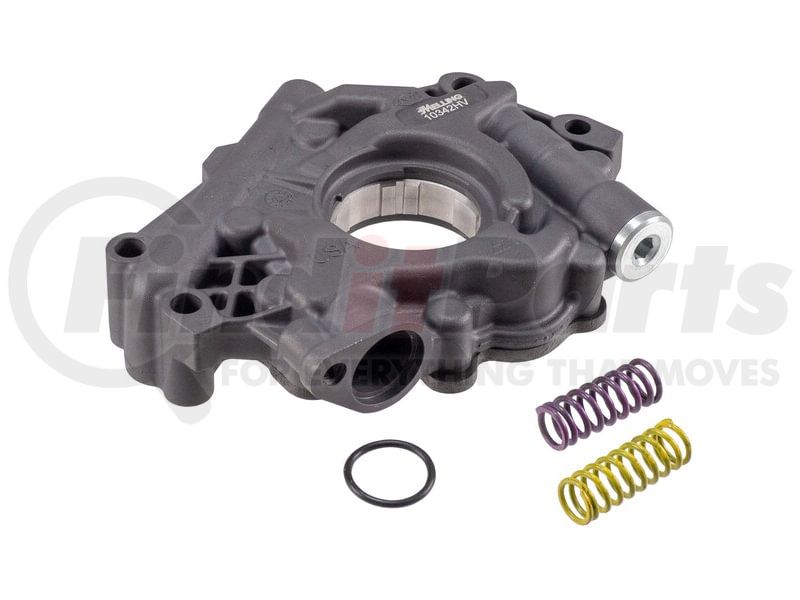

MELLING ENGINE PRODUCTS 10342HV Part Description
Manufacturer
Product Description
High Performance Oil Pump
Features & Benefits
- High volume high pressure performance upgrade of the 10342.
- Hardcoat anodized body with cast iron phosphate coated cover from improved pump performance and durability.
- stable by-pass pressure using supplied stock spring and +10 psi installed spring.
- The cup plugs have been replaced with threaded fittings.
- Uses a 1-1/8th" bolt on screen.
- Exclusive Rotor Set
MELLING ENGINE PRODUCTS 10342HV Specifications
Product Attributes
| Title | High Performance Oil Pump |
| Width | 7.250 IN |
| Width | 154.00 MM |
| Height | 5.500 IN |
| Height | 139.00 MM |
| Grade Type | Performance |
| Gasket Or Seal Included | Yes |
| Mounting Hole Quantity | 4 |
| Housing Material | Cast Aluminum |
| Drive Type | Crankshaft |
| Rotor Material | Sintered Metal |
| Oil Pump Type | Cresent |
| Pickup Tube Diameter | 1.125 IN |
| Pickup Tube Diameter | 29.00 MM |
| Mounting Hole Diameter | 0.380 IN |
| Mounting Hole Diameter | 10.00 MM |
| Adjustable Bypass Pressure | Yes |
| Alternate Pressure Springs Included | Yes |
| Oil Pump Pressure Type | High Pressure |
| Oil Pump Volume Type | High Volume |
| Additional Pressure Over Stock Percentage | 10 |
| Additional Volume Over Stock Percentage | 20% |
| Upgrade for Pump Number | M342 |
| Optional Spring Pressure 1 | (Yellow) 50 PSI |
| Manufactured For | Chrysler HEMI |
| Manufactured Pressure | (Red) 60 PSI |
| Optional Spring Pressure 2 | N/A |
| Screen Information | 7/8" Bolt On |
| Bolts Included | No |
| Bushing Included | No |
| Cotter Pin Included | No |
| Cover Material | Cast Iron |
| Gears Included | Not Applicable |
| Governor Spinner Included | No |
| Guide Included | Not Applicable |
| Inlet Size (mm) | 29.00 |
| Nylon Bushing Included | No |
| Hardware Included | No |
| Inlet Size (in) | 1.125 |
| Intermediate Shaft Included | Not Applicable |
| Pickup Screen Included | No |
| Shaft Material | Not Applicable |
| Timing Cover Included | No |
| O-Ring Included | Yes |
| Pump Cover Included | Yes |
| Spacer Included | No |
| Washers Included | No |
| Housing Finish | Anodized |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8413309000 |
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (HTS) | 8413309060 |
| UPC | 00729295106128 |
MELLING ENGINE PRODUCTS 10342HV Fits Vehicles
- Dodge Challenger (2008-2010)
- Chrysler Aspen (2007)
- Dodge Charger (2006-2010)
- Chrysler 300 (2005-2010)
- Dodge Magnum (2005-2008)
- Dodge Durango (2004-2008)
- Dodge Ram 3500 (2003-2008)
- Dodge Ram 2500 (2003-2008)
- Dodge Ram 1500 (2003-2008)
