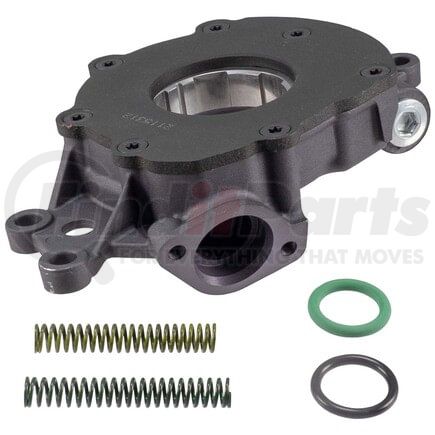

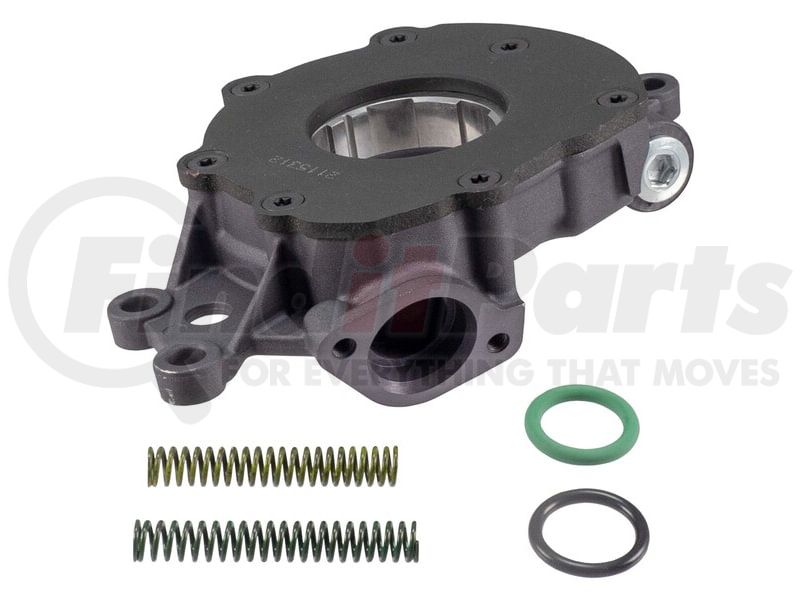

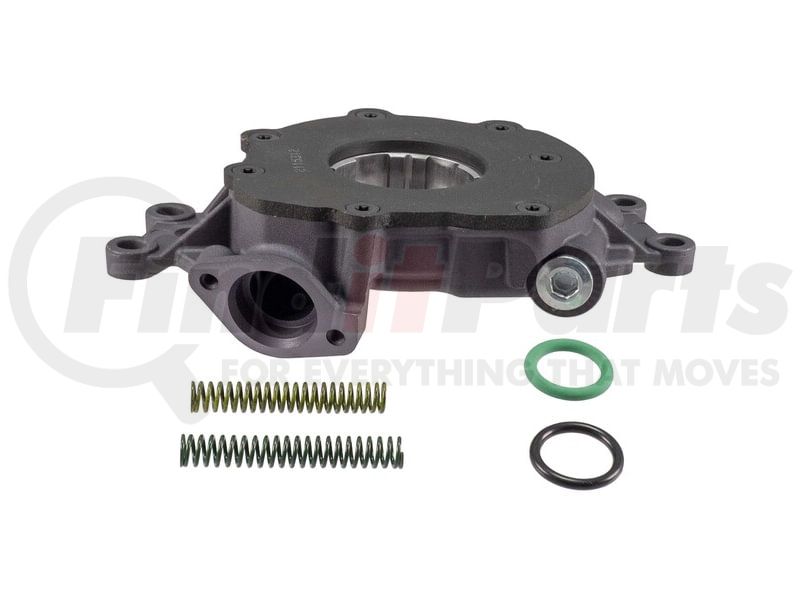

(888) 312-8812 Login SignupMELLING ENGINE PRODUCTS 10355HV 10355HV High Performance, High Volume, High Pressure, Anodized Hardcoat Oil Pump With Gasket
Tap to view 4 more
$32549
Limited availability at this price!
In Stock
Get it by Tuesday, Sep 1
MELLING ENGINE PRODUCTS 10355HV Part Description
Manufacturer
Product Description
High Performance Oil Pump
Features & Benefits
- High volume performance upgrade for the M365HV.
- 20% increase in volume over the M355, M365, and 10355.
- Hard coat anodized body with a cast iron phoshate coated cover.
- The relief valve features a screw in valve plug.
- Includes optional +20 psi pressure relief spring.
- Uses standard 7/8" diameter bolt on screen.
- Cast Aluminum Housing
- Steel Rotors
- Includes O-Ring For Screen Installation
MELLING ENGINE PRODUCTS 10355HV Specifications
Product Attributes
| Title | High Performance Oil Pump |
| Width | 8.250 IN |
| Width | 210.00 MM |
| Height | 4.250 IN |
| Height | 108.00 MM |
| Grade Type | Standard Replacement |
| Gasket Or Seal Included | Yes |
| Mounting Hole Quantity | 4 |
| Housing Material | Cast Aluminum |
| Drive Type | Crankshaft |
| Rotor Material | Steel |
| Oil Pump Type | Rotary |
| Pickup Tube Diameter | 0.875 IN |
| Pickup Tube Diameter | 22.00 MM |
| Mounting Hole Diameter | 0.360 IN |
| Mounting Hole Diameter | 9.00 MM |
| Adjustable Bypass Pressure | Yes |
| Alternate Pressure Springs Included | Yes |
| Oil Pump Pressure Type | Standard Pressure |
| Oil Pump Volume Type | High Volume |
| Additional Volume Over Stock Percentage | 20% |
| Upgrade for Pump Number | M365HV |
| Optional Spring Pressure 1 | (Yellow) 60 PSI |
| Manufactured For | GM LS |
| Manufactured Pressure | (Orange) 70 PSI |
| Optional Spring Pressure 2 | (Green) 80 PSI |
| Screen Information | 1.10" Bolt On |
| Bolts Included | No |
| Bushing Included | No |
| Cotter Pin Included | No |
| Cover Material | Cast Iron |
| Gears Included | Not Applicable |
| Governor Spinner Included | No |
| Guide Included | Not Applicable |
| Inlet Size (mm) | 30.50 |
| Nylon Bushing Included | No |
| Hardware Included | No |
| Inlet Size (in) | 1.200 |
| Intermediate Shaft Included | Not Applicable |
| Pickup Screen Included | No |
| Shaft Material | Not Applicable |
| Timing Cover Included | No |
| O-Ring Included | Yes |
| Pump Cover Included | Yes |
| Spacer Included | No |
| Washers Included | No |
| Housing Finish | Anodized |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8413309000 |
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (HTS) | 8413309060 |
| UPC | 00729295105404 |
MELLING ENGINE PRODUCTS 10355HV Fits Vehicles
- Cadillac Escalade EXT (2007-2013)
- Cadillac Escalade ESV (2007-2014)
- Chevrolet Trailblazer EXT (2005-2006)
- GMC Envoy XL (2005-2006)
- GMC Envoy XUV (2005)
- Chevrolet Caprice (2011-2017)
- Hummer H3T (2010)
- Hummer H3 (2010)
- GMC Canyon (2010-2012)
- Chevrolet Colorado (2010-2012)
- GMC Sierra (2008-2010)
- Chevrolet Camaro (2010-2015)
- Cadillac CTS (2009-2015)
- Buick Allure (2008-2009)
- Hummer H2 (2008-2009)
- Pontiac G8 (2008-2009)
- Chevrolet Tahoe (2008-2011)
- Buick LaCrosse (2008-2009)
- GMC Sierra 1500 (2007-2013)
- Chevrolet Silverado 1500 (2007-2013)
- GMC Yukon XL 1500 (2007-2014)
- Chevrolet Suburban 1500 (2007-2014)
- Chevrolet Avalanche (2007-2009, 2011-2013)
- GMC Yukon (2007-2014)
- Cadillac Escalade (2007-2014)
- Chevrolet Monte Carlo (2006-2007)
- Chevrolet Trailblazer (2006-2008)
- Chevrolet Impala (2006-2009)
- Saab 9-7x (2005-2009)
- Pontiac Grand Prix (2005-2008)
- GMC Envoy (2005-2009)
- Buick Rainier (2005-2007)
- Isuzu Ascender (2003-2006)
