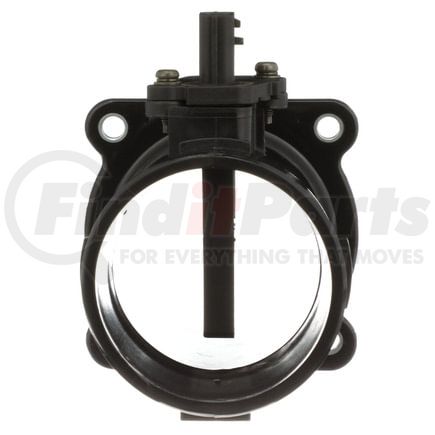

DELPHI AF10174 Mass Air Flow Sensor

★★★★★ (0)

$118.49

Limited availability at this price!

In Stock

Get as soon as Monday, Nov 23
30-day Return Policy On eligible items Details
Free Ground shipping on orders over $499 details

DELPHI AF10174 Part Description

Manufacturer

DELPHI

Product Description

Mass Air Flow Sensor

Features & Benefits

  • Delphi mass air flow sensors are the global benchmark for accuracy and signal noise
  • Delphi mass air flow sensors feature high quality sensing elements for outstanding performance over a wide range of ambient temperatures
  • Delphi is a manufacturer of OE mass air flow sensors since their first use over 30 years ago
  • All parts are calibrated and tested to match the OE part
  • Probe solution offered wherever possible to reduce repair time by eliminating the need to replace the flow tube
  • Delphi OE technology validated to match the vehicle applications
Mass Air Flow Sensor

DELPHI AF10174 Specifications

Product Attributes

Item GradePremium
Package ContentsMass Air Flow Sensor - Complete Assembly
ColorBlack
Housing IncludedYes
Inlet Connection Diameter61.8 MM
Outlet Connection Diameter2.8 IN
Outlet Connection Diameter71.2 MM
Terminal TypePin
Mounting Hardware IncludedNo
Universal Or Specific FitSpecific
Grade TypeStandard Replacement
Connector Quantity1
Connector ShapeRectangle
Mounting Hole Quantity4
Housing MaterialPlastic
Terminal Quantity5
Connector GenderFemale
Terminal GenderMale
Wiring Harness IncludedNo
Mounting TypeBolt-On
Mounting Bracket IncludedNo
Inlet Connection Diameter2.4 IN
Sensor Casing Length109.5 MM
Sensor Casing Width84 MM
Voltage12.0 2H
Gasket Or Seal IncludedYes
Bolt Hole Center To Bolt Hole Center65.90 MM
Mounting Hole Diameter6.5 MM
Seal Outside Diameter70 mm
Seal Quantity1
Sensor Casing Length4.3 IN
Sensor Casing Width3.3 IN
Bolt Hole Center To Bolt Hole Center2.50 IN
Mounting Hole Diameter0.2 IN
Seal Outside Diameter2.7 IN
Intake Air Temperature (IAT) IncludedYes

Additional Information

Warranty Distance UOMDH
Warranty Distance12000
Harmonized Tariff Code (Schedule B)9026800000
Warranty Time UOMMO
Warranty Time12
Country of Origin (Primary)CN
Harmonized Tariff Code (HTS)9026802000
UPC00689604374467
VMRS Code045021019
UNSPSC41111931

DELPHI AF10174 Cross References

BrandPart Number
Datsun/Nissan22680-AW400
N/AMA159, MAF0130, 74-50073, MF21149, MF21149N, MA202, MA901
SPECTRA PREMIUMMA159

DELPHI AF10174 Fits Vehicles

  • Nissan Sentra (2000-2006)
