DELPHI TC7761 Part Description
Manufacturer
Product Description

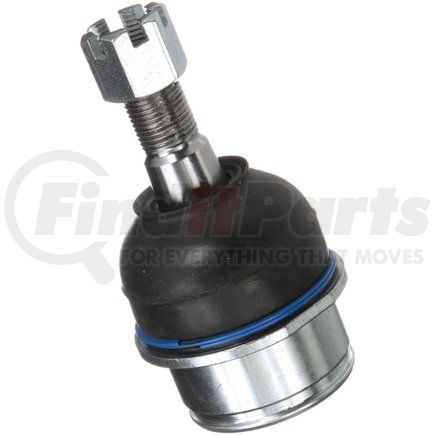

Ball Joint
Features & Benefits
- Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
- Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
- Delphi machines to micron tolerances to guarantee durability and smooth joint operation
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Ball Joint
DELPHI TC7761 Specifications
Product Attributes
| Position(s) | Front Lower |
| Material | Steel |
| Maximum Outside Diameter | 2.638 IN |
| Maximum Outside Diameter | 67.00 MM |
| Color | Gray |
| Stud Thread Diameter | 18 MM |
| Castle Nut Included | Yes |
| Grease Fitting Included | No |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Width | 64 MM |
| Cotter Pin Included | Yes |
| Cotter Pin Hole | Yes |
| Mounting Hardware Included | Yes |
| Washers Included | No |
| Height | 4.567 IN |
| Height | 116.00 MM |
| Nuts Included | Yes |
| Adjustable | No |
| Greaseable | No |
| Stud Thread Length | 1.26 IN |
| Stud Thread Length | 32 MM |
| Stud Type | Threaded |
| Mounting Type | Press-In |
| Dust Boot Material | Rubber |
| Mounting Bolts Included | No |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Stud Tapered End 2 Diameter | 0.906 IN |
| Stud Tapered End 2 Diameter | 23 MM |
| Stud Tapered End 1 Diameter | 0.795 IN |
| Stud Tapered End 1 Diameter | 20.2 MM |
| Stud Thread Pitch | 1.5 MM |
| Length | 116.00 MM |
| Length | 4.570 IN |
| Stud Thread Diameter | 0.71 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| UPC | 00689604378243 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
DELPHI TC7761 Cross References
| Brand | Part Number |
|---|---|
| Beck/Arnley | 101-7653 |
| Dorman | 521-393, 521-394, BJ75085, BJ75085PR, CB74363PR, CB74364PR |
| MAS Industries | 521-393, 521-394, CB74363, CB74363PR, CB74364, CB74364PR, BJ75085 |
| MEVOTECH | MS86523 |
| MOOG Chassis Products | 101-7653, 102-8081, K500224, K500228, RK621303, RK621304 |
| N/A | MS86523, GS86523, BJ75085PR, 48069-60030, 48068-60030 |
| Toyota | 48068-09100, 48069-09090 |
DELPHI TC7761 Fits Vehicles
- Toyota Land Cruiser (2008-2011, 2013-2021)
- Lexus LX570 (2008-2011, 2013-2021)
- Toyota Sequoia (2008-2022)
- Toyota Tundra (2007-2022)
