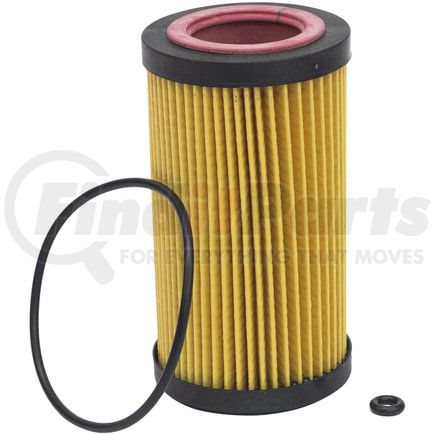

FRAM DL9999 Part Description
Full-Flow Lube Cartridge
FRAM DL9999 Specifications
Product Attributes
| Anti-Drain Back Valve | No |
| Bypass Relief Valve | No |
| Filter Media Material | Cellulose/Synthetic Blend |
| Filter Type | Cartridge |
| Gasket Type | Cover |
| Grade | Advanced |
| Grade Type | Regular |
| Height | 5.177 IN |
| Inside Diameter Bottom | 1.550 IN |
| Meets Or Exceeds Original Equipment Manufacturer Specifications | Yes |
| Non Slip Grip | No |
| O-ring (1) Inside Diameter | 0.370 IN |
| O-ring (1) Outside Diameter | 0.510 IN |
| O-ring (1) Thickness | 0.140 IN |
| O-ring Inside Diameter | 3.400 IN |
| O-ring Outside Diameter | 3.540 IN |
| O-ring Thickness | 0.140 IN |
| O-Rings Included | Yes |
| Outer Diameter Bottom | 2.894 in |
| Outer Diameter Top | 2.894 in |
| Replacable Filter | Yes |
| Reusable | No |
| Top Inside Diameter | 1.550 in |
| Torque Nut | No |
| Washable | No |
| Washer Inside Diameter | 0.559 IN |
| Washer Outside Diameter | 0.779 IN |
| Washer Thickness | 0.082 IN |
Additional Information
| Warranty Special | See Rep |
| Warranty Special UOM | SR |
| Warranty Time | 30 |
| Warranty Time UOM | DA |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8421230000 |
| UPC | 00009100547293 |
| UNSPSC | 15121501 |
FRAM DL9999 Cross References
| Brand | Part Number |
|---|---|
| A.L. Solutions U.S. | ALO-8148 |
| ACDelco | PF2261 |
| Auto Extra | 61857061 |
| Baldwin | P7400 |
| Beck/Arnley | 041-8192 |
| Bosch | 3411, 72246WS |
| Carquest | 84061, R84061 |
| Carquest Premium Filters | 84061 |
| Casite Filters | CF615 |
| Certified | CCH9999 |
| Champ | P972, P972XL |
| Champion | 55061T, COC9999 |
| Champion Filters | 55061T, COC9999 |
| Defense Filters | DL9999 |
| Driveworks | DW-5610 |
| ECOGARD | X5610 |
| EXXON/MOBIL OIL | M1C454A |
| FRAM | CH9999, M1C-454A, XG9999, TG9999, DL9999 |
| FRAM Drive | FD9999 |
| FRAM Force | FF9999 |
| FRAM Titanium | FS9999 |
| FRAM Tough Guard | TG9999 |
| FRAM Ultra Synthetic | XG9999 |
| FVP | G7061 |
| Factory Motor Parts | G7061 |
| Firestone | P972 |
| Group 7 | V5610 |
| Hastings | LF615, LF615F |
| Hyundai | 26320-3C100 |
| Inter-Continental Gear & Brake | ALO-8148 |
| Kia | 26320-3C100 |
| LUBER-FINER | P972, LFP2999 |
| MOBIL OIL | M1C454A |
| Magneti Marelli | 1AMFL00017 |
| Mahle | OX773D |
| Mann-Filter | ML 1037 |
| MicroGard | MGL57061, MGL9999 |
| Mighty Distributing System | M972 |
| Mobil 1 | M1C-454, M1C-454A |
| MotoMaster | MCH9999 |
| NAPA | 7061 |
| PUROLATOR | TL35610 |
| Parts Master | 67061 |
| Pennzoil | PZ164 |
| Pentius | PCB9999 |
| Performax | PO-164 |
| Pit Stop | PSL56 |
| Premium Guard | PG5610 |
| Prime Guard Filters - Archived | POF5610 |
| Promotive | PH5610 |
| Pronto | PO-5848 |
| PureZone | 8-57061 |
| Purolator | L35610, PL35610 |
| Purolator PureONE | PL35610 |
| Purolator TECH | TL35610 |
| PurolatorONE | PL35610 |
| Quaker State | QS45519 |
| STP | S9999 |
| STP Filters | S9999, S9999XL |
| Service Champ | CF5610 |
| Silverline | 27061 |
| VIPER | 9999 |
| Valvoline | VO-90 |
| Wix | 57061 |
FRAM DL9999 Fits Vehicles
- Suzuki Aerio (2002)
- Hyundai Veracruz (2007-2012)
- Kia Amanti (2007-2009)
- Kia Sorento (2007-2009)
- Hyundai Santa Fe (2007-2009)
- Hyundai Entourage (2007-2010)
- Kia Sedona (2006-2009)
- Hyundai Azera (2006-2009)
- Hyundai Sonata (2006-2010)
