CENTRIC 120.63048 Part Description
Manufacturer
Product Description

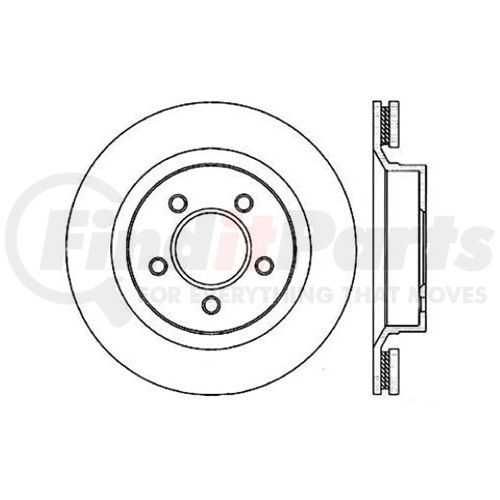

Centric Premium Brake Rotor
Features & Benefits
- Symmetric vane; split-core castings for uniform heat distribution. Black E-Coat anti-corrosive coating protects much better than competitors spray paint. Double disc ground friction surface for optimal performance and serviced life
- Painted hat and outer edge for corrosion resistance
- Symmetric vane; split-core castings for uniform heat distribution. Anti-corrosive paint protects much better than competitors spray paint. Double disc ground friction surface for optimal performance and serviced life.
- Painted Hat and Outer Edge
- Optimal Surface Finish
- Optimal surface finish for consistent stopping feel from the first stop
- Advanced Metallurgy
- Advanced metallurgy for optimal heat transfer and structural strength
- OE Vane Design and Plate Thickness
- OE vane design and plate thickness for heat capacity and strength
- Low Initial Lateral Run-Out
- Low initial lateral run-out and disc thickness variation for smooth, vibration free stopping
- Precision Balance
- Precision balance for vibration free performance

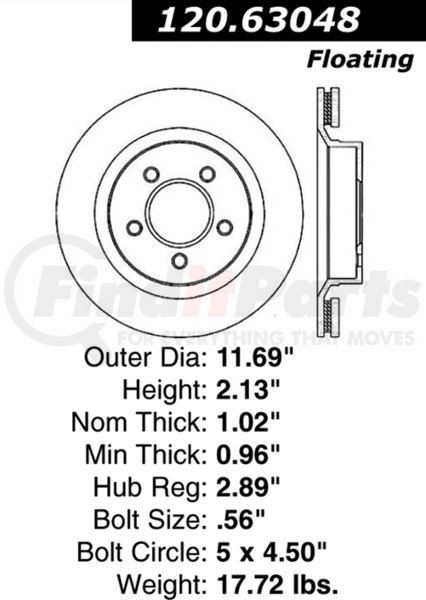

CENTRIC 120.63048 Specifications
Product Attributes
| Vane Style [cntrc] | Straight |
| Weight [cntrc] Lbs | 17.720 |
| Disc Mounting [cntrc] | Floating |
| Weight [cntrc] Kgs | 8.050 |
| Misc Holes [cntrc] | 0 |
| Product Grade [cntrc] | Premium |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Discard Thickness | 0.961 IN |
| Discard Thickness | 24.400 MM |
| Nominal Thickness | 1.024 IN |
| Nominal Thickness | 26.000 MM |
| Hat Finish | Painted |
| Overall Height | 2.126 IN |
| Overall Height | 54.000 MM |
| Outside Diameter | 297.000 MM |
| Outside Diameter | 11.693 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 2.886 IN |
| Center Hole Diameter | 73.300 MM |
| Mounting Bolt Hole Circle Diameter | 114.300 MM |
| Mounting Bolt Hole Circle Diameter | 4.500 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 14.100 MM |
| Stud/Lug Hole Diameter | 0.555 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 00805890035879 |
CENTRIC 120.63048 Cross References
| Brand | Part Number |
|---|---|
| 76777, BD125676 | |
| N/A | 120.63048, BD125676, BD125676E, 5388, 211208, 211208C, 86777, YH145263, X51264, 27209, 5388G, 4779133AA, 4779133AB, 47799133AC, 04779133AA, 145263, 76777, 86722, 4886777, 19933, 8932048, AR8348, 90040019, E12568053 |
| RAYBESTOS | 76777, 76777FZN, 76777R |
| WAGNER | BD125676, BD125676E |
