CENTRIC 120.33022 - Premium Brake Rotor
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
CENTRIC part description
California Proposition 65 Warning
California Proposition 65 Warning
WARNING: This product can expose you to chemical which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov. (Read more)
Product Description

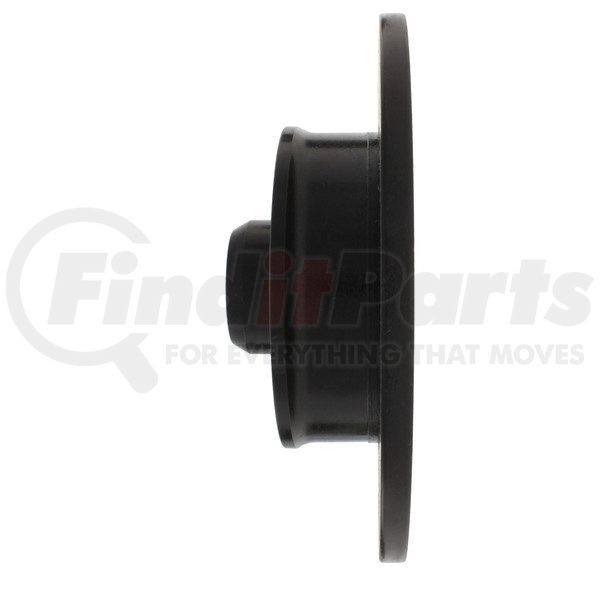

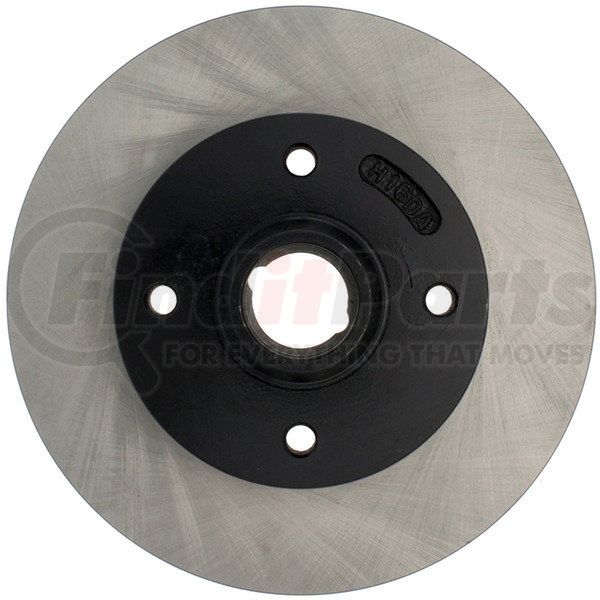

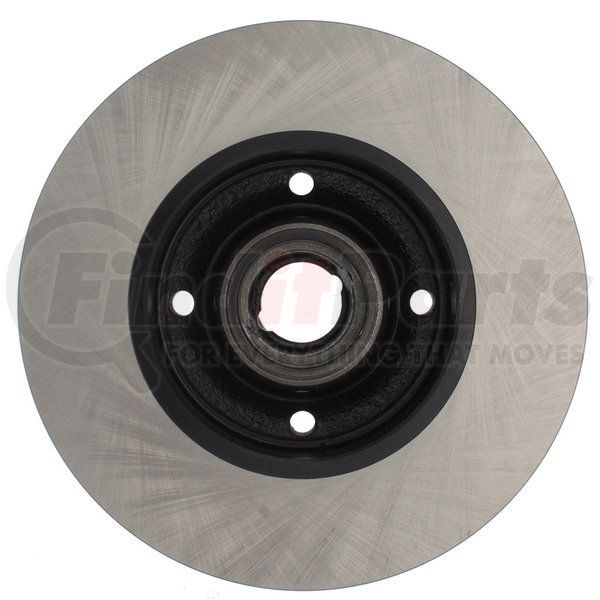

Premium Brake Rotor
Application Summary
1999 - 2002 Volkswagen Cabrio, 1990 - 1991 Volkswagen Corrado, 1985 - 1998 Volkswagen Golf, 1985 - 1998 Volkswagen Jetta, 1990 - 1997 Volkswagen Passat, 1986 - 1989 Volkswagen Scirocco
Features & Benefits
- Symmetric vane; split-core castings for uniform heat distribution. Black E-Coat anti-corrosive coating protects much better than competitors spray paint. Double disc ground friction surface for optimal performance and serviced life
Premium rotor; rotors; Centric; brake rotor; break; brake disc; disc brake
Product Attributes
| Discard Thickness | 0.315 IN |
| Discard Thickness | 8.00 MM |
| Nominal Thickness | 0.394 IN |
| Nominal Thickness | 10.00 MM |
| Hat Finish | Coated |
| Outside Diameter | 8.898 IN |
| Outside Diameter | 226.00 MM |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Solid |
| Bolt Thread Pitch | 1.50 MM |
| Center Hole Diameter | 2.248 IN |
| Center Hole Diameter | 57.10 MM |
| Mounting Bolt Hole Circle Diameter | 3.937 IN |
| Mounting Bolt Hole Circle Diameter | 100.00 MM |
| Mounting Bolt Hole Diameter | 12.00 MM |
| Stud/Lug Hole Quantity | 4 |
| Disc Mounting [cntrc] | Hub & Rotor |
| Height | 71.30 |
| Inner Bearing # [cntrc] | 410.91015 |
| Misc Holes [cntrc] | 4 |
| Outer Bearing # [cntrc] | 410.91001 |
| Weight [cntrc] | 4.540 KG |
| Weight [cntrc] | 9.990 LB |
| Disc Mounting | Hub & Rotor |
| Inner Bearing | 410.91015 |
| Misc Holes | 4 |
| Outer Bearing | 410.91001 |
| Weight | 4.540 KG |
| Weight | 9.990 LB |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| UPC | 00805890030195 |
Part Interchanges
CENTRIC 120.33022 Cross Reference
We have 4 alternatives for the 120.33022 by CENTRIC:
Fits Vehicles
- Volkswagen Cabrio (1999-2002)
- Volkswagen Passat (1990-1993, 1995-1997)
- Volkswagen Corrado (1990-1991)
- Volkswagen Scirocco (1986-1989)
- Volkswagen Jetta (1985-1998)
- Volkswagen Golf (1985-1998)
