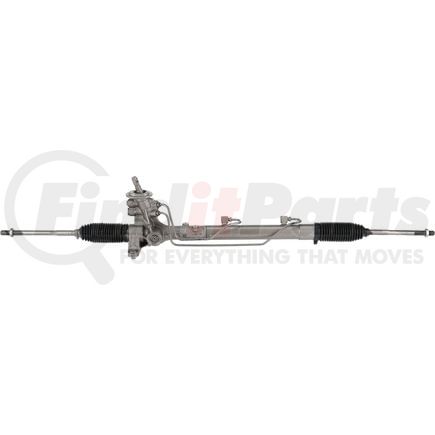

Maval 93369M - Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 93369M
$40899
+$200.00 Core Deposit
Total price w/ core: $608.99
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
MAVAL part description
93369m
Product Description
Rack and Pinion Assembly - MAVAL - Hydraulic Power - Remanufactured - 93369M
Features & Benefits
- Housings, shafts and critical components are thoroughly cleaned using the latest technology to greatly reduce the potential for contamination, and inspected thoroughly to detect any cracks or leaks
- Shafts and housings are polished, bearings and snap rings are replaced to restore rack performance and eliminate leaks
- Electronic solenoids are tested to verify proper performance
- All seals, PTFE and O-rings are replaced with new, OE-equivalent components to prevent leaks, ensure longevity and reliability
- A protective paint coating is applied, bellows and fasteners are high-quality components to protect against corrosion, rust and optimize the longevity of the unit
- Tested on our state-of-the-art test equipment to simulate actual operational conditions, inspecting for leaks, noises, and overall functionality to ensure the unit meets or exceeds OE specifications
- 100 percent centered after testing to reduce installation time
Product Attributes
| Casting Material | Aluminum |
| Distance Between Mounting Holes | 107.95 MM |
| Distance Between Mounting Holes | 4.25 IN |
| Hose Port Type | O-Ring |
| Input Shaft Diameter | 0.75 IN |
| Input Shaft Diameter | 19.06 MM |
| Input Shaft Length | 1.875 IN |
| Input Shaft Length | 47.62 MM |
| Mounting Hole Quantity | 2 |
| Pressure Port Thread Size | M18 x 1.5 |
| Rack Length | 1301.75 MM |
| Rack Length | 51.25 IN |
| Return Port Thread Size | M16 x 1.5 |
| Thread Length | 60.28 MM |
| Thread Length | 2.373 IN |
| Tie Rod Ends Included | Yes |
| Total Turns Lock To Lock | 3 |
Additional Information
| Warranty Time | 24 |
| Warranty Time UOM | MO |
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8708940000 |
| Harmonized Tariff Code (HTS) | 8708940000 |
| NAFTA Preference Criterion Code | B |
| UPC | 00843613109056 |
Fits Vehicles
- Volkswagen Passat (2012-2014)
- Volkswagen Beetle (2013-2014)
