GATES part description

Product Description

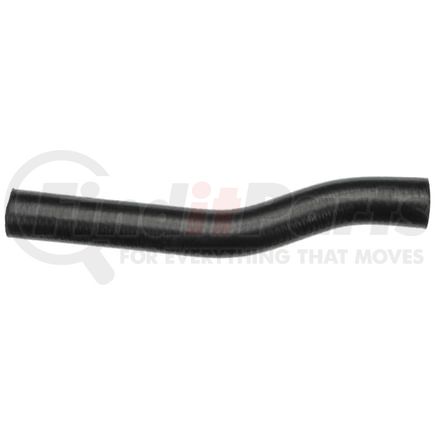

Premium Molded Coolant Hose

Application Summary

1995-1981 Toyota, Pickup, 4-Cyl. 2.4 L, Lower - Pipe To Rad.

Features & Benefits

  • Specifically-engineered materials resist collapse under vacuum
  • Engineered to resist electrochemical degradation, the leading cause of hose failure
  • Pre-shaped to fit and to ensure perfectly sealed conditions
  • EPDM tube; synthetic fiber knit reinforcement; heat-, ozone- and chemical coolant-resistant EPDM cover
  • Meets requirements of SAE 20R4, class D2 and DIN 73411, class A (except for tolerances)
  • Temperature Range: -40 Deg. F to +257 Deg. F (-40 Deg. C to +125 Deg. C)
  • Note: Gates recommends replacing hose clamps each time a new coolant hose is installed
  • Caution: Do not use for fuel or oil transfer applications

Product Attributes

Centerline Length 14 IN
9940 No
Branch Quantity 0
9845 0
End 1 Inside Diameter 1.25 in
End 2 Inside Diameter 1.25 in
Contains Spring No
Material EPDM
9839 Yes

Additional Information

Harmonized Tariff Code (Schedule B) 4009310000
Country of Origin (Primary) US
UPC 00072053055634
VMRS Code 042004014
UNSPSC 40142000

Part Interchanges

GATES 21171 Cross Reference

We have 1 alternatives for the 21171 by GATES:

Fits Vehicles

  • Mazda B2200 (1983)
  • Mazda B1800 (1977-1978)
  • Saturn Vue (2008-2010)
  • Mazda B2000 (1979-1984)
  • Pontiac Acadian (1981-1983)
  • Toyota Corona (1975)
  • Toyota Pickup (1979-1995)
  • Toyota Mark II (1972-1976)
  • Toyota Cressida (1979-1982)
  • Toyota Celica (1975, 1979-1981)
  • Toyota 4Runner (1984-1995)
  • Nissan 200SX (1986-1988)
  • Honda Passport (1994-1996)
  • Ford Courier (1972-1982)
  • GMC S15 Jimmy (1983-1984)
  • GMC S15 (1983-1985)
  • Chevrolet S10 Blazer (1983-1984)
  • Chevrolet S10 (1983-1985)
  • Chevrolet Chevette (1981-1983)
  • Isuzu Trooper (1988-1991)
  • Isuzu Rodeo (1991-1997)
  • Isuzu Pickup (1988-1995)
  • Isuzu Amigo (1989-1994)
  • Alfa Romeo Sport (1979)
