(888) 312-8812 Login SignupCENTRIC 320.49008F Centric GCX Rotor with Full Coating
$4849
Limited availability at this price!
In Stock
Get it by Friday, Feb 13
CENTRIC 320.49008F Part Description
Manufacturer
Product Description

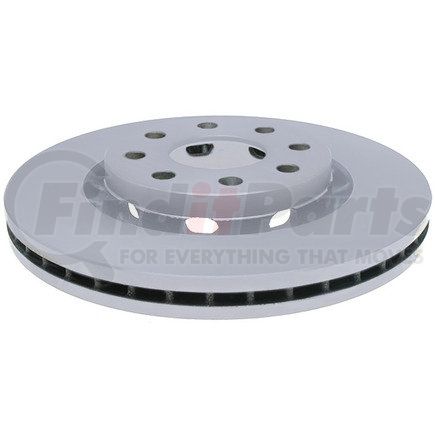

Centric GCX Rotor with Full Coating
Features & Benefits
- For the best corrosion resistance
- RS200™ Zinc-Aluminum Rich Coating
- Optimal Surface Finish
- For consistent and confident braking from the first stop
- Carbon Enhanved Advanced Metallurgy
- For optimal heat transfer and structural strength
- OE Vane Design and Plate Thickness
- For heat capacity and strength
- Low Initial Lateral Run-Out
- For smooth vibration free stopping
- Precision Balance
- For vibration free performance
CENTRIC 320.49008F Specifications
Product Attributes
| Product Grade [cntrc] | Premium |
| Disc Mounting [cntrc] | Floating |
| Misc Holes [cntrc] | 4 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Weight [cntrc] Kgs | 5.230 |
| Vane Style [cntrc] | Straight |
| Weight [cntrc] Lbs | 11.500 |
| Discard Thickness | 0.866 IN |
| Discard Thickness | 22.000 MM |
| Nominal Thickness | 23.900 MM |
| Nominal Thickness | 0.941 IN |
| Disc Finish | Fully Coated |
| Hat Finish | Coated |
| Overall Height | 41.100 MM |
| Overall Height | 1.618 IN |
| Outside Diameter | 10.079 IN |
| Outside Diameter | 256.000 MM |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 2.327 IN |
| Center Hole Diameter | 59.100 MM |
| Mounting Bolt Hole Circle Diameter | 100.000 MM |
| Mounting Bolt Hole Circle Diameter | 3.937 IN |
| Stud/Lug Hole Quantity | 4 |
| Stud/Lug Hole Diameter | 12.600 MM |
| Stud/Lug Hole Diameter | 0.496 IN |
CENTRIC 320.49008F Cross References
| Brand | Part Number |
|---|---|
| MAGMA PRODUCTS | PSR223087 |
CENTRIC 320.49008F Fits Vehicles
- Suzuki Swift+ (2004-2010)
- Pontiac G3 Wave (2009)
- Pontiac Wave5 (2005-2007)
- Pontiac Wave (2005-2008)
- Pontiac G3 (2007-2010)
- Chevrolet Spark EV (2014-2016)
- Chevrolet Spark (2013-2015)
- Suzuki Swift (2007-2015)
- Chevrolet Aveo5 (2006-2011)
- Chevrolet Aveo (2004-2018)
