Centric 320.40005F - Centric GCX Rotor with Full Coating
$3149
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
Product Description

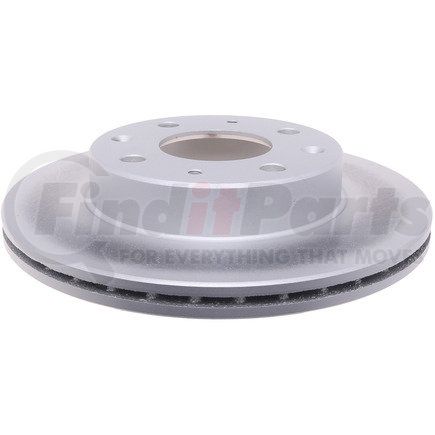

Centric GCX Rotor with Full Coating
Product Attributes
| Vane Style [cntrc] | Straight |
| Product Grade [cntrc] | Premium |
| Weight [cntrc] Kgs | 3.600 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Misc Holes [cntrc] | 4 |
| Disc Mounting [cntrc] | Floating |
| Weight [cntrc] Lbs | 7.920 |
| Stud/Lug Hole Diameter | 0.504 IN |
| Stud/Lug Hole Diameter | 12.800 MM |
| Stud/Lug Hole Quantity | 4 |
| Mounting Bolt Hole Circle Diameter | 3.937 IN |
| Mounting Bolt Hole Circle Diameter | 100.000 MM |
| Center Hole Diameter | 2.402 IN |
| Center Hole Diameter | 61.000 MM |
| Bearings Included | No |
| Solid Or Vented Type Rotor | Vented |
| Surface Type | Smooth |
| ABS Tone Ring Included | No |
| Outside Diameter | 9.094 IN |
| Outside Diameter | 231.000 MM |
| Overall Height | 1.732 IN |
| Overall Height | 44.000 MM |
| Hat Finish | Coated |
| Disc Finish | Fully Coated |
| Nominal Thickness | 0.669 IN |
| Nominal Thickness | 17.000 MM |
| Discard Thickness | 0.591 IN |
| Discard Thickness | 15.000 MM |
Fits Vehicles
- Honda Wagovan (1984, 1986-1987)
- Honda CRX (1988-1991)
- Honda Civic (1984-1987)
- Honda Insight (2000-2006)
