MOTORAD 3IC240 Part Description
Manufacturer
Product Description

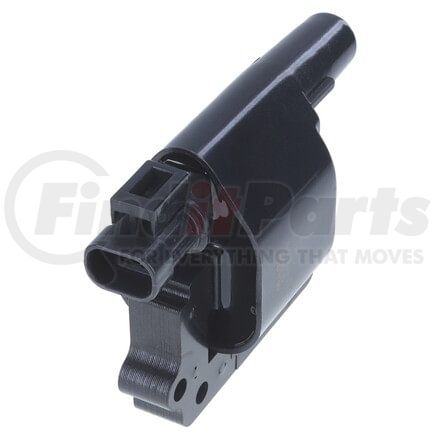

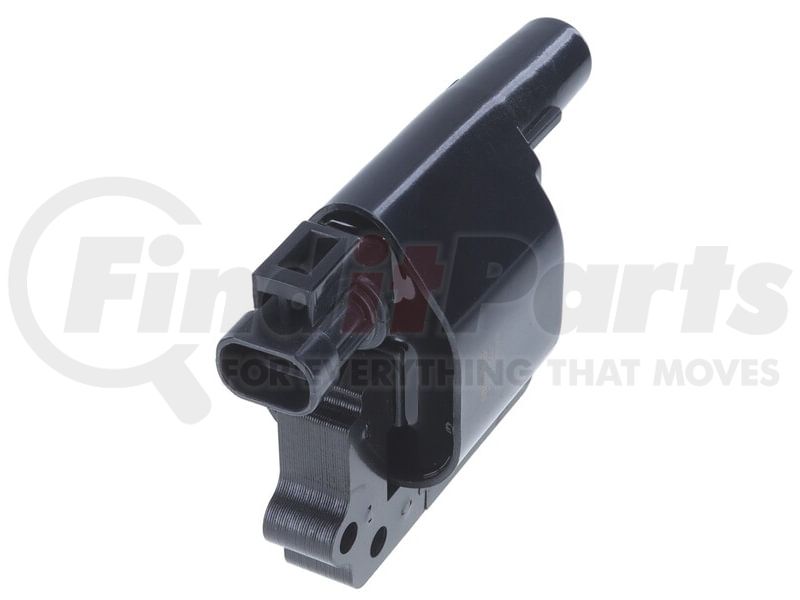

Ignition Coil
Features & Benefits
- Primary and secondary windings made with ETP grade copper to provide superior temperature protection and voltage conductivity.
- Graphite-infused platinum connections resist corrosion and offer superior conductivity and durability.
- Heat resistant magnet produces max voltage output at all engine speeds.
- Preapplied dielectric grease for easy installation.
MOTORAD 3IC240 Specifications
Product Attributes
| Grade Type | Regular |
| Mounting Bracket Included | No |
| Voltage | 12 VDC |
| Requires External Resistor | Yes |
| Secondary Resistance | 8000-13000 Ohms |
| Primary Resistance | 700-1400 Ohms |
| Oe Replacement | YES |
| Oil Filled | No |
| Terminal Quantity | 2 |
| Product Color | Black, White |
| Terminal Type | Blade |
| Terminal Gender | Male |
| Connector Gender | Female |
| Connector Quantity | 1 |
| Quantity Per Application | 2 |
| Hazardous Material | No |
| Terminal Type | Blade |
| Terminal Quantity | 2 |
| Connector Gender | Female |
| Terminal Gender | Male |
| Mounting Bracket Included | No |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8511300080 |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8511300080 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | TX |
| UPC | 00055644688558 |
MOTORAD 3IC240 Cross References
| Brand | Part Number |
|---|---|
| General Motors | 19017126 |
| Mighty Distributing System | 6536 |
| Motorad | 3IC240 |
| Nissan | B244810G10, B244811G10, 2244832F11, 22448D4500, 22448D4501, 22448D4503, 22448D4505, 22448D4506, 22448D4510, 22448D4511, 22448D4512, 22448D4513, 22448D4515, 22448D4516, 2244803G00, 2244803G01, 2244803G11, 2244804G00, 2244804G01, 2244804G11, 2244810G00, 2244810G10, 2244811G00, 2244811G10, 2244819B10, 2244829R10, 2243303G01, 2243303G10, 2243303G11, 2243310G10 |
| STANDARD IGNITION | UF-66 |
MOTORAD 3IC240 Fits Vehicles
- Nissan 200SX (1987-1988)
- Nissan 720 (1986)
- Nissan D21 (1986-1989)
- Nissan Maxima (1987-1988)
- Nissan Multi (1986-1988)
- Nissan Pathfinder (1987-1989)
- Nissan Pulsar NX (1988)
- Nissan Sentra (1987-1988)
- Nissan Van (1987-1988)
