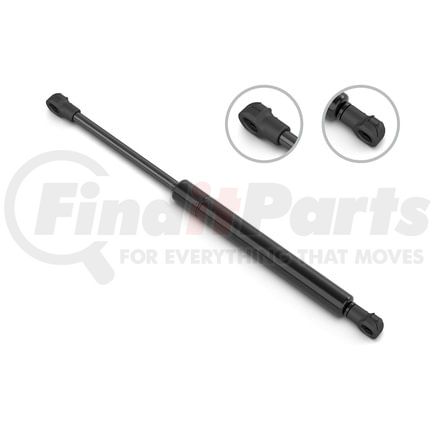

(888) 312-8812 Login SignupSTABILUS 4B016570 Liftgate Lift Support
Tap to view 2 more
$1999
Limited availability at this price!
In Stock
Get it by Thursday, Jan 8
STABILUS 4B016570 Part Description
Manufacturer
Product Description
Liftgate Lift Support
Features & Benefits
- For best results, replace in pairs.
- Dynamic damping speed control creates a fluid opening motion.
- No bouncing or jerking during cycling.
- Part coatings tested to automotive standards for corrosion resistance.
- Easy to install and require no special tools.
- Based on the OE design to ensure proper fit form and function.
- For best results replace in pairs.
LIFTGATE LIFT SUPPORT
Lift Support
STABILUS 4B016570 Specifications
Product Attributes
| NonVehicle Specific | N |
| Transmission Specific | N |
| Engine Specific | N |
| High Performance | N |
| Small Engine | N |
| Marine | N |
| MotorCycleRV | N |
| IndustrialOff Highway | N |
| Personal Watercraft | N |
| Snowmobile | N |
| Agricultural Equipment | N |
| Heavy Truck | N |
| Medium Truck | N |
| CarLight Truck | Y |
| Application Specific | Y |
| Prop 65 Chemical | DEHP |
| Prop 65 Warning | Warning: This product contains a chemical known to the State of California to cause cancer, birth defects or other reproductive harm. |
| Prop 65 Affected | Yes |
| Type | GAS |
| Maximum Force | 470 NW |
| End 2 Mount Diameter | 10.0 MM |
| End 1 Mount Diameter | 10.0 MM |
| Cylinder Outside Diameter | 18 MM |
| Inner Shaft Diameter | 8 MM |
| Compressed Length | 261.5 MM |
| Extended Length | 430.5 MM |
| Maximum Force | 106 LB |
| End 2 Mount Diameter | 0.394 IN |
| End 1 Mount Diameter | 0.394 IN |
| Cylinder Outside Diameter | 0.709 IN |
| Inner Shaft Diameter | 0.315 IN |
| Compressed Length | 10.29 IN |
| Extended Length | 16.95 in |
| End 2 Material | Nylon |
| End 2 Type | Ball Socket |
| End 1 Material | Nylon |
| End 1 Type | Ball Socket |
| Mounting Hardware Included | No |
| EXT_NonVehicle Specific | N |
| EXT_Transmission Specific | N |
| EXT_Engine Specific | N |
| EXT_High Performance | N |
| EXT_Small Engine | N |
| EXT_Marine | N |
| EXT_MotorCycleRV | N |
| EXT_IndustrialOff Highway | N |
| EXT_Personal Watercraft | N |
| EXT_Snowmobile | N |
| EXT_Agricultural Equipment | N |
| EXT_Heavy Truck | N |
| EXT_Medium Truck | N |
| EXT_CarLight Truck | Y |
| EXT_Application Specific | Y |
| EXT_Prop 65 Chemical | DEHP |
| EXT_Prop 65 Warning | WARNING: Cancer and Reproductive Harm www.p65warnings.ca.gov |
| EXT_Prop 65 Affected | Yes |
| Stroke Length | 169 MM |
| Stroke Length | 6.66 IN |
Additional Information
| Country of Origin (Primary) | US |
| Country of Origin 2 | MX |
| Country of Origin 3 | DE |
| Harmonized Tariff Code (HTS) | 8302303010 |
| Harmonized Tariff Code (Schedule B) | 8302303010 |
| UPC | 00194879005485 |
STABILUS 4B016570 Part Interchanges
| Brand | Part Number |
|---|---|
| N/A | 016570, 30674718, 30674718-0, 306747180, 30716189, 30716189-0, 307161890, 30799188, 30799188-0, 307991880, 30799272, 30799272-0, 307992720, 31276851, 31276851-0, 312768510, 31278322-0, 312783220, 9483575, 014657, 1338RH, 375473, 5919YU, 7898TP, SG315017, TSG315017, 86632 |
STABILUS 4B016570 Fits Vehicles
- Volvo V50 (2005-2011)
