(888) 312-8812 Login SignupSTABILUS 3B567136 Liftgate Lift Support
Tap to view 2 more
$2749
Limited availability at this price!
In Stock
Get it by Monday, Feb 16

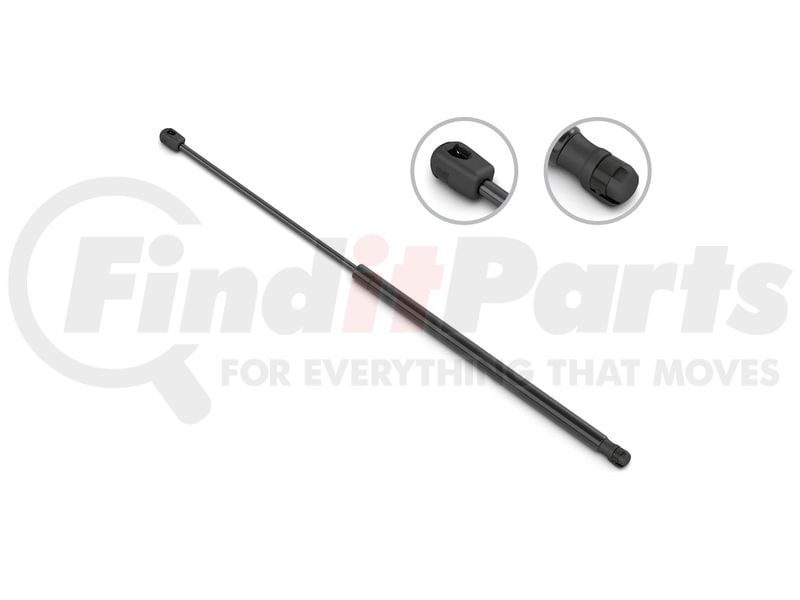

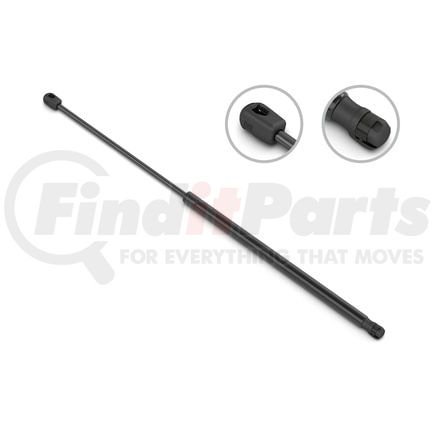

STABILUS 3B567136 Part Description
Manufacturer
Product Description
Liftgate Lift Support
Features & Benefits
- For best results, replace in pairs.
- Dynamic damping speed control creates a fluid opening motion. No bouncing or jerking.
- Internal valve adjusts holding force for cold weather.
- Part coatings tested to automotive standards for corrosion resistance.
- Easy to install and require no special tools.
- Based on the OE design to ensure proper fit form and function.
- For best results replace in pairs.
LIFTGATE LIFT SUPPORT
Lift Support
STABILUS 3B567136 Specifications
Product Attributes
| NonVehicle Specific | N |
| Transmission Specific | N |
| Engine Specific | N |
| High Performance | N |
| Small Engine | N |
| Marine | N |
| MotorCycleRV | N |
| IndustrialOff Highway | N |
| Personal Watercraft | N |
| Snowmobile | N |
| Agricultural Equipment | N |
| Heavy Truck | N |
| Medium Truck | N |
| CarLight Truck | Y |
| Application Specific | Y |
| Prop 65 Chemical | DEHP |
| Prop 65 Warning | Warning: This product contains a chemical known to the State of California to cause cancer, birth defects or other reproductive harm. |
| Prop 65 Affected | Yes |
| Installation Instructions Included | Yes |
| Type | GAS |
| Maximum Force | 690 NW |
| End 2 Mount Diameter | 10.0 MM |
| End 1 Mount Diameter | 10.0 MM |
| Cylinder Outside Diameter | 22 MM |
| Inner Shaft Diameter | 10 MM |
| Compressed Length | 412 MM |
| Extended Length | 580 MM |
| Maximum Force | 155 LB |
| End 2 Mount Diameter | 0.394 IN |
| End 1 Mount Diameter | 0.394 IN |
| Cylinder Outside Diameter | 0.866 IN |
| Inner Shaft Diameter | 0.394 IN |
| Compressed Length | 16.22 IN |
| Extended Length | 22.84 in |
| End 2 Material | Nylon |
| End 2 Type | Ball Socket |
| End 1 Material | Nylon |
| End 1 Type | Ball Socket |
| Mounting Hardware Included | Yes |
| EXT_NonVehicle Specific | N |
| EXT_Transmission Specific | N |
| EXT_Engine Specific | N |
| EXT_High Performance | N |
| EXT_Small Engine | N |
| EXT_Marine | N |
| EXT_MotorCycleRV | N |
| EXT_IndustrialOff Highway | N |
| EXT_Personal Watercraft | N |
| EXT_Snowmobile | N |
| EXT_Agricultural Equipment | N |
| EXT_Heavy Truck | N |
| EXT_Medium Truck | N |
| EXT_CarLight Truck | Y |
| EXT_Application Specific | Y |
| EXT_Prop 65 Chemical | DEHP |
| EXT_Prop 65 Warning | WARNING: Cancer and Reproductive Harm www.p65warnings.ca.gov |
| EXT_Prop 65 Affected | Yes |
| Stroke Length | 168 MM |
| Stroke Length | 6.62 IN |
Additional Information
| Country of Origin (Primary) | US |
| Country of Origin 2 | MX |
| Country of Origin 3 | DE |
| Harmonized Tariff Code (HTS) | 8302303010 |
| Harmonized Tariff Code (Schedule B) | 8302303010 |
| UPC | 00194879003672 |
STABILUS 3B567136 Cross References
| Brand | Part Number |
|---|---|
| N/A | 567136, 04589630AA, 4589 630AA, 4589 630AC, 4589 631AA, 4589630AA, 4589630AC, 4589631AA, 4724 743AD, 4724 743AE, 4724 743AF, 4724743AD, 4724743AE, 4724743AF, SG214024, TSG214024, 84564, 3B-567136, C95930DL, C95930, 4564, C4564, 901370, 819-4205, 8194205, 611393, 611402 |
STABILUS 3B567136 Fits Vehicles
- Chrysler PT Cruiser (2002-2010)
