(888) 312-8812 Login SignupGATES 23R4340 G-Force Redline Continuously Variable Transmission (CVT) Belt
Tap to view 3 more
$8799
Limited availability at this price!
5 Day Lead Time
Get as soon as Thursday, Oct 8
GATES 23R4340 Part Description
Manufacturer
Product Description

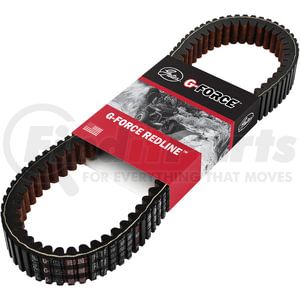

G-Force Redline Continuously Variable Transmission (CVT) Belt
Application Summary
2012 John Deere, Gator RSX, 850cc, Drive
Features & Benefits
- Improved durability, crack- and wear-resistant means a longer-lasting, higher-performance power transmission belt for the most demanding applications
- Greater heat resistance and recovery, even under severe duty cycles
- Optimized, patented Ethylene Elastomeric (EE) compound maximizes axial stiffness enabling belts to run at higher continuous torques or loads
- Tested under extreme conditions in controlled environments as well as on race vehicles
GATES 23R4340 Specifications
Product Attributes
| Type | Power Sport Specialty High Performance CVT Belt |
| Cross Section Designation | RVS-R |
| Angle | 26 |
| Top Width | 1.219 in |
| Pitch Width | 1.15 IN |
| Outside Circumference | 44.625 in |
| Pitch Length | 43.402 IN |
| Thickness | .597 IN |
| Construction | Double Notched |
| Notched | Yes |
| Belt Material | EPDM |
| Cord Material | Aramid |
| Bottom Material | Yes |
| Color | Black |
| Grade Type | OE Improved |
| Top Width | 31 mm |
| Pitch Width | 29.2 MM |
| Outside Circumference | 1133 mm |
| Pitch Length | 1102 MM |
| Thickness | 15.2 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 4010323000 |
| Country of Origin (Primary) | US |
| Stock Status | S |
| UPC | 00770075816010 |
| VMRS Code | 065005003 |
| UNSPSC | 26111801 |
GATES 23R4340 Cross References
| Brand | Part Number |
|---|---|
| Carlisle | UA473 |
| Carquest | 23G4340 |
| Dayco | HPX2248 |
| John Deere | M162111, M168196, M176776 |
| N/A | DBWH8196 |
| NAPA Belts/Hose | 23C4340, 23G4340, 23R4340 |
| Timken | UA473 |
GATES 23R4340 Fits Vehicles
- John Deere Gator RSX 860M (2018-2020)
- John Deere Gator RSX 860E (2018-2020)
- John Deere RSX860i (2016-2017)
- John Deere RSX850i Midnight Black Special Edition (2014)
- John Deere RSX850i (2013-2015)
- John Deere RSX850i Sport (2013-2015)
- John Deere RSX850i Trail (2013-2015)
