(888) 312-8812 Login SignupDANA SPL55XP Spicer Life Plus Universal Joint; Non-Greaseable; 1480/SPL55 Series
Tap to view 3 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
DANA SPL55XP Part Description
Manufacturer
Product Description

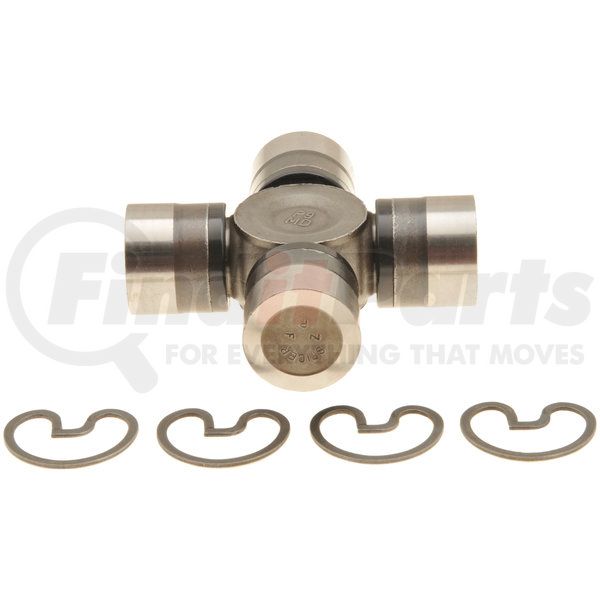

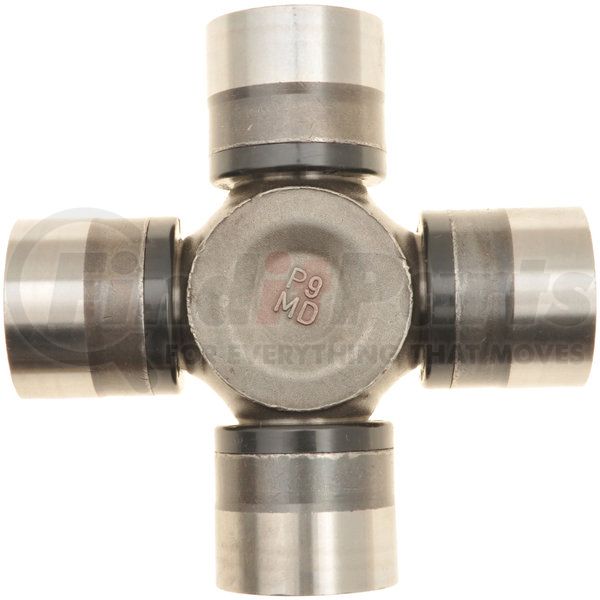

Spicer Life Plus Universal Joint; Non-Greaseable; 1480/SPL55 Series
Features & Benefits
- Kit includes new self locking spring tabs and bearing retainer bolts
- Journal cross is engineered with a solid cold-formed body to ensure better wear and overall strength
- Bearing cups are heat treated for strength; precision-ground and case-hardened for durability
- Multi-lip seal keeps grease in and contaminants out, and gets maximum retention in a wider range of environments
UNIVERSAL JOINT UNIVERSAL JOINT
DANA SPL55XP Specifications
Product Attributes
| Material | Steel |
| Bearing Cap Diameter (1) | 1.375 IN |
| OEM Mfg | Spicer |
| OEM Series | 1480/SPL55 |
| Type | OSR Style |
| Bearing Cap Diameter (2) | 1.375 IN |
| Bearing Cap Type | Round |
| Snap Ring Included | Y |
| Snap Ring Type | External |
| Greaseable | N |
| Bearing Cap Diameter A (mm) | 34.9 MM |
| Bearing Cap Diameter B (mm) | 34.9 MM |
| Bearing Cap Type A | OSR |
| Bearing Cap Type B | OSR |
| Hardware Included | N |

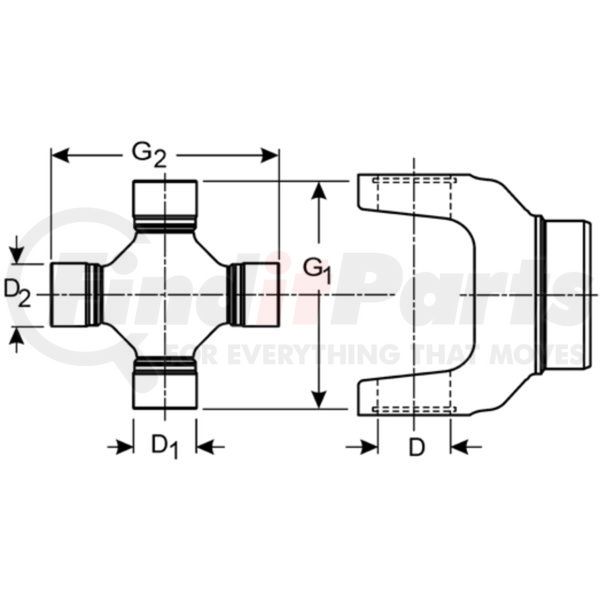

| Length A (In) | 4.188 IN |
| Length A (mm) | 106.4 MM |
| Length B (In) | 4.188 IN |
| Length B (mm) | 106.4 MM |
| Sr(1)brng Cap To Brng Cap(osr) | 4.188 |
| Sr(2)brng Cap To Brng Cap(osr) | 4.188 |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (HTS) | 8708998180 |
| UPC | 00023913871352 |
| VMRS Code | 024002046 |
DANA SPL55XP Cross References
| Brand | Part Number |
|---|---|
| ACDelco | 45U2201 |
| Caterpillar | 191-2226, 298-8173 |
| Chrysler | 5102 157AD, X7180155 |
| Daimler Truck North America | SP SPL55X, SP SPL55XHP |
| Ford | F81Z-4635-CB, HC3Z-4635-B |
| Freightliner | SP SPL55X, SP SPL55XHP |
| International Harvester (IHC) | 2586587C91, D5803X, DSPL55X, ESPL55X, SPL55X |
| Jlg | 91474035 |
| MOOG Chassis Products | 351 |
| MasterPro | 351 |
| Navistar | 2586587C91, 5803X, D5803X, DSPL55X, DSSPL55X, E5803X, ESPL55X, SPL55X |
| Neapco OE Series | 3-0188, 3-0188G, 3-0803, 4618800, 3-0188P |
| Paccar Parts | SPL55X |
| Precision | 351 |
| SKF | 3-0188, 3-0188G, 3-0803, UJ351 |
| SVL | 15-188X |
| Spicer | 5-188X |
| Thomas Built Buses | 86290026 |
| UAP | SPL55X |
| Volvo | SP SPL55X |
DANA SPL55XP Fits Vehicles
- Ford F59 (2014-2018)
- GMC Sierra 3500 Classic (2007)
- Chevrolet Silverado 3500 Classic (2007)
- GMC Sierra 3500 HD (2014-2019)
- Chevrolet Silverado 3500 HD (2014-2019)
- Chevrolet Silverado 2500 HD (2014-2019)
- GMC Savana 4500 (2009-2018)
- Chevrolet Express 4500 (2009-2019)
- GMC Savana 2500 (2011-2020)
- Chevrolet Express 2500 (2011-2019)
- GMC Savana 3500 (2010-2019)
- Chevrolet Express 3500 (2010-2019)
- Dodge Ram 3500 (2009-2010)
- Chevrolet W4500 Tiltmaster (2000-2004)
- GMC W4500 Forward (2000-2004)
- Chevrolet W3500 Tiltmaster (1995-2004)
- GMC C5500 Topkick (2003-2009)
- Chevrolet C5500 Kodiak (2003-2009)
- GMC C4500 Topkick (2003-2009)
- Chevrolet C4500 Kodiak (2003-2009)
- Ford E-550 Super Duty (2003)
- Ford F-350 Super Duty (2007-2019)
- Ford F53 (1997, 1999-2004, 2006-2009, 2011-2019)
- Ford F-550 Super Duty (1999-2018)
- Ford F-450 Super Duty (1999-2019)
- GMC Sierra 2500 HD (2001-2006, 2014-2018)
- Chevrolet Silverado 3500 (2001-2006)
DANA SPL55XP Customer Reviews
No reviews yet
Be the first to review this product!
DANA SPL55XP Manufacturer Information
Dana Holding Corporation® is an internationally known company specializing in drivetrain and e-Propulsion systems. It conceptualizes, manufactures, and supplies energy-management and power- and conveyance solutions for the present-day and future vehicles and trucks. With its over 115 years of industry experience and innovation, and despite several turbulences the automotive and trucking industry has been through, Dana has managed to take the lead in revolutionary technological inventions. Dana Holding Corporation comprises different world-renowned brands catering to various market segments. These include SPICER Drivetrain Systems, VICTOR REINZ Sealing Products, LONG Thermal Products, BREVINI Motion Systems, GRAZIANO High-Performance Transmissions, FAIRFIELD Custom Gears and Drives, and a lot more.
