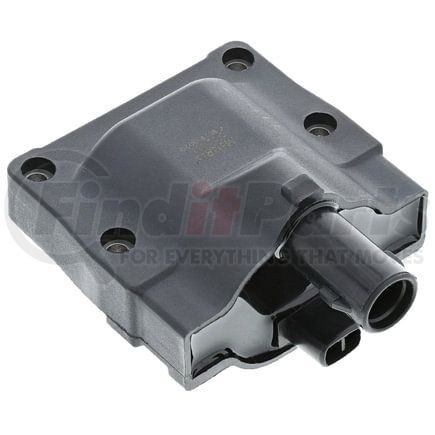

MOTORAD 3IC168 - Ignition Coil
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
MOTORAD part description
California Proposition 65 Warning
California Proposition 65 Warning
WARNING: This product can expose you to chemical which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov. (Read more)
Product Description
Ignition Coil
Features & Benefits
- Primary and secondary windings made with ETP grade copper to provide superior temperature protection and voltage conductivity.
- Graphite-infused platinum connections resist corrosion and offer superior conductivity and durability.
- Heat resistant magnet produces max voltage output at all engine speeds.
- Preapplied dielectric grease for easy installation.
Product Attributes
| Secondary Resistance | 10000-17000 Ohms |
| Primary Resistance | 200-800 Ohms |
| Terminal Type | Blade |
| Terminal Gender | Male |
| Terminal Quantity | 2 |
| Product Color | Black, White |
| Quantity Per Application | 1 |
| Hazardous Material | No |
| Connector Gender | Female |
| Connector Quantity | 1 |
| Voltage | 12 VDC |
| Requires External Resistor | Yes |
| Grade Type | Regular |
| Mounting Bracket Included | No |
| Oe Replacement | YES |
| Oil Filled | No |
| Terminal Type | Blade |
| Mounting Hardware Included | No |
| Mounting Hole Quantity | 4 |
| Terminal Quantity | 2 |
| Connector Gender | Female |
| Terminal Gender | Male |
| Mounting Bracket Included | No |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8511300080 |
| Warranty Time UOM | MO |
| Warranty Time | 12 |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8511300080 |
| UPC | 00055644688541 |
Part Interchanges
Fits Vehicles
- Toyota T100 (1993-1994)
- Toyota Pickup (1992-1995)
- Toyota MR2 (1991-1995)
- Toyota Celica (1990-1993)
- Toyota Camry (1994-1996)
- Toyota 4Runner (1992-1995)
- Lexus SC400 (1992-1997)
- Lexus LS400 (1990-1997)
